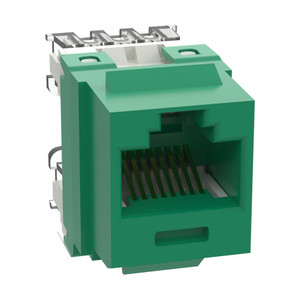

Panduit NK688MWH NetKey Cat 6 UTP Keystone Jack Module

The Panduit NK688MWH is a Cat 6 UTP keystone jack module engineered for terminating 4-pair, 22-26 AWG twisted pair cable in structured cabling installations. Part of Panduit's NetKey® system, this punchdown jack exceeds ANSI/TIA-568-C.2 Category 6 and ISO 11801 Class E requirements at swept frequencies up to 250 MHz, delivering headroom for high-density data networks, VoIP, and IP surveillance backbones. Each module ships 100% factory tested with individually serialized units, gold-plated contacts (50 microinches), and compatibility across standard keystone interfaces including NetKey faceplates, modular patch panels, and surface mount boxes. White housing.

Key Features

• Cat 6 Performance Margins — Exceeds TIA-568-C.2 Cat 6 and ISO 11801 Class E channel/component specs to 250 MHz, ensuring reliable margin for 1/2.5/5GBASE-T links and future bandwidth demands
• PoE++ Ready — Rated for 2,500 insertion cycles with IEEE 802.3af/at and proposed 802.3bt Type 3/4 (PoE++), supporting high-power IP cameras, wireless APs, and access control panels without connector degradation
• Gold-Plated Contacts — 50-microinch gold plating on contacts minimizes insertion loss and oxidation, critical for long-term performance in datacenter, campus, and industrial environments
• 100% Factory Tested & Serialized — Every jack undergoes full electrical testing before shipment and carries a unique serial number for traceability, simplifying warranty claims and post-install documentation
• Punchdown Termination — Standard 110-style punchdown blocks accept 22-26 AWG solid or stranded conductors; color-coded wiring labels support T568A/B termination schemes
• Universal Keystone Compatibility — Fits any standard keystone cutout (NetKey faceplates, Leviton QuickPort, blank patch panels, furniture grommets), eliminating vendor lock-in for faceplate and panel sourcing

Panduit's NetKey NK688MWH targets commercial integrators and datacenter installers who need consistent Cat 6 performance across large-scale deployments. The module's punchdown design simplifies field termination—integrators punch down all eight conductors onto the IDC blocks, snap the jack into the faceplate or patch panel, and move to the next drop. Gold-plated contacts and TIA-compliant geometry ensure low return loss and near-end crosstalk margins stay within spec even after hundreds of plug insertions, critical for high-density switch environments and PoE-intensive surveillance networks. The 2,500-cycle rating covers IEEE 802.3bt Type 4 (90W PoE), so a single jack can handle everything from 15W IP cameras to 60W PTZ domes or 90W high-power devices without thermal or mechanical failure.

Each jack measures 0.9" H × 1.16" L × 0.65" W (22.9 × 16.5 mm) and ships individually packaged (50 per carton). White housing matches standard Panduit and third-party white faceplates. Compatible cable types include Panduit PUP6C04BU-W (blue Cat 6 UTP), PUR6C04BU-U (riser), and PUR6C04BU-F (plenum). The module meets IEC 60603-7 and IEC 60512-99-001 mechanical interface standards, UL 1863 and CAN/CSA-C22.2 safety listings (UL File E129886), and RoHS environmental compliance—covering code requirements for commercial building installs across North America, EU, and Asia-Pacific regions.

Serialized traceability and factory test reports make the NK688MWH a fit for campus network upgrades, healthcare IECN installations, and enterprise datacenter horizontal cabling where audit trails and warranty claims require per-jack accountability. The keystone format allows staged deployment—terminate jacks in the field, label and document each drop, then snap into faceplates or angled patch panels after final inspection. For large projects, order in carton quantities (50-count) to streamline inventory and reduce per-jack cost on multi-floor or multi-building rollouts.
