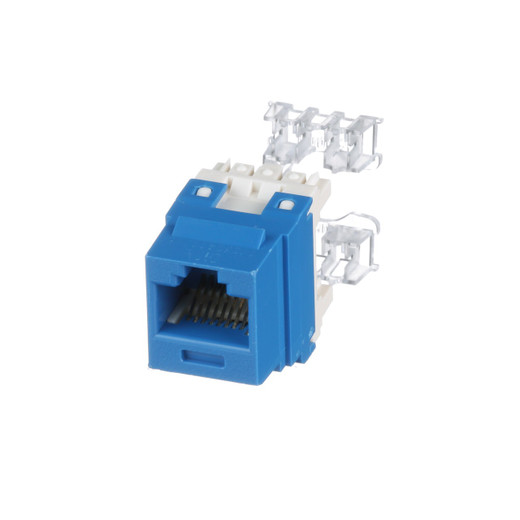

Panduit NK688MBU Cat 6 UTP RJ45 Punchdown Keystone Jack Module

The Panduit NK688MBU is a NetKey® Cat 6 UTP RJ45 punchdown keystone jack module built for structured cabling installations where long-term performance and port density matter. It terminates 4-pair, 22–26 AWG twisted pair cable and is sold individually, making it easy to stock and deploy at scale across network cabling projects. Each unit ships factory-tested to exceed ANSI/TIA-568-C.2 Category 6 requirements — that means you're not doing the validation work on the job site.

Key Features

• Exceeds Cat 6 / Class E to 250 MHz: Performance is validated at swept frequencies up to 250 MHz against ANSI/TIA-568-C.2 and ISO 11801 Class E channel and component requirements. That headroom above the 250 MHz Cat 6 floor means you're not riding the spec limit — useful when the run is close to maximum channel length or when the panel density is high.
• 50 Microinch Gold Contacts: Contact surfaces plated to 50 µin of gold resist oxidation and maintain reliable electrical continuity through 2,500 mating cycles per the rated cycle life. In environments where ports get swapped frequently — hospitality, conference rooms, hot-desking floors — this matters for long-term signal integrity.
• PoE++ Rated (IEEE 802.3bt Type 3 and Type 4): The NK688MBU is rated for use with PoE++ (802.3bt) at full Type 3 and Type 4 current loads, in addition to 802.3af and 802.3at. If you're deploying PoE switches powering PTZ cameras, 90W access points, or powered endpoints on these jacks, you're not creating a thermal or current-handling bottleneck at the jack.
• Individual Serialization: Every jack carries a unique serial number. For enterprise or government installs where structured cabling documentation and traceability are required during audits or moves-adds-changes, serialized jacks remove the guesswork from as-built records.
• 100% Factory Tested: Each unit is tested before it ships rather than sampled at the lot level. On a 50-unit pull for a single floor, that means every port has been validated — not just statistically representative ones.
• Keystone Interface Compatibility: Fits standard keystone interfaces including NetKey® Faceplates, Modular Patch Panels, and Surface Mount Boxes. If your infrastructure is already Panduit NetKey® system components, this jack drops in without adapter hardware. It also works with third-party keystone panels that accept standard keystone modules.
• RoHS Compliant and UL Listed: Meets UL 1863 and CAN/CSA-C22.2 (UL File E129886), and is RoHS compliant. These certifications are required for most commercial permit-pull installations and green-building specifications.
• Compact Form Factor: At 0.9 in. (H) × 0.65 in. (W) × 1.16 in. (L), the module fits standard keystone cutouts without bulk. Useful in high-density panels where space between adjacent ports is tight.

Integration & Compatibility

The NK688MBU integrates into any standard keystone-based infrastructure. It is explicitly compatible with NetKey® Faceplates, NetKey® Modular Patch Panels, and Surface Mount Boxes. Standard keystone frames from other manufacturers that accept 568-C.2 components will generally accept this module, though fit should be verified against the specific panel. The jack supports structured cabling systems running IEEE 802.3bt PoE++ through Cat 6 horizontal runs — termination quality at the jack is a direct factor in whether PoE++ margin is maintained across the channel. Sold in individual units; carton quantity is 50, which simplifies per-floor or per-room ordering without over-purchasing.

Frequently Asked Questions

Q: What cable gauges does the NK688MBU accept?

A: The NK688MBU is designed to terminate 4-pair, 22–26 AWG twisted pair cable. This covers standard Cat 6 horizontal cable used in commercial structured cabling installations.

Q: Is the NK688MBU rated for PoE++ (802.3bt)?

A: Yes. The NK688MBU is rated for IEEE 802.3af, 802.3at, and the proposed 802.3bt Type 3 and Type 4 (PoE++). It handles the higher current loads associated with 90W PoE++ endpoints without de-rating.

Q: Will the NK688MBU fit third-party keystone panels?

A: The NK688MBU uses a standard keystone form factor and is compatible with Panduit NetKey® Faceplates, Modular Patch Panels, and Surface Mount Boxes. Most third-party panels that accept standard keystone modules will accept this jack, but verify dimensions against your specific panel before ordering in bulk.

Q: What performance standard does the NK688MBU meet?

A: It exceeds ANSI/TIA-568-C.2 Category 6 and ISO 11801 Class E channel and component requirements at swept frequencies up to 250 MHz. It also meets ANSI/TIA-1096-A, IEC 60603-7, and IEC 60512-99-001.

Q: Is the NK688MBU RoHS compliant?

A: Yes. The NK688MBU is RoHS compliant and is UL Listed under UL 1863 and CAN/CSA-C22.2 (UL File E129886), meeting requirements for commercial installations.

Q: How many mating cycles is the NK688MBU rated for?

A: The NK688MBU is rated for 2,500 mating cycles, consistent with IEC 60603-7 and IEC 60512-99-001 standards.

Ted Perry

The NK688MBU is one of those components that gets specified and forgotten — until it fails or causes a channel margin issue at commissioning. The 50 microinch gold plating and 2,500-cycle rating are the specs I actually care about here: they mean this jack survives the install, the test, the MACs over a 10-year building lifecycle without introducing contact resistance that shows up as a channel failure during a TDR sweep.

Technical Highlights:

• 250 MHz Swept Frequency Validation: Factory-tested to exceed TIA-568-C.2 Cat 6 at up to 250 MHz — not just spot-checked at the minimum pass frequencies. Channels with long horizontal runs or high port density benefit from that margin.
• 802.3bt Type 3/4 Current Rating: Full PoE++ compliance means this jack doesn't become the weak link on a 90W-endpoint run. Most Cat 6 jacks are only rated to 802.3at (30W); the NK688MBU handles the full 802.3bt Type 4 load.
• Individual Serialization: Each jack carries a unique serial number — a real advantage on BICSI-documented installs or government facilities where as-built traceability is a contractual requirement, not a nice-to-have.

Deployment Considerations:

• The NK688MBU terminates 22–26 AWG only — verify your horizontal cable falls in that range before pulling. Stranded patch cable gauge is typically outside this window; this is a solid-conductor termination jack.
• Sold as a single unit; carton quantity is 50. For a 48-port floor patch panel, order in multiples of 50 to avoid partial-carton pricing complications on large projects.

This jack is the right spec for enterprise campuses, healthcare facilities, or government builds where PoE++ endpoints (PTZ cameras, 802.11ax access points, thin clients) are on Cat 6 horizontal runs and long-term cabling documentation is a project deliverable.
