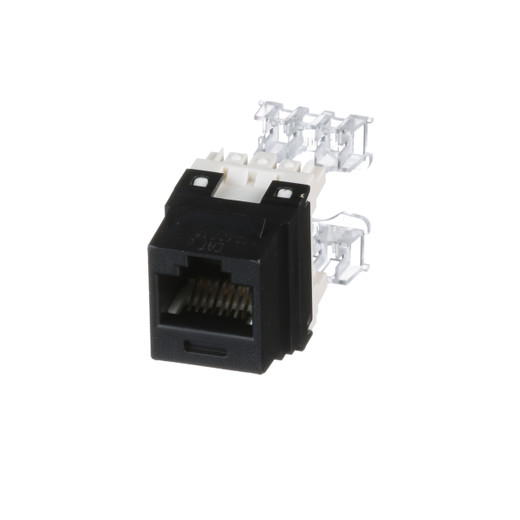

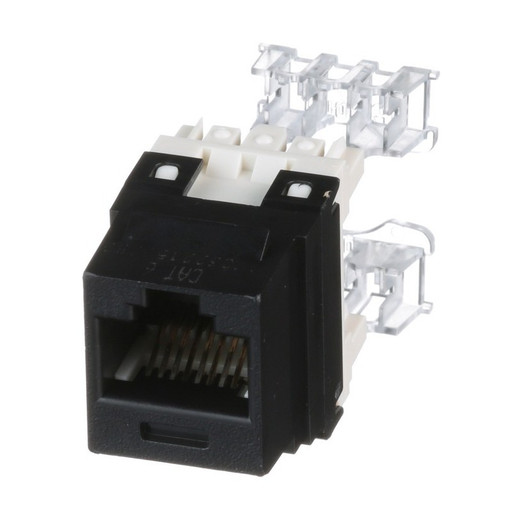

Panduit NK688MBL Cat 6 UTP Punchdown Keystone Jack Module, Black

Overview

The Panduit NK688MBL is a NetKey® Cat 6 UTP RJ45 punchdown keystone jack module built for structured cabling deployments where performance consistency matters across every termination point. Designed to terminate 4-pair, 22–26 AWG twisted pair cable, the NK688MBL carries 50 microinches of gold plating on its contacts — a spec that matters in high-cycle environments where cheaper tin contacts corrode and degrade link quality over time. Every unit leaves the factory 100% tested to exceed ANSI/TIA-568-C.2 Category 6 and ISO 11801 Class E requirements at swept frequencies up to 250 MHz, so you're not relying on statistical sampling to validate performance across a large install. Each jack is individually serialized, giving you a traceable audit trail — useful for warranty claims and large enterprise move/add/change documentation. If you're building out or expanding a Panduit structured cabling system, the NK688MBL integrates directly into the NetKey® ecosystem of faceplates, patch panels, and surface mount boxes.

Key Features

• 50 Microinch Gold Contacts: gold plating at this thickness resists oxidation and wear far longer than standard tin or flash-gold alternatives — relevant when you're targeting 2,500 mating cycles (the rated figure for IEEE 802.3af/at and proposed 802.3bt Type 3 and Type 4 PoE applications). In PoE++ (802.3bt) environments where connectors carry sustained elevated current, contact integrity is not cosmetic.
• 250 MHz Swept-Frequency Testing: exceeding ANSI/TIA-568-C.2 Category 6 at up to 250 MHz means the jack won't be your bandwidth bottleneck — you get margin above the Cat 6 floor, which matters when mixing generations of switches or running 10GBASE-T over short runs.
• 100% Factory Testing: every individual jack is tested before it ships, not just sampled. On a 50-unit deployment, that means every port arrives validated — reduces field troubleshooting when a link fails certification test and you need to isolate the connector vs. the cable.
• Individual Serialization: each module carries a unique serial number, enabling per-port traceability in structured cabling documentation and simplifying warranty or compliance reporting in enterprise and government facilities.
• 22–26 AWG Termination Range: compatible with the full range of solid and stranded Cat 6 cable gauges commonly stocked by cabling contractors. No need to verify AWG before ordering for standard commercial cabling runs.
• RoHS Compliant: meets RoHS and carries UL 1863 / CAN/CSA-C22.2 listing (UL File E129886), covering requirements for both US and Canadian commercial installations. Useful if your project specs call out UL-listed components.
• IEC 60603-7 and IEC 60512-99-001 Compliance: international connector standards compliance matters on multinational enterprise projects or any deployment that will be audited against ISO 11801 Class E channel requirements.

Integration & Compatibility

The NK688MBL is designed to seat into any keystone-format interface and is explicitly compatible with the NetKey® faceplate and patch panel ecosystem. Verified compatible form factors include NetKey® Faceplates, Modular Patch Panels, and Surface Mount Boxes. For network infrastructure deployments pairing these jacks with high-density patch panels, the 50-unit carton quantity makes procurement straightforward for full-rack builds. If you're spec'ing a structured cabling project alongside IP cameras or access control endpoints, this jack handles PoE++ (802.3bt) Type 3 and Type 4 power levels — the contacts and construction are rated for the current loads associated with 90W PoE++, not just the 15W 802.3af baseline. For cabling planners reviewing PoE power budgets, the 2,500-cycle contact rating with 802.3bt is the spec to reference when documenting connector suitability for high-power PoE endpoints. Compatible replacement/equivalent references include MX6-K01, C6CJAKU012, and UNJ600-BK from competing lines.

What's in the Box

• 1x Panduit NK688MBL NetKey Cat 6 UTP RJ45 Punchdown Keystone Jack Module (Black)

Frequently Asked Questions

Q: What cable gauges does the NK688MBL terminate?

A: The NK688MBL terminates 4-pair, 22–26 AWG twisted pair cable, covering the full range of standard solid and stranded Cat 6 cable used in commercial installations.

Q: Is the NK688MBL rated for PoE++ (802.3bt) deployments?

A: Yes. The NK688MBL is rated for 2,500 cycles with IEEE 802.3af, 802.3at, and the proposed 802.3bt Type 3 and Type 4 standards, making it suitable for high-power PoE++ endpoints.

Q: What performance standards does the NK688MBL exceed?

A: It exceeds ANSI/TIA-568-C.2 Category 6 and ISO 11801 Class E Channel and Component Requirements at swept frequencies up to 250 MHz. It also meets ANSI/TIA-1096-A, IEC 60603-7, and IEC 60512-99-001.

Q: What faceplates and panels is the NK688MBL compatible with?

A: The NK688MBL is compatible with Panduit NetKey® Faceplates, Modular Patch Panels, and Surface Mount Boxes. It fits any standard keystone interface.

Q: Is the NK688MBL RoHS compliant and UL listed?

A: Yes. The NK688MBL is RoHS compliant and carries UL 1863 and CAN/CSA-C22.2 listings under UL File E129886, covering both US and Canadian commercial installation requirements.

Q: Does the NK688MBL come individually serialized?

A: Yes. Each jack module is individually serialized, providing per-port traceability for structured cabling documentation, warranty tracking, and compliance audits.

James Everett

The NK688MBL is the termination point I spec when a project carries explicit PoE++ (802.3bt) Type 3 or Type 4 endpoints — the 2,500-cycle rating with elevated-current PoE is printed in the standards compliance block, not inferred. That matters when you're deploying 60W or 90W devices like multi-sensor cameras or high-power access control readers and you need documentation that the connector itself is rated for the current load, not just the cable.

Technical Highlights:

• 50µin Gold Contacts: at 50 microinches, gold plating outlasts flash-gold (typically 3–10µin) by a wide margin in both corrosion resistance and wear — meaningful on ports that will be re-patched dozens of times over a building's cabling lifecycle.
• 250 MHz Tested Performance: factory-swept to 250 MHz exceeding TIA-568-C.2 Cat 6 — leaves margin for the jack to remain the non-limiting component if switch ports or cable plant are later upgraded.
• Individual Serialization: each unit ships with its own serial number, which satisfies the traceability requirement on government, healthcare, and data center projects that audit cabling infrastructure at the component level.

Deployment Considerations:

• Verify your punch-down tool is set for 110-style termination before installation — the NetKey® keystone format uses standard 110 IDC, but using an incorrect blade will damage the insulation displacement contacts and void the performance rating.
• The 22–26 AWG range covers solid Cat 6 cable reliably, but if your cabling plant uses 23 AWG solid (common in commercial structured cabling), seat the cable fully into the IDC slots before punching — partial seating is the leading cause of marginal near-end crosstalk (NEXT) failures on Cat 6 field tests.

For enterprise campus deployments or commercial security systems where the horizontal cabling will carry mixed PoE++ and data traffic to IP cameras, access readers, and VoIP endpoints simultaneously, the NK688MBL's combination of 100% factory testing, individual serialization, and verified 802.3bt contact ratings gives you a documentable, audit-ready termination component — not just a commodity jack.
