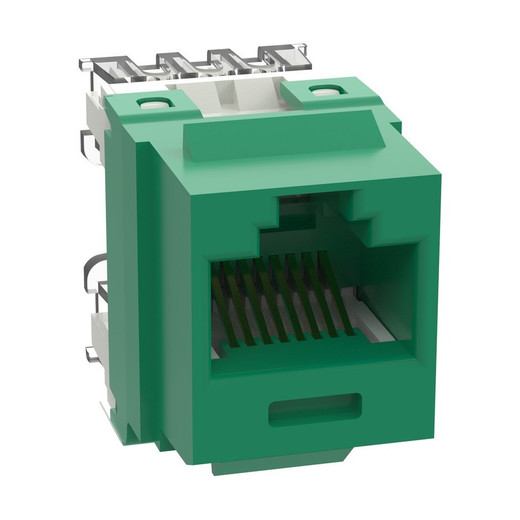

Panduit NK688MGR NetKey Cat 6 Punchdown Keystone Jack Module - Green
The Panduit NK688MGR delivers Cat 6 performance in a color-coded keystone form factor designed for commercial structured cabling installations. Individual unit serialization supports asset tracking and documentation requirements in enterprise networks, data centers, and multi-tenant buildings. The green jacket enables rapid circuit identification in patch panels and wall plates carrying voice, data, and PoE++ devices. Factory-tested to exceed ANSI/TIA-568.2-D channel requirements, this module terminates 22-26 AWG twisted pair cable and supports IEEE 802.3bt Type 3/4 power delivery—critical for PTZ cameras, access points, and PoE lighting on the same cable plant.
Key Features
- Cat 6 UTP performance exceeding ANSI/TIA-568.2-D and ISO 11801 standards
- 50 microinches of gold plating on contacts for superior signal integrity and corrosion resistance
- Individual serialization for asset management and infrastructure documentation
- IEEE 802.3bt Type 3/4 (PoE++) support—delivers up to 90W for high-power devices
- 2,500+ connection cycle rating for high-traffic patch applications
- Green housing for color-coded circuit identification in multi-service environments
- 110-style punchdown termination for 22-26 AWG solid or stranded cable
- UL 2043 plenum rated and RoHS compliant
- Compatible with NetKey faceplates, modular patch panels, and surface mount boxes
Each NK688MGR is 100% factory tested before shipment, with contacts rated for 2,500 connection cycles—double the IEC 60603-7 minimum. The 50-microinch gold plating maintains low insertion loss and return loss across the Cat 6 frequency range (1–250 MHz), even in high-humidity or coastal environments where oxidation degrades copper contacts. The 110-style punchdown block accepts both solid and stranded conductors from 22 to 26 AWG, accommodating field-terminated patch cords and permanent link cable without adapters. Individual unit serialization—a feature often omitted in commodity jacks—assigns a unique alphanumeric identifier to each module, simplifying MAC tracking in DCIM systems and ensuring traceability for warranty claims or compliance audits.
The green housing integrates into color-coding schemes used in healthcare (nurse call or telemetry), hospitality (guest data vs. PMS), and industrial facilities (production network vs. office network). PoE++ support (IEEE 802.3bt Type 3/4) allows the same Cat 6 cable plant to deliver up to 90W to PTZ cameras with heaters, 802.11ax access points, and LED workstation lighting, reducing home-run count and eliminating power injectors. NetKey compatibility ensures the jack fits standard single-gang boxes, modular patch panels (24/48-port), and surface mount boxes without proprietary adapters. In renovation projects where wall plates are already populated with NetKey blanks, the NK688MGR snaps in without removing the faceplate from the wall. UL 2043 plenum rating permits installation in air-handling spaces without conduit, and RoHS compliance satisfies procurement requirements in California, EU, and federal contracts.
Panduit ships the NK688MGR in 50-unit cartons, reducing per-jack cost on multi-floor retrofits and new construction. The combination of serialization, PoE++ certification, and 2,500-cycle contact life separates this module from generic keystone jacks that lack traceable testing and fail prematurely in high-churn environments. For integrators building Cat 6 infrastructure supporting IP surveillance, access control, and converged networks, the NK688MGR provides the performance headroom and documentation support required in professional installations.
