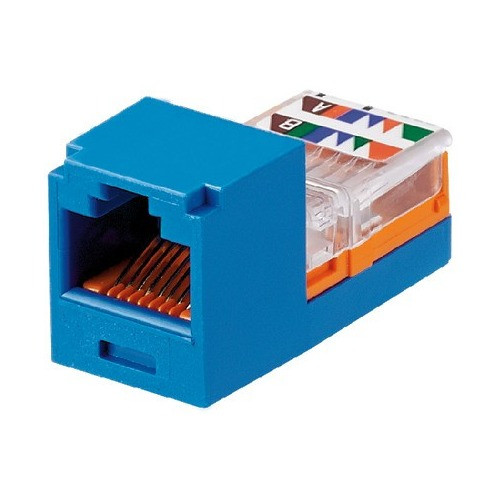

Panduit CJ588BUY Cat 5e Keystone Jack Module

Panduit CJ588BUY Mini-Com Cat 5e UTP RJ45 Leadframe Jack Module

The Panduit CJ588BUY is a Mini-Com Cat 5e UTP jack module engineered for reliable termination of 4-pair, 22-24 AWG twisted pair cable in structured cabling installations. Featuring leadframe contact architecture with 50 microinch gold plating, this module delivers verified performance for commercial network deployments, PoE-powered access control endpoints, and IP surveillance infrastructure. Factory tested for continuity and compliant with ANSI/TIA-568-C.2 Category 5e standards, the CJ588BUY integrates into Panduit's universal Mini-Com mounting system — compatible with modular patch panels, surface-mount boxes, and faceplates across office, datacenter, and industrial environments. Blue housing supports structured color-coding for port identification in multi-service installations.

Key Features

• Leadframe contact design with 50 microinch gold plating for low insertion loss and long-term reliability
• 100% factory continuity testing — every module ships verified, eliminating field troubleshooting from manufacturing defects
• IEEE 802.3af and 802.3at PoE compliant — supports up to 25.5W (PoE) and 51W (PoE+) for IP cameras, access points, and VoIP phones
• Tool-less termination with integrated wire management — 110-style punchdown accepts 22-24 AWG solid or stranded conductors
• Universal Mini-Com mounting compatibility — fits Panduit modular patch panels, faceplates, and surface-mount boxes without adapters
• Exceeds ANSI/TIA-568-C.2 Category 5e and ISO/IEC 11801 Class D channel and component requirements at swept frequencies 1-100 MHz
• Blue housing for structured color-coding — supports port identification schemes (data, voice, surveillance, access control)
• RoHS compliant and UL 1863 listed for code-compliant installations

The CJ588BUY's leadframe contact architecture uses precision-stamped phosphor bronze contacts plated with 50 microinches of gold over nickel underplate. This plating system resists oxidation and maintains low contact resistance across the operating temperature range, critical for Gigabit Ethernet signal integrity and PoE DC current delivery. The jack's 110-style termination block includes color-coded wire guides for both T568A and T568B wiring schemes, and the leadframe design clamps conductors without requiring impact tools — reducing installer fatigue during high-density patch panel builds. Panduit's factory testing process verifies pin-to-pin continuity and contact resistance before packaging, catching manufacturing anomalies that would otherwise surface as intermittent link failures in production networks. The module's compact 0.62-inch width allows 48-port density in a 1U patch panel, matching the port count of enterprise switches without sacrificing accessibility.

In deployment, the Mini-Com mounting system simplifies multi-trade coordination. A site deploying IP surveillance across 12 IDFs can stock a single SKU of blank patch panels and populate them with blue CJ588BUY modules for camera drops, orange modules for access control, and white modules for data — maintaining visual distinction without pre-ordering panel configurations months ahead of rough-in. The keystone form factor supports field changes: if a camera port gets repurposed for a wireless AP, the installer swaps the module in under 60 seconds without disrupting adjacent circuits. PoE compliance to 802.3at means the termination supports 51-watt budgets for PTZ cameras and multi-radio access points without voltage drop concerns — the gold-plated contacts maintain sub-100-milliohm DC resistance per contact pair, keeping I²R losses negligible across 100-meter cable runs. Package quantities of 1 module (with 50-unit cartons available) support both retrofit jobs and new-construction volume deployments.

Standards compliance spans ANSI/TIA-568-C.2 Category 5e (component and channel), ISO/IEC 11801 Class D, IEC 60603-7 (8P8C modular connector), and ANSI/TIA-968-A (network protection). UL 1863 listing covers safety requirements for communication circuit accessories. RoHS compliance ensures the module meets environmental restrictions for lead, mercury, and other hazardous substances in electronic equipment. The CJ588BUY is engineered for integrators who need verified Cat 5e performance, field-proven PoE handling, and modular flexibility in patch panel builds — where factory testing eliminates truck rolls and universal mounting supports last-minute port reconfigurations without panel swaps.
