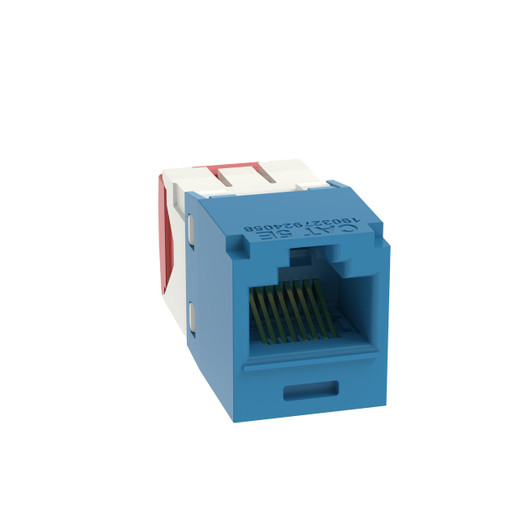

Panduit CJ5E88TGBU-24 Cat 5e RJ45 Jack Module

Overview

The Panduit CJ5E88TGBU-24 is a Cat 5e UTP RJ45 TG-style jack module designed for terminating 4-pair, 22-26 AWG twisted pair cable. This blue module is 100% factory tested for continuity and features contacts plated with 50 microinches of gold for superior performance. It integrates seamlessly with Panduit Mini-Com Modular Patch Panels and Faceplates, providing a reliable termination point for network infrastructure.

Compatibility

This jack module is compatible with Panduit Mini-Com Modular Patch Panels and Faceplates. It supports IEEE 802.3af, 802.3at, and 802.3bt Type 3 and Type 4 Power over Ethernet (PoE++) standards, ensuring it can handle the power requirements of modern network devices without degradation. It exceeds channel and component requirements of ANSI/TIA-568.2-D and ISO 11801 standards for Cat 5e performance.

Installation Notes

Each module is designed for termination using standard TG-style tools. The gold-plated contacts ensure reliable connections over 2500 cycles. The module meets UL 1863 and UL 2043 standards, and is RoHS compliant. Its compact dimensions (0.71" H x 0.62" W) facilitate installation in high-density patch panels and faceplates.
