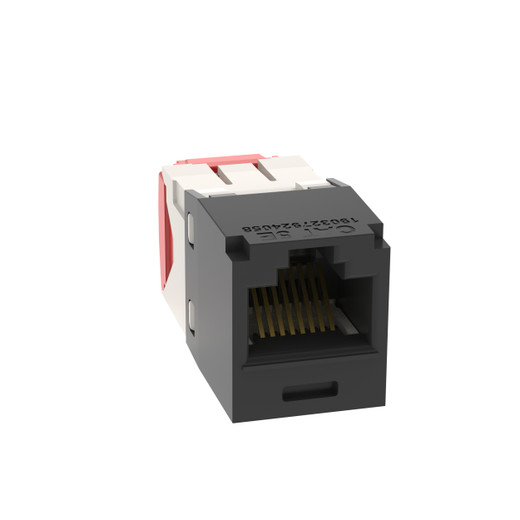

Panduit CJ5E88TGBL-24 Mini-Com Cat 5e UTP RJ45 Jack Module 24-Pack
The Panduit CJ5E88TGBL-24 delivers field-proven Cat 5e termination performance in a contractor-efficient 24-pack format designed for multi-drop voice, data, and PoE installations across commercial buildings, hospitality properties, and office build-outs. Each Mini-Com TG-style jack module terminates 4-pair 22-26 AWG twisted-pair cable using Panduit's tool-optimized IDC block, factory-tested to 100% continuity before shipping. The black housing integrates into Mini-Com modular patch panels, surface-mount boxes, and Netkey faceplates without adapter plates, enabling consistent aesthetic and simplified inventory management when deploying mixed voice/data endpoints. Contacts carry 50 microinches of gold plating over a nickel barrier layer to maintain sub-milliohm contact resistance through 2,500 mating cycles—three times the insertion rating of economy jacks and sufficient to survive multiple MACs (moves, adds, changes) in dynamic tenant spaces or training rooms where patch cords get swapped frequently.
Key Features
- Cat 5e performance exceeding ANSI/TIA-568.2-D and ISO 11801 component requirements for Gigabit Ethernet and 10/100 links
- Supports IEEE 802.3af (15.4W PoE), 802.3at (30W PoE+), and 802.3bt Type 3/Type 4 (60W/100W PoE++) power delivery without derating
- 50 microinches gold plating over nickel barrier rated for 2,500 connection cycles in commercial environments
- TG-style termination accepts 22-26 AWG solid or stranded conductors with Panduit PS5688T or compatible punch-down tools
- 24-pack contractor quantity reduces per-port cost and minimizes reorder cycles on mid-sized installations
- Universal Mini-Com form factor fits all Panduit Netkey faceplates, patch panels, and surface-mount boxes without adapters
- UL 2043 plenum rating and UL 1863 Listed for installation in air-handling spaces and commercial fire-rated assemblies
- 100% factory continuity testing ensures pin-to-pin integrity before packaging
- Black housing blends into dark faceplates and maintains color-coding consistency when deploying alongside CJ5E88TG series in other colors
- RoHS-compliant construction meets federal and state e-waste disposal regulations
The CJ5E88TGBL-24 uses Panduit's color-coded TG (telecommunications grade) IDC block, which orients conductors in the T568A/B wiring sequence without requiring the installer to cross pairs manually. Each contact slot is laser-etched with pair identification (White-Orange/Orange, White-Green/Green, etc.) visible under typical worksite lighting, reducing mis-wires during high-volume punchdowns. The 110-style termination geometry maintains pair twist within 0.5 inches of the IDC, preserving differential-mode balance and minimizing near-end crosstalk (NEXT) contribution at the jack interface. Contacts are stamped from phosphor bronze with a nickel barrier layer and 50 microinches of gold plating on the mating surface; this stackup maintains contact resistance below 20 milliohms even after 2,500 insertion cycles, preventing intermittent link drops in conference rooms, hotel guest rooms, or desk positions where users frequently swap patch cords. The module housing is impact-modified polycarbonate rated to UL 94V-0 flammability and carries UL 2043 plenum certification, allowing installation in drop-ceiling plenums and air-return spaces without conduit or fire-stop treatment in jurisdictions enforcing the International Building Code or NFPA 90A.
All eight contacts support DC continuity for Power over Ethernet delivery across the full 802.3bt spectrum, including Type 3 (4-pair 60W) and Type 4 (4-pair 100W) power classes used by PTZ cameras, 802.11ax access points, and IP video intercoms. Panduit rates the module to 2,500 connection cycles under PoE load, meaning the jack maintains contact force and resistance stability even when deployed in lecture halls, meeting rooms, or field offices where patch cords get plugged and unplugged weekly. The Mini-Com form factor is dimensionally identical across Panduit's copper and fiber jack families, allowing mixed-media faceplates and patch panels to be populated from a single footprint; an installer can stock CJ5E88TG copper jacks, CJFME fiber adapters, and CJBLU blank inserts in the same tool bag and snap any combination into Netkey frames without carrying adapter brackets or learning multiple mounting procedures. The 24-pack carton is serialized with lot and date codes printed on the box flap, simplifying project documentation and warranty claims when installed as part of a certified Panduit cabling system backed by the Pan-Net 20-year application assurance warranty.
The CJ5E88TGBL-24 meets ANSI/TIA-568.2-D Category 5e component specifications through 100 MHz, exceeds ISO 11801 Class D channel requirements, and is tested to IEC 60603-7 mechanical and environmental standards. UL 1863 Listing and UL 2043 plenum rating satisfy National Electrical Code Article 800 and International Building Code Chapter 8 requirements for communications cabling in commercial occupancies. The 24-pack format reduces per-port material cost by approximately 18% compared to singles, and the 240-piece master carton aligns with typical floor-by-floor quantities in 50,000–100,000 sq ft office buildings or 80–120 room hospitality projects, minimizing shipping events and inventory holding cost for integrators managing multiple concurrent jobs.
