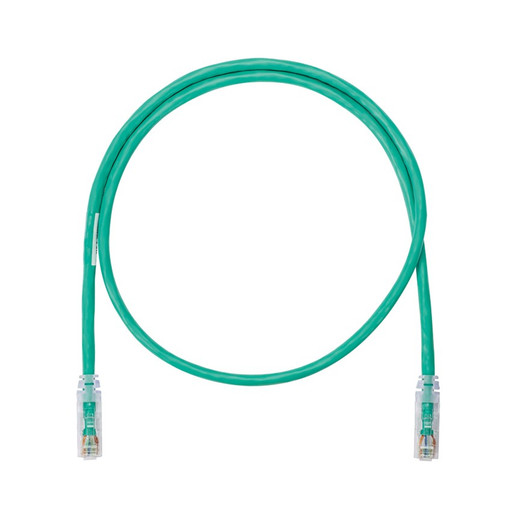

Panduit NK6APC6GR Cat6A 6ft Patch Cord

Panduit NK6APC6GR NetKey Cat6A Patch Cord

The Panduit NK6APC6GR is a 6-foot Category 6A patch cord engineered for high-performance 10GBASE-T Ethernet, wireless infrastructure backhaul, and Power over Ethernet deployments in commercial security and enterprise networks. Built with 26 AWG stranded copper conductors and CM/LSZH jacket, this green UTP cable exceeds ANSI/TIA-568-C.2 Category 6A channel performance while maintaining the flexibility and bend radius needed for dense patch panel and switch installations. The stranded construction handles repeated flexing without conductor fatigue—critical for cameras, access points, and networked devices subject to installation stress or future moves.

Key Features

• 10GBASE-T Ready: Exceeds Category 6A channel requirements for full 10 Gbps Ethernet over copper to 100 meters, future-proofing surveillance NVR uplinks and backbone connections.
• PoE++ Compliant: Supports IEEE 802.3af/at and proposed 802.3bt Type 3/4 applications, delivering up to 90W+ for high-power PTZ cameras, multi-sensor arrays, and PoE-powered edge analytics appliances without voltage drop.
• CM/LSZH Dual Rating: Low-smoke zero-halogen jacket meets both CM plenum-alternative and international LSZH fire standards—ideal for mixed-occupancy buildings, air-handling spaces, and global deployments where toxic smoke is a life-safety concern.
• Stranded Conductor Flexibility: 26 AWG stranded copper construction provides superior bend tolerance and termination reliability compared to solid-core patch cables, reducing installation time and connector seating failures.
• Color-Coded Circuit Management: Green jacket simplifies VLAN segmentation, camera-network identification, or logical circuit grouping in multi-tenant or converged IP/IT infrastructure.
• Factory-Terminated RJ45 Plugs: Precision-molded modular plugs ensure 360° connector shielding contact and eliminate field-termination variability that degrades link performance or creates intermittent faults.

Category 6A cabling is the minimum standard for new surveillance installations supporting 4K/8MP cameras, multi-channel NVRs, and PoE-powered edge devices. The NK6APC6GR delivers 500 MHz bandwidth with alien crosstalk suppression, preventing inter-pair interference when bundled with other high-speed cables in congested pathways. This headroom matters when running 4K video streams alongside access control, intercom, and building-automation traffic over a converged physical layer—you avoid the packet loss and retransmit overhead that plague marginal Cat5e or Cat6 links under load. Panduit's NetKey line is built to ANSI/TIA-1096-A plug performance standards, ensuring positive latch engagement and insertion-loss consistency across the installed base.

The stranded-conductor design trades a small insertion-loss penalty (typically 0.2 dB at 500 MHz) for dramatically improved handling during installation and service. Solid-core patch cords crack internally when bent sharply or repeatedly pulled through cable managers; stranded conductors flex without fracture. For integrators managing hundreds of camera endpoints across a campus or high-rise, this durability reduces truck rolls and connector rework. The CM/LSZH jacket is a practical choice when local code doesn't mandate plenum (CMP) but fire-marshal or tenant requirements prohibit PVC combustion products—common in schools, hospitals, transportation hubs, and European projects. The dual rating eliminates the need to stock separate CM and LSZH SKUs, simplifying inventory and field logistics.

Compliance is comprehensive: cULus listed under UL 1863 and CAN/CSA C22.2, RoHS compliant for restricted-substance regulations, and tested to IEC 60603-7 modular-connector mechanical standards. The cable exceeds ISO 11801 Class EA requirements, ensuring global project acceptance and interoperability with European and Asia-Pacific equipment. For bidirectional PoE (camera + switch), the conductor gauge and twist-pair geometry maintain voltage regulation within IEEE 802.3bt limits, preventing brownouts on high-draw devices at the far end of the link. Six-foot length suits typical rack-to-patch or patch-to-endpoint runs without excess slack that invites snagging or airflow blockage in enclosed rack spaces.

Eden Phillips

Senior Specialist – Networking & PoE Infrastructure
