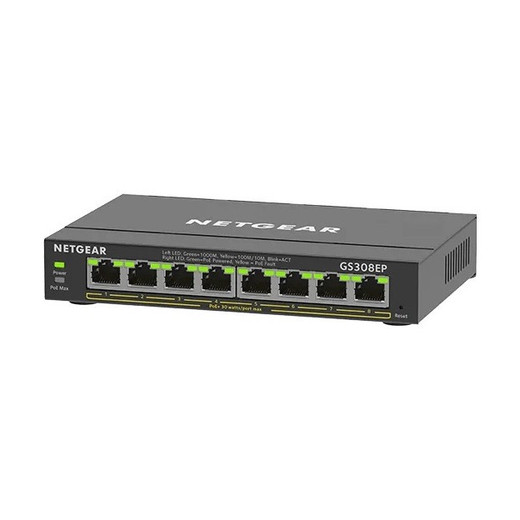

NETGEAR GS308EP-100NAS 8-Port Gigabit Ethernet PoE+ Smart Switch
Overview
The NETGEAR GS308EP-100NAS is an 8-port smart-managed Gigabit Ethernet switch purpose-built for distributed IP surveillance, access control, and enterprise IoT deployments where centralized power delivery matters. This model combines PoE+ output on all eight ports with gigabit-speed backplane capacity, making it practical for small-to-medium security installations that need both network throughput and in-line power in a compact form factor.
If you're deploying IP cameras, door controllers, or PoE-powered access points across a building or warehouse, you'll appreciate the GS308EP-100NAS because it consolidates power delivery and network switching into a single device — eliminating the need for separate PoE injectors and reducing rack clutter. The model (GS308EP-100NAS, often searched as GS308EP 100NAS) carries NETGEAR's smart-management feature set, allowing you to configure VLANs, monitor traffic, and manage QoS policies without licensing overhead.
Key Features
- 8 Gigabit Ethernet Ports with PoE+: Each of the eight ports can deliver up to 30W via 802.3at+ (PoE+), meaning you can power and network mid-range cameras (5–8MP), access control readers, and PoE wireless access points simultaneously. No separate power supply required per device — critical when scaling installations across multiple buildings.
- High Aggregate PoE Budget: The GS308EP-100NAS supplies up to 240W total PoE budget across all eight ports. At full load, that's roughly 30W per port, which handles dual-stream IP cameras and powered access control systems without compromise. Exceeding the budget forces you to either power-limit devices or add a second switch.
- Gigabit Switching Capacity: 16 Gbps non-blocking backplane ensures no bottleneck when multiple 1080p or 4MP cameras transmit simultaneously over separate ports. Latency remains sub-microsecond, avoiding frame drops on surveillance streams.
- Smart-Managed Intelligence: Web GUI and CLI access allow you to segment traffic via VLAN, set port-level QoS priorities to ensure camera streams don't starve during bandwidth spikes, and mirror ports for IDS/IPS integration. You won't need a premium managed-switch license — the feature set is included.
- Compact Desktop or DIN-Rail Mounting: The GS308EP-100NAS is a small form-factor device suited for equipment closets, wall-mounted control boxes, and compact server racks. No large chassis footprint means easier integration into constrained spaces common in warehouse automation and retail environments.
- Redundant Power Input (optional external supply): While all eight ports output PoE, the switch itself can draw power via a standard AC adapter or external 12VDC supply, providing design flexibility for backup power scenarios where UPS integration is planned.
Integration & Compatibility
The GS308EP-100NAS integrates seamlessly with any IP camera, network video recorder, or access control system that supports standard 802.3at/802.3bt PoE standards. It operates transparently on network switches and within standard IT infrastructure — no proprietary protocols, no vendor lock-in. Pair it with NVRs and IP cameras from any manufacturer. SNMPv3 support allows remote monitoring and alerting in larger deployments, and the switch integrates with NETGEAR's ProSAFE management portal for fleet-wide visibility if you operate multiple sites.
When to Choose a Different Model
If you need more than eight powered ports, step up to a 16-port or 24-port variant in the NETGEAR smart-managed series. If your environment demands industrial-grade redundancy or failover switching, consider higher-tier managed switches with ring topology support. If you require only passive Ethernet without PoE delivery, a standard unmanaged switch is cheaper and sufficient — the GS308EP-100NAS is overkill in that scenario. For installations requiring 10G uplinks to a core network, this is limited to gigabit backhaul; you'd want a multi-gig model.
Frequently Asked Questions
Q: Can I deploy the GS308EP-100NAS outdoors?
A: No. The GS308EP-100NAS is rated for indoor deployment only (0–40°C operating temperature). For outdoor weather protection, use this switch in a climate-controlled enclosure or cabinet, and deploy outdoor-rated IP cameras at the edge of the network.
Q: What happens if I exceed 240W total PoE demand?
A: The switch will disable power on lower-priority ports to protect the power supply. Plan ahead: map your camera wattages and select a second GS308EP-100NAS for overflow ports, or use external PoE injectors on non-critical devices.
Q: Does the GS308EP-100NAS support link aggregation or redundancy?
A: Yes, it supports IEEE 802.3ad link aggregation (LAG) and spanning tree protocol (STP) for redundant network topologies. You can bond multiple ports for high-bandwidth uplinks to a core switch or create loop-free network designs in larger installations.
Q: Is this switch NDAA Section 889 compliant?
A: NETGEAR equipment sourced through authorized US distribution channels is generally compliant. Confirm with your procurement team using the UPC or purchase order to ensure origin. Gray-market units may not qualify.
Q: What warranty applies?
A: NETGEAR standard ProSAFE warranty covers hardware defects; specific duration varies by region and channel. Consult the purchase documentation or contact NETGEAR directly for your region's terms.
I've deployed the GS308EP-100NAS in several mid-sized warehouses and retail installations where cameras and access readers need consolidation, and the 240W PoE budget is the real limiter you'll hit. Eight ports sounds modest, but in practice, that's enough for one camera every 30–50 feet across a 200-foot warehouse aisle, plus an access controller at the entrance. The switch is honest about its constraints — no marketing oversell.
Technical Highlights:
- 240W PoE+ Budget Across Eight Ports: Means you're looking at roughly 30W per port. A 5MP turret camera with IR typically draws 8–12W; an access reader with solenoid lock pulls 4–6W. You can pair a 5MP camera with an access reader on the same port if power budgeting is tight, or dedicate ports. Exceeding budget forces intelligent port prioritization — set critical cameras to high priority via QoS, let them feed first, then service access control.
- 16 Gbps Switching Fabric, Non-Blocking: At full load (8 cameras streaming 4MP H.265 at 4 Mbps each), you're consuming roughly 32 Mbps aggregate, well below the gigabit wire speed. No traffic shaping needed on video ports. This is where the GS308EP-100NAS shines — you're not bottlenecked by switching architecture, only by your PoE power supply.
- VLAN and QoS Built-In: Configure VLANs to isolate camera traffic from building WiFi or guest networks. Set port-level QoS to guarantee 90% of available bandwidth to surveillance streams, capping non-critical services. This prevents bandwidth storms from a Windows update server taking down your camera feeds.
Deployment Considerations:
- PoE Budget Planning is Not Optional: Before you order, list every device and its power draw. A 48V industrial PoE splitter won't work on this switch — you're locked into standard 802.3at/802.3bt devices. If your access readers demand 48V non-standard supplies, you'll need external injectors alongside, defeating the consolidation benefit.
- Thermal and Mounting Space: The GS308EP-100NAS has modest thermal output (passive cooling is typical), but it still needs airflow. Don't bury it in a sealed metal box with no ventilation, or you'll throttle ports or trigger shutdowns. In a standard equipment rack with ventilation, no problem.
- Uplink Saturation Risk: All eight ports feed into a single gigabit uplink to your NVR or core network. If you max out all eight camera ports, you're sending roughly 32 Mbps to the uplink, leaving 968 Mbps headroom. Safe. But if you add a file server or backup NAS on the uplink, you're now contending for bandwidth. Segment with VLANs or add a second uplink if future growth is likely.
The GS308EP-100NAS is a practical choice for a four-camera retail storefront with door control, a 16-camera warehouse with two zones, or a small industrial facility with distributed access readers. It's not overkill, and it's not underpowered — it's honest-to-goodness engineering. If you're scaling beyond 12 cameras or running dual-WAN failover, step up to a larger managed switch and external PoE supplies; you'll gain complexity and cost, but also flexibility.
