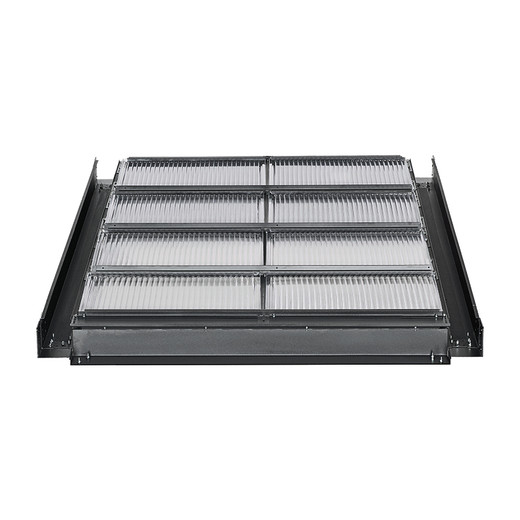

Panduit CUCGF04DPW1 Net-Contain Ceiling Grid Section — 1200mm Aisle Containment
Overview
The Panduit CUCGF04DPW1 is a 1200 mm (approximately 50.46 inches wide) ceiling grid section designed as part of the Panduit Net-Contain universal aisle containment system for data center thermal management. This white PVC/vinyl ceiling grid panel works in conjunction with a dropped ceiling to support fire suppression continuity while sealing the hot or cold aisle — a critical requirement in any raised-floor or open-ceiling data center environment where mixing of hot exhaust and cold supply air is driving up cooling costs or pushing PUE beyond acceptable limits.
If you are specifying or expanding a hot aisle or cold aisle containment deployment, this ceiling grid section fills the overhead plane of the containment envelope. Without a properly fitted ceiling grid, the containment system loses its thermal boundary at the top — negating much of the airflow separation you are paying for in cooling infrastructure.
Key Features
- 1200 mm (50.46 in) Panel Width: The 1281.6 mm footprint aligns with standard 1200 mm rack-row spacing in modern data centers. Ordering to row length rather than rounding up or cobbling mismatched sections reduces gaps that leak conditioned air and degrade containment efficiency. Check your row dimension against this nominal width before finalizing your panel count.
- Ultra-Low Profile at 8.6 mm (0.34 in) Height: The near-flat cross-section means this ceiling grid section integrates flush against drop-ceiling tile grids or overhead structure without requiring additional clearance. In tight above-ceiling spaces common in co-location facilities, that shallow profile prevents interference with cable trays, lighting fixtures, and fire suppression piping.
- 24.3-Inch Overall Length: Combined with the 50.46-inch width, this panel covers a defined overhead section of the aisle. Measure your aisle run before ordering — you will likely need multiple CUCGF04DPW1 panels to cover a full row, and consistent panel count per project simplifies procurement and installation scheduling.
- PVC/Vinyl Construction: Plastic construction avoids corrosion in the humid underfloor or high-airflow overhead environments found in active data centers. Unlike metal grid alternatives, PVC/vinyl will not conduct stray voltage and requires no grounding considerations during installation — one fewer item on your commissioning checklist.
- White Color Finish: The white finish improves light reflectivity inside a cold-aisle containment enclosure, reducing the need for supplemental aisle lighting during maintenance windows. It also provides a clean visual indicator — discoloration or debris accumulation on the ceiling grid is immediately apparent, supporting routine inspection protocols.
- RoHS-Compliant Materials: RoHS compliance means the materials meet EU hazardous substance restrictions, relevant for any deployment that exports equipment documentation to European clients, or for facilities subject to WEEE disposal requirements at end-of-life.
- Designed for Fire Suppression Integration: According to Panduit's product documentation, this ceiling grid section works in conjunction with a dropped ceiling for fire suppression in the data center — meaning the panel geometry and material are intended to preserve the fire compartmentalization that FM-200, Novec, or pre-action wet systems depend on. Confirm with your fire suppression vendor that the containment ceiling approach is compatible with your installed suppression system before finalizing the design.
- Single-Panel Package Quantity: Ships as a single unit (package quantity: 1), making it straightforward to order exact quantities for a project without overbuying. Factor your total aisle length and any spare units needed for on-site cuts or damage replacement into your purchase order.
Integration & Compatibility
The CUCGF04DPW1 is part of the Panduit Net-Contain universal aisle containment family, which includes end panels, door assemblies, and vertical framing components. For a complete containment solution, you will need to pair this ceiling grid section with the appropriate aisle containment framing and end-of-row doors from the Net-Contain line.
Before ordering, verify compatibility with your specific row configuration — cabinet width, height, and inter-rack gap dimensions all affect which Net-Contain components are required. For deployments integrating with structured cabling or overhead cable management, plan overhead routing paths before the ceiling grid is installed, since access above the containment plane becomes restricted once the system is assembled.
The 1200 mm nominal width is consistent with standard EIA/ECA-310 and IEC 60297 rack footprint planning dimensions widely used in enterprise and co-location data centers.
What's in the Box
- 1x Panduit Net-Contain ceiling grid section, white, 1200 mm (CUCGF04DPW1)
Frequently Asked Questions
Q: What is the CUCGF04DPW1 used for?
A: The CUCGF04DPW1 is a ceiling grid section for the Panduit Net-Contain universal aisle containment system. It seals the overhead plane of a hot or cold aisle containment enclosure in a data center, working in conjunction with a dropped ceiling to support airflow separation and fire suppression continuity.
Q: What are the physical dimensions of the CUCGF04DPW1?
A: The panel measures 50.46 inches (1281.6 mm) wide, 24.3 inches long, and 0.34 inches (8.6 mm) in height — a very shallow profile designed to fit flush against drop-ceiling grid structures.
Q: What material is the CUCGF04DPW1 made from?
A: It is constructed from PVC/vinyl. This material is corrosion-resistant, non-conductive, and RoHS-compliant.
Q: How many panels come in one order of the CUCGF04DPW1?
A: The package quantity is 1 panel per unit ordered. Calculate your total aisle length and required coverage carefully before placing your order to ensure you receive the correct quantity.
Q: Does the CUCGF04DPW1 support fire suppression systems?
A: Yes — according to Panduit's product documentation, this ceiling grid section is designed to work with a dropped ceiling for fire suppression in the data center. Confirm compatibility with your specific suppression system type and local code requirements with your fire protection engineer before installation.
Q: Is the CUCGF04DPW1 RoHS compliant?
A: Yes, the CUCGF04DPW1 meets RoHS standards, as listed in the product specifications.
The CUCGF04DPW1 is one of those components that only gets attention when it is missing — once you have a containment enclosure leaking at the ceiling plane, correcting it mid-deployment is disruptive and costly. The 1200 mm panel width is the key specification here: it is sized to align with standard rack-row intervals, so a properly planned row avoids the cut-and-patch workarounds that introduce air gaps and void the thermal efficiency calculations your cooling team built the deployment around.
Technical Highlights:
- 8.6 mm Profile Height: At just under 9 mm thick, this panel clears virtually every above-ceiling obstacle I have encountered in enterprise co-lo builds — cable trays, sprinkler branch lines, and suspended lighting all typically run well above this clearance threshold.
- PVC/Vinyl, Non-Conductive: No grounding requirement during installation simplifies commissioning — one less sign-off item during infrastructure acceptance testing, and no corrosion risk in high-humidity underfloor or overhead plenum environments.
- RoHS Compliance: Useful if your facility documentation package needs to satisfy EU environmental directives or if your client's asset disposal policy requires RoHS-certified materials for end-of-life processing.
Deployment Considerations:
- Order exact quantities against your measured row length — the 1200 mm nominal width means you will need to account for any end gaps or partial-width positions at row termination points, and field-cutting PVC/vinyl is workable but adds installation time.
- Fire suppression integration is documented as a design intent for this product, but it is not a substitute for formal fire protection engineering review — your AHJ (Authority Having Jurisdiction) and suppression vendor both need to sign off on how ceiling containment interacts with your specific system activation zone geometry.
This panel is the right specification for a greenfield hot-aisle or cold-aisle containment row in an enterprise data center or multi-tenant co-location facility where row dimensions are planned to 1200 mm rack-pitch standards and overhead fire suppression is already part of the mechanical design scope.
