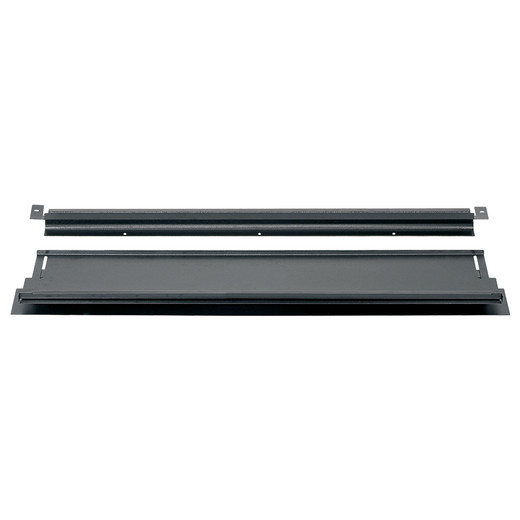

Panduit CUEORF03DPB1 Net-Contain Universal Aisle Containment Roof Section
The Panduit CUEORF03DPB1 is a PVC/Vinyl roof section for the Net-Contain™ Universal Aisle Containment system — the ceiling-level panel that closes off the top of a contained aisle row end, directing airflow where your CRAC/CRAH units can actually capture it. Designed for 900mm (35.43") wide aisles, this end-of-row panel extends up to 4" (approximately 100mm) to close dimensional gaps that occur when rack rows don't land exactly on modular spacing. If you've dealt with bypass airflow bleeding through an open aisle top, this is the component that seals it.
Aisle containment is a thermal management strategy that pays back in reduced cooling energy and more predictable server inlet temperatures. The Panduit Net-Contain line addresses both hot-aisle and cold-aisle containment configurations; the CUEORF03DPB1 is the row-end roof section that completes the enclosure at the aisle terminus. Without a properly fitted end section, containment integrity breaks down at the row boundary — hot and cold air mix, and your cooling efficiency drops accordingly.
Key Features
- 900mm (35.43") Aisle Width Coverage: Matches the standard 900mm aisle width used in most North American and European data center aisle containment deployments. Confirm your aisle dimension before ordering — this panel is sized for 900mm, not 600mm or 1200mm configurations.
- Expandable Up to 4" (≈100mm): The telescoping/expandable design accommodates real-world dimensional variance without custom fabrication. When your row end doesn't land perfectly flush, the built-in extension closes the gap rather than leaving a bypass slot that undermines the entire containment investment.
- 8.94" (227mm) Panel Height: At just under 9 inches tall, the panel is sized to integrate with standard Net-Contain overhead structure. Verify your interstitial ceiling clearance and Net-Contain frame height match before deployment — this is a fixed-height component.
- PVC/Vinyl Construction: Lightweight and non-conductive — appropriate for overhead installation in live data center environments where dropped metallic hardware is a real concern. PVC also resists the humidity swings that occur in pressurized containment aisles.
- RoHS-Compliant: Meets RoHS (Restriction of Hazardous Substances) requirements, relevant for EU deployments and enterprise sustainability compliance programs that require material declarations for all installed components.
- Single-Unit Package: Sold individually (Package Qty: 1), so you can order the exact count you need for your row-end configurations without being forced into bulk carton quantities.
Integration & Compatibility
The CUEORF03DPB1 is designed as part of the Net-Contain™ Universal Aisle Containment system. It pairs with the intermediate ceiling panels used in the universal aisle enclosure — the row-end section completes the roof structure at the aisle terminus. Before ordering, confirm compatibility with your specific Net-Contain frame model and overhead structure configuration. Panduit's aisle containment line covers both hot-aisle and cold-aisle orientations; this component's placement (roof/end section) is consistent across both, but verify the full Panduit aisle containment bill of materials for your deployment against your ceiling height and row layout.
For complete aisle containment builds, you will also need the intermediate ceiling panels, vertical end panels, and appropriate mounting hardware for your specific overhead structure. This CUEORF03DPB1 covers the roof at the row end only — it does not include side curtains, vertical panels, or the intermediate ceiling sections that span the aisle length.
Frequently Asked Questions
Q: What aisle width is the CUEORF03DPB1 designed for?
A: The CUEORF03DPB1 is sized for a 900mm (approximately 35.43") wide aisle, which is the standard aisle width in most data center row configurations. Confirm your aisle measurement before ordering.
Q: How much does the CUEORF03DPB1 extend to close dimensional gaps?
A: It is expandable by up to 4 inches (approximately 100mm), accommodating typical variance between as-built aisle dimensions and nominal row-end positions.
Q: What material is the CUEORF03DPB1 made from?
A: PVC/Vinyl — lightweight, non-conductive, and appropriate for overhead installation in live data center environments.
Q: Is the CUEORF03DPB1 RoHS compliant?
A: Yes, the CUEORF03DPB1 meets RoHS (Restriction of Hazardous Substances) standards, as noted in the product specifications.
Q: How many units come in a package?
A: The CUEORF03DPB1 is sold as a single unit (Package Qty: 1), so you order exactly the quantity you need.
Q: Does this component complete a full aisle containment enclosure on its own?
A: No. The CUEORF03DPB1 is the roof end section for the Net-Contain™ Universal Aisle Containment system. A complete enclosure also requires intermediate ceiling panels, vertical end panels, and mounting hardware appropriate for your overhead structure. Consult the full Net-Contain system bill of materials for your row configuration.
The CUEORF03DPB1 is a deceptively simple component that determines whether your containment investment actually performs. I've seen deployments where everything — curtains, intermediate panels, overhead framing — was correctly installed, but the row-end roof section was either missing or undersized, leaving a 3–4 inch gap at the aisle terminus. That gap is enough to collapse the pressure differential you're trying to maintain, especially in hot-aisle containment where you're relying on negative pressure to pull exhaust away from server inlets. The 4" extension range on this panel directly addresses the most common installation problem: as-built aisle dimensions that don't match nominal design.
Technical Highlights:
- 4" Extension Range: Covers the gap between nominal 900mm design and as-built reality without field fabrication — the single most common installation variance in contained aisle deployments.
- 8.94" Panel Height: At 227mm tall, this matches standard Net-Contain overhead framing geometry. Deviating from the matched component set introduces fitment issues that typically require custom gasketing to seal.
- PVC/Vinyl Material: Non-conductive overhead component — relevant because metallic panels in high-density aisles introduce dropped-hardware risk during maintenance. PVC stays dimensionally stable in the humidity range of a conditioned data hall.
Deployment Considerations:
- Verify your aisle width is 900mm before ordering — this panel is not adjustable to 600mm or 1200mm configurations, and ordering the wrong width means a full replacement, not a field fix.
- The CUEORF03DPB1 covers only the end roof position. Budget for intermediate ceiling panels and vertical end curtains separately; this single component does not constitute a complete row-end enclosure.
This panel is the right call for any Net-Contain Universal deployment where the row terminates against a wall, a cold-aisle door, or open floor space — specifically in facilities where as-built aisle dimensions require the 4" extension to achieve a sealed roof plane at the row end.
