Panduit CUCGF06DPW1 Net-Contain Aisle Containment Ceiling Grid Section

Overview

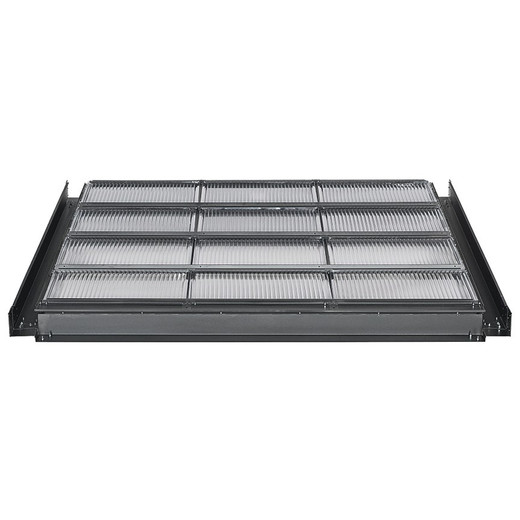

The Panduit CUCGF06DPW1 is a 6 ft (1800 mm) ceiling grid section for the Panduit Net-Contain universal aisle containment system — the ceiling panel component that closes the top of a hot or cold aisle enclosure to direct airflow into your CRAC/CRAH return path rather than letting it escape into the room. Without proper ceiling coverage, even a well-sealed row of cabinets bleeds conditioned air upward; this panel is the piece that prevents that loss at the 74-inch span.

Designed as part of Panduit's thermal management containment solution, the CUCGF06DPW1 works in conjunction with the suspended ceiling infrastructure to support fire suppression systems in the data center — a compliance-critical detail for facilities where overhead suppression must not be blocked or bypassed by containment panels. PVC/vinyl construction keeps the panel lightweight for overhead installation while meeting RoHS material standards, an important consideration for data centers operating under EU environmental compliance requirements or corporate sustainability policies.

Key Features

• 1800 mm (74.08 in) Span: covers a full 6-foot aisle width in a single panel, reducing the number of seams and alignment points compared to shorter sections — fewer joints means fewer air-leak paths at the ceiling plane.
• RoHS-Compliant PVC/Vinyl Construction: meets EU Restriction of Hazardous Substances requirements, which matters for global enterprise deployments and procurement policies that mandate compliant materials throughout the facility build-out.
• Fire Suppression Compatibility: the ceiling grid section is designed to work with suspended tile ceiling systems for fire suppression integration — not a sealed panel that blocks suppression heads, which is a code requirement in virtually every commercial data center.
• White Finish: matches standard white containment framing for a consistent, professional appearance in customer-facing or co-location environments where aesthetics alongside functionality are reviewed during audits or customer tours.
• Low Profile at 8.6 mm (0.34 in) Height: the panel itself adds less than half an inch of vertical stack — relevant in tight overhead clearance situations where ceiling-to-equipment headroom is constrained.
• 24.3 in Length: each panel covers approximately two standard cabinet widths (600 mm cabinet depth facing up) — plan your quantity based on total linear aisle footage divided by this dimension.
• Single-Unit Packaging: ships as individual panels, allowing you to order exact quantities for partial aisle builds or replacement of damaged sections without purchasing multi-pack minimums.

Integration and Compatibility

The CUCGF06DPW1 is a component within the aisle containment and thermal management category of Panduit's Net-Contain universal system. It is engineered to integrate with the broader Net-Contain framing, end caps, doors, and cable management hardware that make up a complete hot aisle or cold aisle containment enclosure. When planning a full containment deployment, ceiling grid sections like this one must be paired with the correct vertical framing, end-of-row doors, and sealing strips — verify your framing model numbers against the Net-Contain compatibility matrix before ordering ceiling panels separately.

The design accommodates suspended ceiling tile infrastructure common in raised-floor and overhead-plenum data centers. Facilities using solid drop ceilings rather than tile grids should confirm the mounting interface with Panduit's cabinet and enclosure accessories documentation prior to procurement. RoHS compliance is verified for this SKU — facilities requiring additional environmental or material certifications should request documentation from their procurement contact.

Frequently Asked Questions

Q: What is the CUCGF06DPW1 and where does it fit in an aisle containment system?

A: The CUCGF06DPW1 is a 6 ft (1800 mm) white PVC/vinyl ceiling grid section for the Panduit Net-Contain universal aisle containment system. It forms the overhead ceiling plane of a hot or cold aisle enclosure, closing the top of the aisle to force airflow through your cooling return path rather than escaping into the room.

Q: Does the CUCGF06DPW1 block fire suppression systems?

A: No. The panel is specifically designed for use with suspended tile ceilings to support fire suppression integration in the data center — it is not a solid sealed panel that would obstruct suppression heads. Confirm specific fire code compliance with your facilities/AHJ.

Q: Is the CUCGF06DPW1 RoHS compliant?

A: Yes, the CUCGF06DPW1 meets RoHS (Restriction of Hazardous Substances) material standards as documented in the product specifications.

Q: How many panels do I need for my aisle?

A: Each panel is 24.3 inches long and 74.08 inches wide (spanning the aisle). Calculate the total linear footage of your aisle and divide by 24.3 inches per panel to determine quantity. The CUCGF06DPW1 ships in single-unit packages, so you can order the exact number needed.

Q: Can the CUCGF06DPW1 be used in both hot aisle and cold aisle containment?

A: The panel is part of the Net-Contain universal aisle containment system, which is designed to support both hot aisle and cold aisle containment configurations. Confirm your specific framing and system configuration with the Net-Contain compatibility documentation.

Q: What color is the CUCGF06DPW1?

A: White (Weiß), consistent with standard Net-Contain containment system framing for a uniform appearance across the installed aisle enclosure.

Ted Perry

The CUCGF06DPW1 is one of those components that looks simple on paper but gets specified wrong more often than it should. It is a 74.08-inch-wide (1881.6 mm) ceiling grid panel — that width is the aisle-spanning dimension, not the run length. The 24.3-inch length is what you multiply out when calculating how many panels you need per linear foot of aisle. I have seen projects under-order by confusing the two dimensions, then wait two weeks for a follow-on shipment to close a containment gap that bleeds cold air the entire time.

Technical Highlights:

• 1800 mm Panel Span: at 74.08 inches, a single CUCGF06DPW1 covers a standard hot or cold aisle in one piece — no mid-aisle panel join needed at typical 600–750 mm aisle widths, eliminating the most common ceiling air-leak point.
• RoHS-Compliant PVC/Vinyl: lightweight enough for overhead installation without heavy hardware, and compliant with EU hazardous substances restrictions — relevant for enterprise procurement teams with materials compliance requirements baked into their vendor policies.
• Fire Suppression Integration: built to work with suspended tile ceiling systems, not block them — this is the spec that separates compliant data center containment panels from solid aftermarket alternatives that can fail fire marshal inspection.

Deployment Considerations:

• Verify your Net-Contain framing model before ordering ceiling panels separately — the CUCGF06DPW1 is a component, not a standalone kit, and the ceiling grid must match the installed vertical framing and end-of-row hardware already on site.
• The 0.34-inch (8.6 mm) panel height is negligible for most overhead clearance situations, but facilities with unusually tight plenum-to-top-of-rack clearances should confirm the full assembled containment height including framing before procurement.

This panel is the right call for data center facilities managers completing or expanding a Panduit Net-Contain universal aisle containment build — particularly in co-location environments where consistent white aesthetics, RoHS material compliance, and certified fire suppression compatibility are non-negotiable during customer and compliance audits.
