Panduit CUEORF04DPW1 Net-Contain Aisle Containment Roof Section
Overview

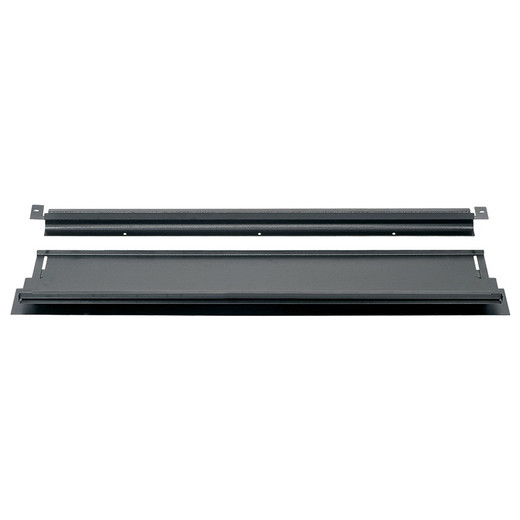

The Panduit CUEORF04DPW1 is a roof section (end-of-row cap) for the Net-Contain™ Universal Aisle Containment system — the structural piece that closes off the top of a contained hot or cold aisle at the row terminus. If your data center aisle containment project has a gap between the top of the cabinet row and the drop ceiling, or if you're sealing a partial-width row end, this is the component that finishes the enclosure.
Built for a 4-foot (approximately 1,200 mm) wide aisle, the CUEORF04DPW1 includes up to 4 inches of adjustability so you can dial in the fit without cutting or shimming. Paired with the interrow ceiling panels of the Net-Contain system, this end section completes the thermal boundary that keeps hot and cold airstreams separated — the fundamental requirement for measurable PUE improvement in any row-based containment deployment.
Key Features
- Expandable Fit — Up to 4 Inches of Adjustment: The roof section extends up to 4 inches (approximately 100 mm) beyond its nominal 47.24-inch width, accommodating minor aisle width variations without custom fabrication. In practice, this prevents the air gaps at the row end that undermine the rest of your containment investment.
- Designed for 4-Foot Aisle Width: At 47.24 inches wide and 50.24 inches long, this section is sized for standard 4-foot (1,200 mm) data center aisles — the most common row spacing in modern raised-floor and slab environments. Confirm your aisle dimension before ordering; Net-Contain offers alternate-width sections for non-standard configurations.
- 24.41-Inch Profile Height: The 24.41-inch (620 mm) vertical height provides substantial closure depth — enough to bridge the gap between cabinet tops and a low-clearance drop ceiling or plenum structure in typical 10–12-foot ceiling data halls.
- PVC/Vinyl Construction: Lightweight PVC/Vinyl keeps the component easy to handle during installation and doesn't add meaningful load to cabinet tops or ceiling grid. It also resists the humidity cycles common in active cooling environments without corrosion or delamination concerns.
- RoHS-Compliant Materials: Meets RoHS (Restriction of Hazardous Substances) requirements — relevant for facilities with environmental compliance mandates or LEED certification targets. Verify specific facility requirements against the RoHS declaration if your compliance scope is formal.
- White Finish: The white color matches standard data center ceiling grid and tile systems, keeping the containment structure visually neutral. In mixed vendor environments where containment panels come from multiple sources, color consistency reduces the visual friction of audits and walkthroughs.
- Net-Contain™ Ecosystem Component: This section is part of Panduit's Panduit Net-Contain modular containment family, designed to pair with the interrow ceiling panels and vertical end panels of the same system. Mixing containment components from different vendor families typically requires custom bridging — budget for that if your existing infrastructure is non-Panduit.
Integration & Compatibility
The CUEORF04DPW1 is engineered as a component of the aisle containment systems within the Net-Contain™ Universal Aisle Containment line. It installs at the end of a row alongside interrow ceiling panels to form a closed thermal envelope. Before specifying this section, confirm:
- Aisle Width: This section targets a nominal 4-foot (approximately 1,200 mm) aisle. The 4-inch expansion range handles minor variation, but it is not a universal fit for 3-foot or 600 mm aisles — those require a different section from the same family.
- Ceiling Clearance: At 24.41 inches tall, plan your ceiling grid height to ensure this section reaches or overlaps the drop ceiling without leaving an unsealed gap. A gap at the top of the containment structure is a direct airflow bypass path.
- System Pairing: Designed to work with Net-Contain interrow ceiling panels. If you are deploying a data center containment project from scratch, plan the full row panel count alongside this end section — mismatched panel counts leave open spans that defeat containment.
- Cabinet Compatibility: Net-Contain is designed around standard 2-post and 4-post open-frame and enclosed server rack enclosures. Verify mounting interface compatibility with your specific cabinet top rails before installation.
What's in the Box
- 1x Panduit CUEORF04DPW1 Net-Contain Aisle Containment Roof Section (White)
Frequently Asked Questions
Q: What aisle width is the CUEORF04DPW1 designed for?
A: The CUEORF04DPW1 is designed for a 4-foot (approximately 1,200 mm) wide data center aisle. It includes up to 4 inches of expansion range to accommodate minor aisle width variation beyond the nominal dimension.
Q: What is the overall height of the CUEORF04DPW1?
A: The overall height is 24.41 inches (620 mm). This is the vertical closure depth available for bridging the gap between cabinet tops and the ceiling structure in your containment deployment.
Q: Is the CUEORF04DPW1 RoHS compliant?
A: Yes, the CUEORF04DPW1 meets RoHS (Restriction of Hazardous Substances) requirements as specified by the manufacturer.
Q: What material is the CUEORF04DPW1 made from?
A: The section is constructed from PVC/Vinyl — a lightweight, corrosion-resistant material suited for the humidity and temperature cycling typical in active data center cooling environments.
Q: Does this roof section work with other aisle containment brands?
A: The CUEORF04DPW1 is designed as part of the Panduit Net-Contain™ Universal Aisle Containment system and is engineered to pair with Net-Contain interrow ceiling panels and end panels. Integration with non-Panduit containment systems is not specified by the manufacturer and would typically require custom bridging components.
Q: How many units are included per package?
A: Each order of the CUEORF04DPW1 ships as a single unit (package quantity of 1).
The CUEORF04DPW1 is a straightforward but easy-to-get-wrong spec — it targets a 4-foot nominal aisle with up to 4 inches of expansion, and that range sounds generous until you're on-site with an actual 48-inch aisle and a cabinet row that wasn't installed perfectly square. The 24.41-inch height profile is the other number to validate before the PO goes in; I've seen projects where this section was ordered correctly but the ceiling grid was 22 inches above cabinet tops, leaving a 2-inch bypass gap that showed up immediately in hot-aisle temperature readings.
Technical Highlights:
- 4-Inch Expansion Range: Adjusts from 47.24 inches to approximately 51.24 inches, covering the typical tolerance band on a 4-foot aisle without field modification — saves a site visit for shimming or cutting.
- 620 mm Height (24.41 in): Designed to close from cabinet top to ceiling plane in standard 10-to-12-foot ceiling data halls; confirm your specific ceiling-to-top-of-cabinet measurement before ordering.
- PVC/Vinyl Construction: Lightweight enough to mount and adjust without additional ceiling support hardware in most configurations; won't corrode in the humidity swings of an active CRAC-cooled environment.
Deployment Considerations:
- The CUEORF04DPW1 is an end-of-row cap, not a full-span panel — you'll need the matching Net-Contain interrow ceiling panels to complete the thermal boundary across the full row length. Ordering only end sections without the interrow panels leaves the middle of the containment structure open.
- The 4-inch expansion is a linear extension only; it does not compensate for angular misalignment or non-parallel cabinet rows. If your row has a bow or your cabinets weren't installed on a straight chalk line, plan for supplemental sealing at the gap edges.
This section is the right call for a greenfield Net-Contain hot-aisle or cold-aisle deployment in a standard 4-foot-aisle raised-floor data hall — especially in retrofit scenarios where ceiling height and aisle width are already fixed and you need an off-the-shelf solution that installs without custom fabrication.
