Panduit H000X034H2M 8.6mm Heat-Shrink Label Cartridge

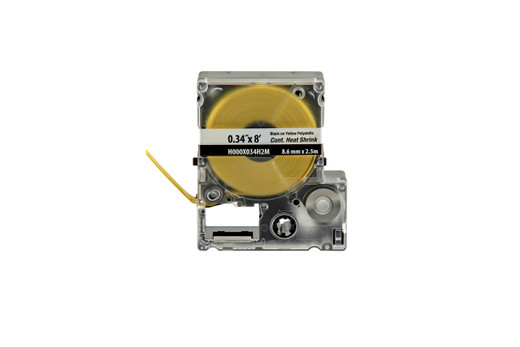

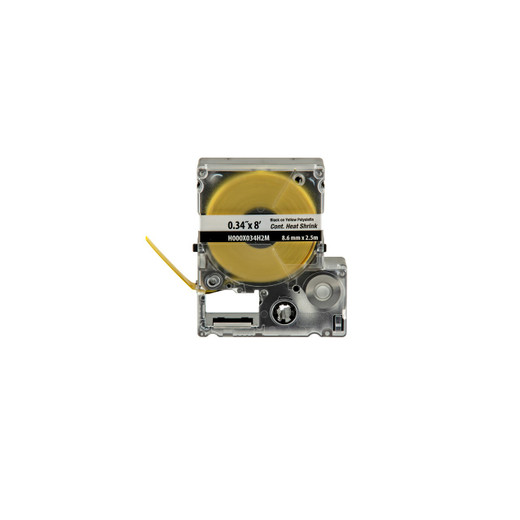

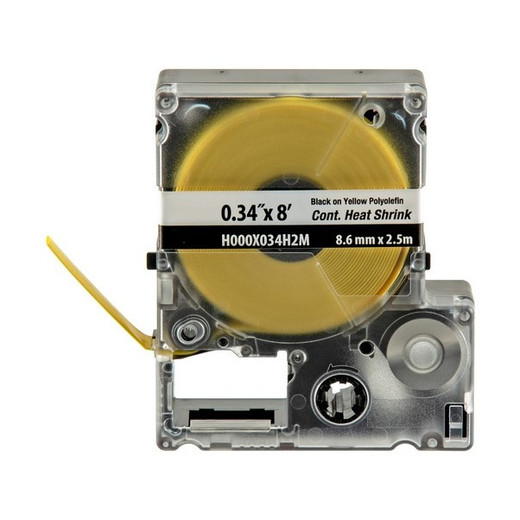

Panduit H000X034H2M PXE™ Continuous Heat-Shrink Label Cartridge

Continuous heat-shrink label cartridge for Panduit MP-series portable printers, designed for permanent wire and cable identification in commercial security, datacenter, and industrial-automation installations. Yellow military-grade polyolefin material provides tamper-evident marking for 18-12 AWG conductors with resistance to chemicals, abrasion, and UV exposure. Quick-change MP™ cassette integrates both label material and thermal-transfer ribbon in a single cartridge, eliminating threading errors and enabling sub-15-second field swaps during large-scale termination projects.

Key Features

• Military-spec polyolefin construction (MIL-M-81531 platform) for harsh-environment durability
• 8.6mm print width supports 5 lines of text or 1D barcodes (Code 39, Code 128, I 2/5)
• 2.4-meter continuous roll yields 500+ individual shrink sleeves per cartridge
• 4.7mm inner diameter fits 18-12 AWG wire (0.75-2.5mm² conductors)
• 3:1 shrink ratio ensures moisture-tight seal over insulation and jacket irregularities
• Quick-load cassette format with integrated ribbon for field-swap efficiency
• -55°C to +135°C operating range for outdoor enclosures and refrigerated facilities
• Compatible with MP75, MP100, MP200, and MP300 portable printers

The H000X034H2M uses Panduit's military-spec polyolefin formulation engineered to withstand diesel fuel, hydraulic fluid, and industrial cleaning solvents. The 3:1 shrink ratio creates a moisture-tight seal over conductor insulation—critical for preventing corrosion in coastal installations or high-humidity data centers. The 8.6mm print width accommodates up to 5 lines of 6-point text or asset-management barcodes at scanning densities sufficient for rack-mounted patch panels and equipment terminations. Print resolution is determined by the host MP printer (203 or 300 DPI), but the polyolefin surface accepts thermal-transfer ink with superior edge definition compared to vinyl alternatives. Each 2.4-meter cartridge yields approximately 500-600 sleeves at 4mm cut lengths (typical for patch-panel terminations) or 240 sleeves at 10mm lengths (common for motor-control circuits). The integrated ribbon auto-advances in sync with material feed, preventing the ink-starvation failures that plague generic aftermarket cartridges.

Yellow heat-shrink labels are the standard for control wiring, interlock circuits, and low-voltage signal conductors in access-control and surveillance-network installations. In access-control systems, yellow sleeves identify input loops (door contacts, REX sensors, tamper switches) to distinguish them from power feeds and data pairs—accelerating troubleshooting and reducing short-circuit risk during zone expansions. For IP camera deployments, the H000X034H2M marks PoE home-runs at patch-panel terminations with camera location codes or VLAN assignments. The heat-shrink format survives repeated flexing and cable-management stress in server racks; adhesive labels often peel after 12-18 months of MACs, but heat-shrink sleeves remain legible for the cable plant's full service life. The MP-series printers are battery-powered and pocket-portable, making them ideal for retrofit projects in suspended ceilings, crawl spaces, or outdoor shelters. The 2.4-meter roll supports a full day's termination work (200-300 conductors) without mid-shift cartridge swaps.

RoHS-compliant material satisfies green-building procurement requirements for LEED and BREEAM-certified projects. Panduit ships this SKU in 5-cartridge contractor packs, balancing shelf-life management with volume-pricing efficiency for recurring label stock. The 8.6mm width and 4.7mm diameter are optimized for 18-12 AWG applications—the most common conductor sizes in commercial low-voltage work, structured cabling, and industrial control panels.
