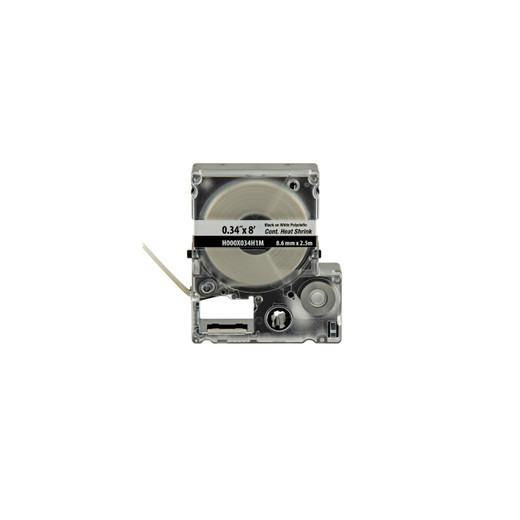

Panduit H000X034H1M PXE™ Thermal Heat Shrink Label Cassette

Panduit's H000X034H1M delivers continuous thermal heat shrink labeling for portable printer systems in wire identification applications. This PXE™ cassette prints and applies permanent shrink-sleeve labels on 18-12 AWG conductors, meeting the marking requirements of commercial security, industrial control, and datacom installations where adhesive labels fail under heat, humidity, or abrasion. The military-grade polyolefin material shrinks to a 4.7mm diameter and provides a 2.4-meter continuous label supply in a quick-load cassette compatible with Panduit's MP-series portable printers.

Key Features

Military-grade polyolefin heat shrink material resists solvents, abrasion, and UV exposure

8.6mm label width accommodates 18-12 AWG wire sizes with 2:1 shrink ratio

Quick-load MP™ cassette integrates label material and ribbon for tool-free changes

2.4-meter continuous format eliminates pre-cut label waste and sizing constraints

Compatible with MP75, MP100, MP200, and MP300 portable printers

White background ensures high-contrast black thermal printing for code compliance

RoHS compliant for specification-driven projects and export installations

The H000X034H1M cassette uses a closed-loop supply system where both the polyolefin substrate and thermal transfer ribbon load as a single unit—no threading, no ribbon-path alignment, and no cross-contamination between label stocks when switching cassettes mid-job. Panduit's thermal print engine produces 300 DPI output that survives heat-gun shrink cycles without smearing or fading, a failure mode common with inkjet-printed shrink labels. The 2:1 shrink ratio means the 8.6mm-wide label recovers to a 4.7mm finished diameter, tight enough to stay put on 18 AWG THHN in conduit pulls but forgiving enough for 12 AWG landscape lighting feeds. Continuous format lets you print exactly the length you need—18mm for a short panel jumper, 75mm for a full ANSI/TIA circuit ID—without the waste and job-site sorting of pre-cut label rolls.

Security integrators use these labels on access control door loops, intrusion zone wiring, and IP camera homerun bundles where adhesive labels peel off in attic heat or outdoor J-boxes. Industrial panel builders rely on them for motor control circuits, PLC I/O, and VFD power feeds where NEC 110.22 and UL 508A require permanent conductor identification. Network installers apply them to datacenter power distribution, battery strings, and UPS output circuits where every conductor must trace back to a documented source without ambiguity. The polyolefin formulation passes the bend-and-scrape tests that adhesive labels fail: it won't lift at wire terminations, won't degrade under cable-tie compression, and won't dissolve when cleaning flux or pulling compound contacts the label surface.

The MP™ cassette's quick-load design matters when you're switching between wire sizes or label colors in the middle of a job—pop out the depleted cassette, snap in a fresh one, and resume printing in under 10 seconds with no calibration or alignment step. RoHS compliance ensures the labels meet procurement requirements for federal and municipal projects, and Panduit's manufacturer warranty covers defects in material and thermal-transfer adhesion. This cassette ships in a 5-pack configuration (carton quantity: 120) to support high-volume panel shops and integration teams running continuous labeling campaigns across multi-building deployments.
