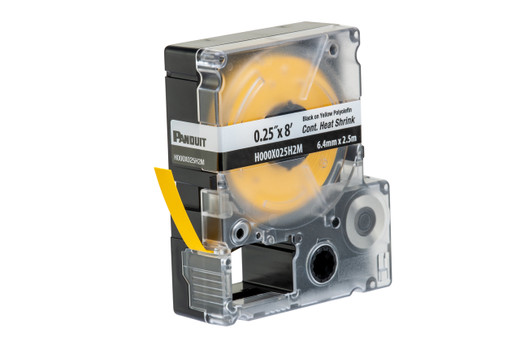

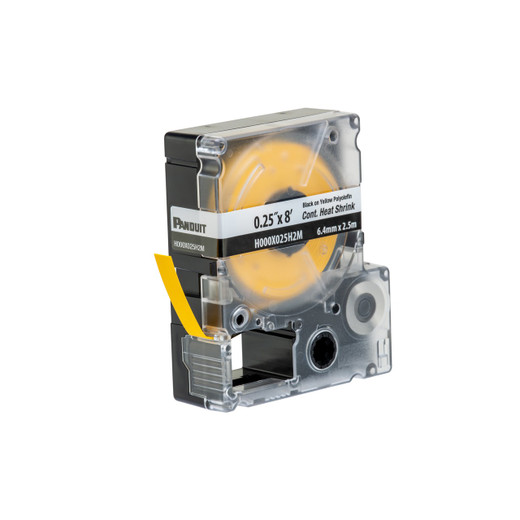

Panduit H000X025H2M 0.27" Heat Shrink Label - Yellow

Panduit H000X025H2M PXE™ Heat Shrink Label

The Panduit H000X025H2M delivers durable, print-on-demand wire and cable identification for low-voltage installations where space is tight and permanent marking is non-negotiable. This 0.27" (6.8mm) yellow polyolefin heat shrink label is engineered for MP-series thermal printers (MP75, MP100, MP200, MP300) and shrinks snugly over conductors, terminals, and breakout points in control panels, access control systems, and equipment racks. Integrators marking 18-22 AWG wire runs rely on this format for its balance of print area and minimal profile—wide enough to read at arm's length, narrow enough to fit crowded terminal blocks without obscuring adjacent connections.

Key Features

• 0.27" (6.8mm) width optimized for 18-22 AWG wire marking and compact terminal identification
• Polyolefin material outperforms PVC with superior abrasion, chemical, and UV resistance for industrial environments
• Yellow colorway supports ANSI/TIA-606-C color-coding standards and high-visibility field identification
• Compatible with Panduit MP75, MP100, MP200, MP300 thermal printers for immediate, on-site legend generation
• RoHS compliant for specification compliance in EU and California installations
• 5-label supply per package balances inventory replenishment with cost-per-label efficiency

Polyolefin heat shrink outperforms legacy PVC labels in three critical areas: it tolerates a wider temperature range (-67°F to +257°F), resists common solvents and cleaning agents found in industrial panels, and maintains legend legibility under UV exposure that would fade printed adhesive labels within months. The 3:1 shrink ratio typical of Panduit PXE polyolefin ensures the label conforms tightly to irregular surfaces—jacketed cable, stranded wire, or the ribbed insulation on plenum-rated conductors—without the air gaps that trap moisture and accelerate corrosion. Integrators installing access control door strikes, IP camera home-run cables, or fire alarm notification circuits use this width because it prints two lines of 9-point text legibly: circuit number on line one, destination or function on line two. That level of detail eliminates the callback when a tech needs to trace a circuit two years later and the original installer is gone.

The MP-series printer workflow matters here. Unlike pre-printed label sheets that force you to match your naming convention to a vendor's abbreviation list, thermal-transfer printing lets you generate legends in real time using your RMM system's naming convention, the architect's point schedule, or the client's internal asset tags. The H000X025H2M supplies feed from a cassette, print in 3-5 seconds per label, and you heat-shrink them in place with a standard hot-air tool before the next pull. This eliminates the jobsite scenario where you hand-write temporary labels "to be replaced later" and they're still there at final inspection. For control panel builds and rack integration projects where UL508A or NEC 110.22 identification requirements apply, this format provides the print resolution and material permanence that inspectors expect. The yellow color aligns with common practices for low-voltage signaling circuits, though it's equally effective for phase identification, equipment numbering, or asset tagging when your color-coding plan calls for high-contrast marking.

RoHS compliance is non-negotiable for projects serving EU-based enterprises, California state facilities, or multinational corporations with global environmental procurement standards. The 5-label package quantity suits both small service calls (replacing a failed controller and re-marking six I/O points) and larger projects where you order cartons of 120 but break them down by crew or phase. Competitive equivalents include Brother M21-125-C-342-YL and HellermannTyton H100X025H2C, though Panduit's cassette-based supply system reduces the risk of loading the wrong label width mid-job—a common error when techs swap between wire sizes on a job site. If your workflow depends on Panduit MP printers for consistent print quality and your projects demand labels that survive 15-year equipment lifecycles in dusty telecom closets or outdoor equipment enclosures, the H000X025H2M is the supply format that keeps your identification program compliant and legible from rough-in to decommissioning.
