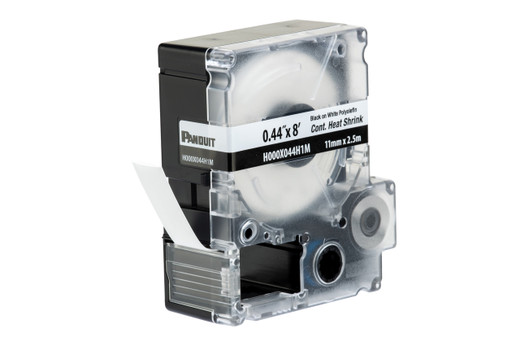

Panduit H000X044H1M PXE™ Heat Shrink Label Cassette
Professional cable identification in security and network installations demands labels that survive harsh environments and maintain legibility for decades. The Panduit H000X044H1M delivers military-grade polyolefin heat-shrink labels designed for permanent wire marking in datacenters, access control panels, and field terminations. This 11.2mm wide continuous label cassette works with MP100, MP200, and MP300 portable printers, providing on-demand identification for 16-10 AWG conductors. The quick-load MP™ cartridge contains both label material and thermal ribbon in a single unit, eliminating cassette-swapping downtime during multi-circuit installations.
Key Features
- Military-grade polyolefin construction resists solvents, abrasion, and UV degradation
- 11.2mm label width covers 16-10 AWG wire (1.3-2.6mm conductor diameter)
- 2.4-meter continuous roll per cassette for extended job runs
- Quick-load MP™ cartridge combines label stock and ribbon in single replaceable unit
- Heat-activated shrink-to-fit installation bonds permanently to cable jackets
- White background provides high-contrast legibility for thermal-printed text
- RoHS compliant for environmentally regulated installations
The polyolefin substrate delivers superior chemical resistance compared to adhesive vinyl labels, maintaining print clarity when exposed to cleaning solvents, hydraulic fluids, and UV radiation common in outdoor enclosures and industrial environments. Heat application shrinks the label around the conductor, creating a tamper-evident seal that won't peel or migrate during cable pulls. The 2:1 shrink ratio accommodates variations in wire jacket diameter across the 16-10 AWG range, while the 12.3mm pre-shrink width provides adequate print area for circuit IDs, panel numbers, and zone designations up to 20 characters. The integrated ribbon cartridge eliminates the multi-step loading procedure required by separate label and ribbon systems—snap in the MP™ cassette, and the printer is ready for immediate output.
Security integrators use these labels for low-voltage home runs between access control panels and door hardware, fire alarm circuit identification at FACP terminals, and camera network cabling in outdoor junction boxes. Datacenter technicians rely on heat-shrink labels for SFP+ DAC assemblies, power distribution whips, and UPS battery string interconnects where adhesive labels fail under thermal cycling. The 5-cassette package supports approximately 12 meters of total labeling—enough to identify 150-200 individual conductors in a typical multi-door access control installation or a 42U rack's worth of structured cabling patch panel terminations. White labels work best for dark-jacketed cables (black, gray, blue) where contrast is critical; combine with Panduit's yellow, red, or orange cassettes for color-coded phase identification or zone segmentation.
Each cassette ships RoHS compliant for installations subject to EU or California environmental regulations. The MP™ quick-load design maintains a two-year shelf life when stored at 15-30°C, making bulk purchasing practical for integrators running continuous projects. Verify printer compatibility before ordering—MP100, MP200, and MP300 models accept H-series cassettes, while older BMP51/53 printers require M-series cartridges with different ribbon widths. Package quantity is 5 cassettes; carton quantity is 120 cassettes for warehouse stock.
