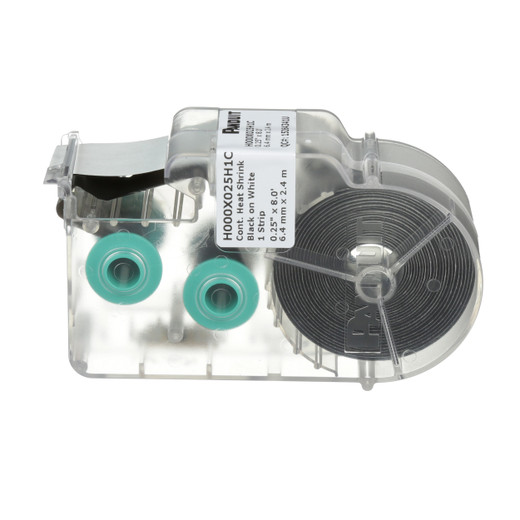

Panduit H000X025H1C P1 Military-Grade Heat Shrink Label Cassette
The Panduit H000X025H1C is a military-specification polyolefin heat shrink label cassette engineered for permanent cable identification in defense, industrial control, and critical infrastructure installations. This 0.25" × 8' continuous cassette features 3:1 shrink ratio for secure retention on conductors ranging from 0.04" to 0.13" diameter, with an integrated memory chip that stores formatting templates, recalls the last legend printed, and tracks remaining label stock—eliminating guesswork during high-volume wire-marking projects.
Key Features
- Military-grade polyolefin construction meets MIL-M-81531 and MIL-STD-202G Method 215K (Solution A, C, D) for chemical resistance and environmental durability
- 3:1 shrink ratio delivers tight conformance around cable jackets, preventing slippage in vibration-prone enclosures or conduit pulls
- Integrated memory device auto-configures label width, recalls last-used legends, and displays cassette remaining footage in LS8E/LS8EQ printer interface
- UL 224 flammability compliance ensures safe deployment in plenum, riser, and equipment-room environments
- Cut-to-length continuous cassette format reduces waste—print exact label sizes for patch-panel ports, terminal blocks, or field-terminated connectors
- Compatible with Panduit Easy-Mark Plus labeling software for batch printing, barcode generation, and asset-management database integration
Defense contractors and systems integrators installing ruggedized networks in military vehicles, shipboard electronics, or aerospace harnesses require labels that survive salt-fog exposure, fuel-vapor contact, and thermal cycling per MIL-STD-202G. The H000X025H1C cassette uses polyolefin formulated to resist degradation when exposed to hydraulic fluids, cleaning solvents (isopropyl alcohol, methyl ethyl ketone), and diesel exhaust—common threats in shipboard cable trays or aircraft avionics bays. Its 3:1 shrink ratio means a 0.25" flat label shrinks to 0.083" post-heating, gripping 22–26 AWG conductors tightly enough to stay legible through years of connector mating cycles. The integrated memory chip communicates with LS8E and LS8EQ printers via I²C protocol, automatically loading the correct thermal-transfer ribbon temperature profile and preventing operator errors that cause smudging or incomplete curing on military-spec polyolefin substrates.
Industrial control-panel builders terminating 500+ I/O points in a PLC cabinet use the continuous-cassette format to print variable-length labels: 0.5" markers for terminal blocks, 1.2" wraps for shielded analog-signal pairs, and 2" flags for multi-conductor bundles entering junction boxes. Easy-Mark Plus software imports CSV wire lists from AutoCAD Electrical or EPLAN, auto-generates sequential numbering (e.g., "24VDC-01" through "24VDC-48"), and queues the batch to an LS8EQ printer. The cassette's memory chip tracks footage consumed, triggering a low-supply warning 10 labels before depletion—preventing mid-shift downtime when labeling 800-circuit fire-alarm panels or building-automation trunk lines. White polyolefin provides high contrast against black, red, or blue cable jackets common in 600V control wiring, with thermal-transfer legends rated for 20+ years of UV exposure in outdoor pull-boxes or rooftop equipment.
Specifiers writing cable-identification standards for Navy shipboard installations, Air Force radar sites, or DOE nuclear facilities cite MIL-M-81531 and UL 224 as minimum requirements—the H000X025H1C meets both, plus MIL-STD-202G chemical-immersion testing that consumer-grade vinyl or polyester labels cannot pass. One 8-foot cassette yields approximately 96 one-inch labels or 32 three-inch cable flags, with the LS8E printer's half-cut mode allowing peel-and-apply workflow during live retrofits where de-energizing circuits isn't feasible.
