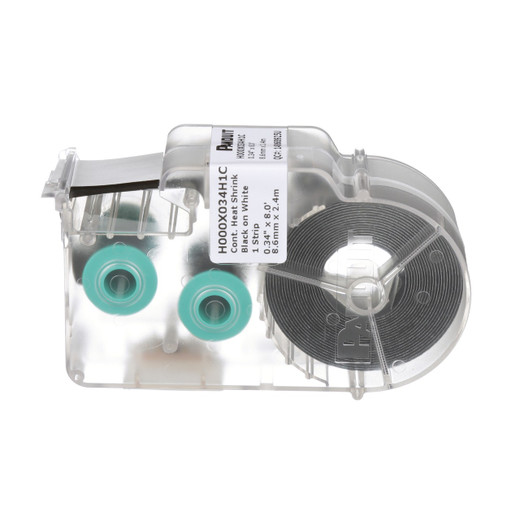

Panduit H000X034H1C P1™ Heat Shrink Label Cassette
The Panduit H000X034H1C delivers military-spec wire and cable identification for permanent installations in harsh environments. This 0.34" × 8' polyolefin heat-shrink cassette produces custom-length labels with 3:1 shrink ratio for cable diameters 0.06"–0.19" (1.5–4.8 mm), ideal for low-voltage control wiring, sensor leads, and fiber breakout assemblies in access control, intrusion, and AV systems. Built-in memory tracks remaining label stock and recalls last legend, eliminating mid-job cassette surprises. White polyolefin base resists solvents, UV, and abrasion per MIL-M-81531 and UL 224 flame ratings—engineered for telecom closets, industrial control panels, and outdoor enclosures where adhesive labels fail.
Key Features
- Military-grade polyolefin withstands -67°F to +275°F, meets MIL-M-81531 and MIL-STD-202G Method 215K chemical resistance
- 3:1 shrink ratio conforms tightly to 1.5–4.8 mm cables—crisp legends stay readable through heat-gun application
- Integrated memory chip auto-formats labels, stores last print job, reports remaining footage for job planning
- Cut-to-length design eliminates waste: print exact labels for patch cables, pigtails, and breakout legs
- Compatible with LS8E/LS8EQ thermal-transfer printers and Easy-Mark Plus™ software for barcode/serialization workflows
Heat-shrink labels solve the durability problem adhesive tags can't: they become part of the cable jacket. When you apply heat, the 0.34" tube shrinks 3:1 around the conductor and legend transfers from carrier to shrunk surface—no edge-peel, no glue residue, no fading from solvent wipes. The H000X034H1C's polyolefin formulation passes UL 224 flame tests and MIL-STD-202G Solution A/C/D immersion (gasoline, hydraulic fluid, salt spray), making it the go-to for outdoor camera runs, parking gate loops, and any cable exposed to cleaning chemicals or weather. The cassette's RFID memory communicates with your LS8E printer to auto-load material settings, recall the last legend (helpful when labeling 96-strand fiber breakouts), and warn when footage drops below job requirements.
Typical deployment: a datacenter cross-connect with 288 LC fibers requires color-coded, serialized labels on every breakout leg. Adhesive wraps won't survive the heat of densely packed trays or the abrading during MACs. You load the H000X034H1C into an LS8EQ, import your port schedule into Easy-Mark Plus™, and print sequential legends (e.g., "BLDG-A-FL3-R301-P01" through "P24") as cut-to-length tubes. Slide each tube over the 900 µm leg, apply heat gun at the termination end, and the label fuses into a permanent, smudge-proof identifier. The cassette's memory ensures you won't run out mid-batch—printer warns at 10% remaining so you can stage the next cassette before the last label prints.
The 0.34" width fits 22–18 AWG wire and thin breakout cables, covering most access-control door loops, fire-alarm initiating circuits, and RS-485 runs. For heavier cables (cat6, RG6, multiconductor) step up to Panduit's 0.47" or 0.75" cassettes; for 26 AWG sensor wire, the 0.24" cassette is tighter. The white base accepts black thermal-transfer ink from LS8E/LS8EQ printers at 203 DPI—sufficient for 6-point text and Code 39 barcodes. If you need pre-printed legends, Panduit's P1 adhesive labels may suffice indoors; if you need to survive outdoor UV, gasoline spills, or autoclave sterilization cycles, heat-shrink polyolefin is the only spec-compliant choice. One cassette yields approximately 8 feet of continuous label stock, enough for 50–80 short legends depending on cut length. Carton quantity 10 cassettes supports large projects without reorder delays.
