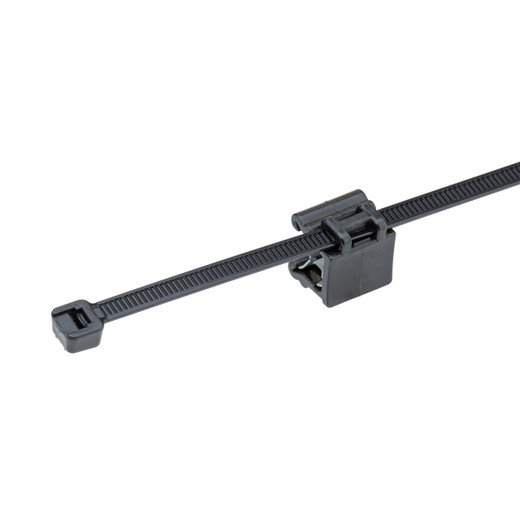

Panduit CMSB24-2S-D300 Edge Clip with Cable Tie Mount

The Panduit CMSB24-2S-D300 edge clip with integrated cable tie mount delivers tool-free wire routing on panel edges, eliminating drill-out and adhesive mess in mobile, industrial, and solar installations. Pre-assembled with a lateral-facing tie seat, this clip secures bundles perpendicular to 3–6 mm (.118–.236") edges in a single snap, making it ideal for tight-access enclosures, vehicle harnesses, and retrofit jobs where panel integrity must stay intact.

Key Features

Pre-assembled tie seat on lateral face for perpendicular bundle routing off panel edges

Fits 3–6 mm (.118–.236") edge thickness — covers most sheet-metal and composite panels

High-temperature, UV-stabilized nylon 6.6 construction for outdoor and under-hood durability

UL94V-2 flammability rating for electrical enclosure compliance

No drilling, no adhesive — snap-on installation preserves panel warranty and finish

RoHS compliant for global equipment manufacturing

Wire routing on enclosure and vehicle edges typically demands drilling, rivets, or adhesive-backed mounts — each adding labor, weight, and risk of panel damage. The CMSB24-2S-D300 clamps over the edge and holds a cable tie in perpendicular orientation, letting you bundle and secure harnesses in one motion. The integral tie seat sits on the clip's side face, positioning the bundle 90° to the mounting edge for clean separation from panel surfaces and adjacent runs. This design is especially valuable in automotive, rail, heavy equipment, truck, and solar array builds, where vibration, temperature extremes, and UV exposure demand secure, inspection-friendly routing without compromising panel structure.

The clip's nylon 6.6 body is compounded for high-temperature and UV resistance, making it suitable for engine compartments, outdoor solar inverter enclosures, and agricultural equipment exposed to continuous sunlight. UL94V-2 flammability rating ensures the material self-extinguishes during electrical fault conditions, meeting enclosure and wiring-device standards common in UL 508A industrial control panels and mobile equipment harnesses. The black finish conceals grime and blends into most industrial and automotive environments.

Installation requires no tools: align the clip over the panel edge, press until the internal retention feature engages, then insert a cable tie (not included) through the lateral seat and cinch the bundle. The 3–6 mm (.118–.236") edge-thickness range accommodates standard 16–18 gauge sheet-metal enclosures, fiberglass composite panels, and aluminum solar-module frames. Carton quantity is 5,000 pieces; package quantity is 500, allowing bulk purchasing for OEM production lines or stocking common-use clip sizes across multiple install teams.
