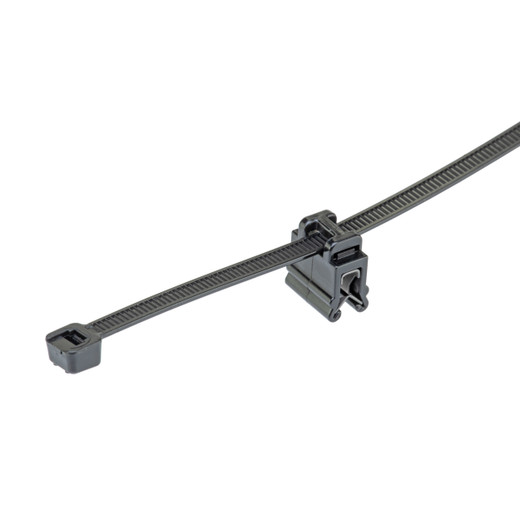

Panduit CMEA12-2S-D300 Edge Clip with Integrated Cable Tie Mount

The Panduit CMEA12-2S-D300 edge clip delivers tool-free cable routing for mobile equipment, solar arrays, and industrial enclosures where drilling or adhesives aren't viable. Pre-assembled with an integrated cable tie saddle, it snaps onto panel edges from 0.028" to 0.118" (0.7mm to 3mm) thick and routes bundles parallel to the mounting surface—critical for tight clearances in automotive, rail, and heavy equipment installations where cables must run flush along chassis edges or equipment frames.

Key Features

Integral saddle positions pre-installed cable tie for parallel bundle routing along panel edges

Fits edge thicknesses from 0.7mm to 3mm without drilling or fasteners

High-temp/UV-resistant nylon 6.6 construction for outdoor and underhood applications

UL94V-2 flammability rating and RoHS compliance for regulated installations

Black finish blends with automotive and industrial enclosures

Packaged 500 per bag for volume installs in manufacturing or fleet retrofits

The CMEA12-2S-D300's snap-on design eliminates the structural concerns of drilling mounting holes in load-bearing panels or sealed enclosures. The integral saddle orients the cable tie perpendicular to the edge, creating a standoff that keeps bundles parallel to the mounting surface rather than protruding outward—essential when routing cables inside equipment cabinets, along vehicle frame rails, or beneath solar panel arrays where vertical clearance is constrained. Nylon 6.6 material withstands prolonged UV exposure and temperature cycling in outdoor telecom cabinets, rooftop solar installations, and engine-compartment harnesses where standard ABS clips would crack or discolor.

Specify this edge clip for mobile surveillance installs (patrol vehicles, transit buses, mobile command centers) where vibration and thermal stress rule out adhesive-backed mounts, and for solar combiner box installations where NEC 690 requires secure cable support without penetrating weatherproof enclosures. The 500-piece packaging supports production-line harness assembly, fleet upfits, and large-scale solar farm deployments. In rail applications, the clip's edge-grip design maintains bundle position through constant vibration and thermal expansion cycles that loosen screw-mount clips over time.

RoHS compliance and UL94V-2 flammability certification meet Low Voltage Directive (LVD) and railway EN 45545 fire-safety requirements for passenger rail and public-transit installations, while the black UV-stabilized finish prevents the chalking and embrittlement common in outdoor cable management hardware exposed to multi-year solar and weather cycles.
