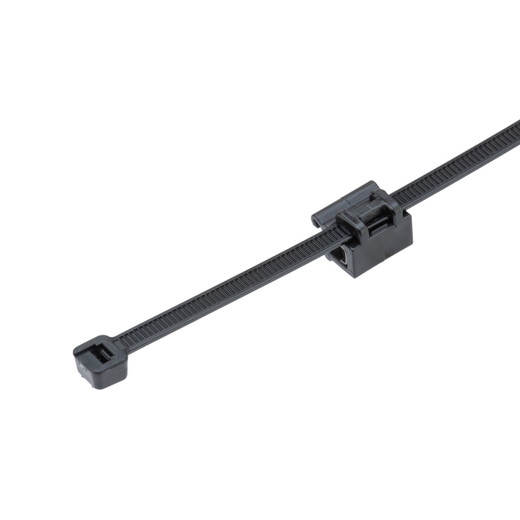

Panduit CMSB12-2S-D300 Edge Clip with Cable Tie Mount

The Panduit CMSB12-2S-D300 edge clip delivers tool-free cable routing along panel edges without drilling holes or applying adhesives. Pre-assembled with an integrated cable tie, this black nylon mount secures to edges between 0.7mm and 3mm thick, positioning wire bundles perpendicular or parallel to the mounting surface. Engineered for mobile equipment, rail systems, solar arrays, and heavy machinery where vibration, UV exposure, and temperature extremes demand durable wire management that won't compromise structural integrity.

Key Features

• Pre-assembled cable tie mount for immediate deployment on 0.7–3mm (0.028–0.118") edges
• Snap-on installation eliminates drilling, adhesives, and surface preparation
• UV-stabilized, high-temperature nylon 6.6 construction for outdoor and engine-compartment applications
• Dual routing capability: perpendicular or adjacent bundle orientation from lateral tie seat
• UL94V-2 flammability rating and RoHS compliance for OEM integration
• 500-piece packaging with 5,000-unit carton availability for production-scale deployments

The CMSB12-2S-D300 addresses the persistent challenge of routing cables along thin-gauge panels, enclosures, and structural edges where conventional fasteners fail. The integral tie seat positions the pre-installed strap on the lateral face, creating a perpendicular bundle path relative to the edge—ideal for consolidating harnesses exiting a junction box or routing power feeds along a solar module frame. The clip's snap-fit retention tabs compress during installation, then spring back to lock onto panel edges as thin as 0.7mm, distributing load across 12.2mm of width to prevent edge distortion. Overall dimensions of 7.4" length × 0.47" height × 0.48" width accommodate bundles up to the tie's rated diameter while maintaining a low profile that clears tight routing paths in equipment bays and behind access panels.

Field installers rely on the CMSB12-2S-D300 for automotive harness retrofits, railcar wire management upgrades, and heavy-equipment control-system installations where drilling introduces corrosion risks or voids structural warranties. Solar integrators use these clips to dress DC home-run cables along aluminum module frames and racking extrusions without penetrating anti-corrosion coatings. The UV-resistant polymer formulation maintains mechanical properties under continuous sun exposure, while the high-temperature nylon 6.6 base material withstands engine-compartment heat cycling and the thermal expansion common in outdoor enclosures. The black pigment matches OEM harness aesthetics and hides oxidation on exposed runs.

Each CMSB12-2S-D300 ships with the cable tie pre-installed, reducing assembly labor on production lines and eliminating the risk of mismatched tie/clip pairings in the field. The design meets RoHS restrictions for lead and heavy metals, satisfying OEM material compliance requirements for automotive and industrial equipment. UL94V-2 flammability classification ensures fire-propagation resistance in enclosed electrical spaces. Standard packaging of 500 pieces supports mid-volume projects, while the 5,000-unit carton quantity accommodates fleet-wide rollouts and OEM procurement schedules. Panduit's published competitor cross-reference includes HellermannTyton and Thomas & Betts part families, streamlining bill-of-material substitutions during supply-chain disruptions.
