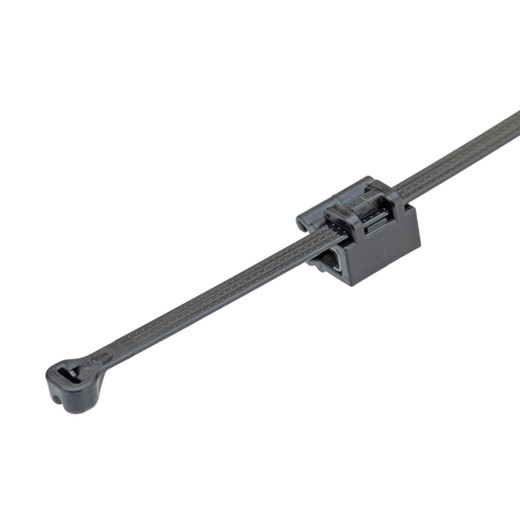

Panduit CMSB12-B2S-D300 Dome-Top Edge Clip with Integrated Cable Tie Mount
The Panduit CMSB12-B2S-D300 Dome-Top edge clip solves a recurring install problem: securing cable bundles to thin sheet-metal or composite edges without drilling holes, adhesives, or permanent fasteners. Pre-assembled with a serrated cable tie, this clip snaps onto edges from 0.7 mm to 3 mm thick and routes cables perpendicular or parallel to the mounting surface. Designed for automotive harness assembly, rolling stock, heavy equipment, and truck body builds where vibration resistance and tool-free installation matter. Black nylon 6.6 construction delivers UL94V-2 flame rating and RoHS compliance in a package that ships 500 units per box, 5,000 per carton—scaled for production-line consumption.
Key Features
- Tool-Free Edge Mounting: Spring clip design grips 0.028"–0.118" (0.7–3 mm) edges without screws, rivets, or adhesive—ideal for sheet metal, fiberglass, and composite panels
- Integrated Cable Tie: Pre-assembled serrated tie mounted on lateral face orients bundles perpendicular to the edge for clean, repeatable routing
- Nylon 6.6 Construction: High-strength engineering thermoplastic resists vibration fatigue, UV degradation, and chemical exposure in automotive and industrial environments
- UL94V-2 Flammability Rating: Meets vertical burn requirements for vehicle interior and equipment-panel installations
- Bulk Packaging: 500-count packages and 5,000-count cartons support high-volume assembly operations
- RoHS Compliant: Lead-free formulation meets EU directives for automotive OEM and export-market builds
The CMSB12-B2S-D300's Dome-Top geometry distributes clamping force across a wider contact area than traditional edge clips, reducing the risk of panel distortion on thin gauge metal. The serrated cable tie—molded from the same UV-stabilized PA6.6 resin—features bidirectional ratchet teeth for progressive tensioning and holds bundles up to approximately 12 mm in diameter. The lateral tie-mount configuration keeps the bundle axis perpendicular to the edge, a critical requirement in automotive door-harness and under-dash installations where clearance to moving parts is tight. Maximum bundle working load depends on tie tensile strength and edge material; Panduit recommends tensioning to snug fit rather than maximum pull to preserve long-term clip retention on thinner substrates.
Edge clips like the CMSB12-B2S-D300 are standard in automotive tier-one harness shops, rail-car builders, agricultural equipment OEMs, and commercial truck upfitters—any application where cable runs must attach to structural edges without compromising panel integrity. Installation crews value the tool-free snap-on action for speed in high-mix assembly lines, and service technicians appreciate the non-destructive removal during warranty repairs or retrofit work. The black color provides discreet appearance in visible areas such as truck cabs and equipment enclosures, while the RoHS-compliant formulation satisfies global supply-chain requirements for vehicles exported to EU and APAC markets.
UL94V-2 flame rating qualifies the CMSB12-B2S-D300 for use inside passenger compartments and enclosed equipment bays per FMVSS and equivalent international standards. The nylon 6.6 base resin resists common automotive fluids including diesel fuel, hydraulic oil, and coolant, and retains mechanical properties across the -40°C to +85°C operating range typical in mobile equipment. Bulk carton quantities align with just-in-time replenishment cycles in production environments, reducing packaging waste and inventory carrying cost for integrators running multi-shift harness assembly operations.
