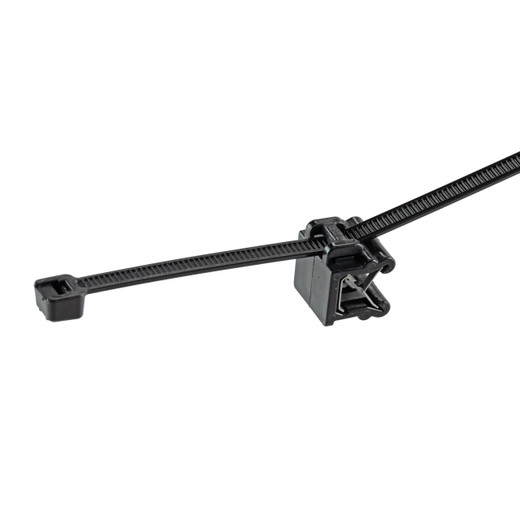

Panduit CMSA24-2S-D300 Edge Clip with Tie Mount

The Panduit CMSA24-2S-D300 edge clip delivers tool-free cable mounting along panel edges, enclosure seams, and chassis perimeters without drilling holes or applying adhesives. Pre-assembled with an integral tie mount on the lateral face, this clip secures wire bundles parallel to edges ranging from 3mm to 6mm thick—common on equipment cabinets, vehicle body panels, solar array frames, and industrial enclosures. Installers routing cable through harsh environments gain UV-stabilized nylon 6.6 construction and UL94V-2 flammability compliance in a single, field-proven component.

Key Features

No-Drill Edge Mounting: Spring-finger retention clips onto 3-6mm (0.118-0.236") edges; no fasteners, adhesives, or panel modification required

Pre-Assembled Tie Mount: Lateral-face seat accepts standard cable ties for instant bundle routing parallel to mounting edge

High-Performance Nylon 6.6: UV-stabilized and high-temperature rated for outdoor, underhood, and solar installations

UL94V-2 Flammability Rating: Meets flame-retardant requirements for enclosed electrical equipment and transit applications

RoHS Compliant: Restriction of Hazardous Substances directive conformance for global equipment deployment

Bulk Packaging: 500-piece bags and 5,000-piece cartons for fleet installations and OEM production lines

Edge-mount cable management traditionally required drilling and riveting—time-consuming on finished panels and impossible on thin-gauge material prone to distortion. Adhesive-backed mounts fail under thermal cycling and UV exposure. The CMSA24-2S-D300 eliminates both approaches with a spring-finger design that snaps onto panel edges between 3mm and 6mm thick. The integral tie mount on the lateral face orients cable bundles parallel to the mounting edge, keeping wire runs low-profile along enclosure seams, equipment chassis, and vehicle body panels. Black nylon 6.6 construction resists UV degradation in outdoor solar arrays and high temperatures in automotive underhood routing, while UL94V-2 flammability rating satisfies enclosed-equipment and mass-transit fire codes.

Installers deploying IP camera systems on building facades, solar inverter wiring on rooftop arrays, or access-control cabling through equipment racks encounter edges where traditional mounting methods add cost and risk. Drilling sheet-metal enclosures compromises weatherproofing and voids UL listings. Adhesive mounts lose bond strength above 70°C or under direct sunlight. The CMSA24-2S-D300's spring retention works on painted, powder-coated, and bare-metal edges without surface preparation. The pre-assembled tie mount accepts industry-standard cable ties (sold separately), securing MC cables, Cat6 bundles, and multi-conductor control wire in a single motion. For high-volume deployments—fleet vehicle upfits, OEM equipment assembly, or large-scale solar installations—the 500-count packaging and 5,000-piece carton quantities reduce reorder cycles and per-unit handling.

Common applications include security camera cable routing along building trim and HVAC enclosures, access-control wiring through cabinet seams, PoE switch deployments in outdoor equipment shelters, and photovoltaic DC-circuit wire management on solar mounting rails. The 16mm overall height and 14.7mm width maintain low clearance for tight-fit installations, while the 7.4-inch body length provides structural stability under cable tension. For integrators managing mixed-environment projects—indoor data centers, outdoor camera installs, vehicle surveillance systems—this edge clip delivers consistent performance across temperature extremes, UV exposure, and flammability-compliance requirements without tooling or consumable fasteners.
