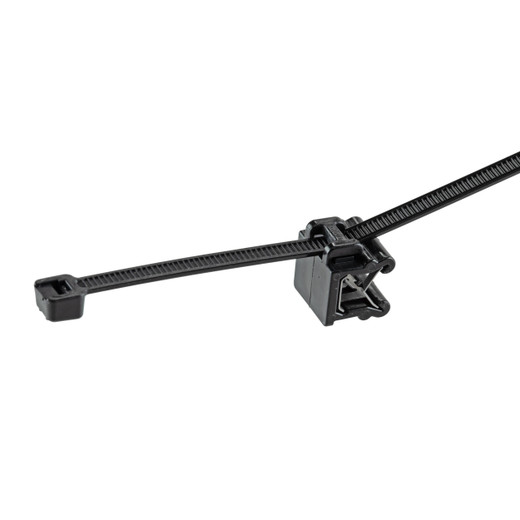

Panduit CMSA24-2S-C300 Edge Clip with Cable Tie Mount

The Panduit CMSA24-2S-C300 edge clip delivers tool-free cable harness mounting for automotive, rail, heavy equipment, and solar installations where drilling or adhesives aren't an option. Pre-assembled with an integrated cable tie mount, this nylon 6.6 clip secures and routes cables parallel to panel edges from 3mm to 6mm (0.118" to 0.236") thick, eliminating the need for separate fasteners or surface preparation. The lateral tie orientation keeps wire bundles flush against mounting surfaces, critical in vibration-heavy environments like commercial vehicles and industrial machinery.

Key Features

Pre-assembled cable tie mount with lateral orientation for parallel edge routing

Fits edge thicknesses from 3mm to 6mm (0.118" - 0.236") without drilling or adhesives

High-temperature and UV-resistant nylon 6.6 (PA 6.6) construction for outdoor and engine-bay applications

UL94V-2 flammability rating for electrical enclosure compliance

Black finish for professional appearance in visible installations

RoHS compliant for environmentally regulated deployments

Construction trades working on solar array cable management, fleet installers routing harnesses in commercial trucks, and rail maintenance crews dealing with vibration-prone wire runs all face the same challenge: securing cables to thin sheet-metal edges or composite panels without compromising the substrate. The CMSA24-2S-C300 addresses this with a snap-on design that grips edges mechanically through spring tension in the nylon body. The integrated tie mount sits on the lateral face, meaning your cable bundle runs parallel to the edge rather than perpendicular—essential when you're following a roofline, door frame, or equipment chassis where space behind the panel is limited. At 16mm tall and 14.7mm wide, the clip maintains a low profile that won't interfere with adjacent components or create snag points in maintenance access areas.

Material selection matters in harsh-environment installations. Panduit's choice of PA 6.6 nylon with UV and high-temperature stabilization gives this clip the thermal range to survive engine compartments, direct sunlight on solar installations, and the freeze-thaw cycles common in outdoor telecom cabinets. The UL94V-2 flammability rating qualifies it for use inside electrical enclosures where NEC and UL standards require flame-retardant wire management components. Competitor parts often use standard nylon without UV stabilizers, leading to brittleness and cracking after 18-24 months of sun exposure—a failure mode that's expensive to address on fielded equipment. The black colorant also contains carbon black UV absorbers, extending service life compared to natural or light-colored alternatives that degrade faster under UV exposure.

Each package contains 100 clips, with cartons available in 500-unit quantities for fleet rollouts or large solar farms. The integrated tie design eliminates the separate tie-procurement step and ensures every clip ships ready to install, reducing kit-preparation time on job sites. For automotive aftermarket installers adding auxiliary lighting or telematics harnesses, rail contractors securing signal cables along car bodies, or solar EPC firms managing DC combiner-box wiring, the CMSA24-2S-C300 provides a reliable, code-compliant edge-mount solution that installs in seconds and withstands years of environmental exposure.
