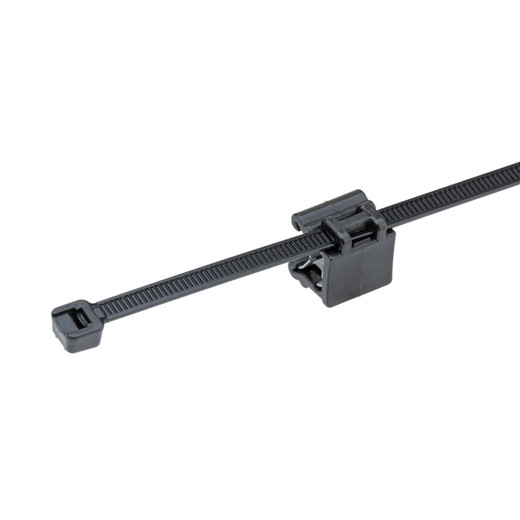

Panduit CMSB24-2S-C300 Edge Clip with Pre-Assembled Tie Mount

The Panduit CMSB24-2S-C300 edge clip eliminates the need for adhesives, drilling, or zip-tie fishing when securing cables to panel edges, equipment racks, or vehicle chassis. Pre-assembled with an integrated tie mount on the side face, this clip routes bundles perpendicular to edges measuring 3mm to 6mm (0.118" to 0.236") thick. The lateral tie orientation keeps harnesses aligned parallel to the mounting surface while the tool-free snap-on installation speeds deployment in high-volume automotive, transit, and solar installations where clean wire management without permanent fasteners is critical.

Key Features

Pre-assembled tie mount on lateral face for perpendicular bundle routing relative to the mounting edge

Tool-free snap-on installation on edges 3mm to 6mm thick—no drilling, adhesives, or secondary fasteners required

UV-stabilized, high-temperature nylon 6.6 for outdoor solar arrays, engine compartments, and transit applications

UL94V-2 flammability rating for electrical enclosures and rolling stock compliance

100 clips per package (500 per carton) for large fleet or array buildouts

RoHS compliant for European automotive and rail projects

The integrated tie seat positions the pre-installed cable tie perpendicular to the edge, creating a clean 90-degree turn that routes harnesses along the mounting surface without sagging or contact with sharp edges. This matters when you're running wire bundles along cabinet doors, equipment chassis, or vehicle body panels where traditional P-clips require drilling and adhesive mounts fail under vibration or temperature cycling. The nylon 6.6 formulation resists UV degradation in outdoor solar combiner boxes and withstands under-hood temperatures in commercial vehicle electrical builds, while the black finish blends into most OEM and aftermarket environments.

Designed for high-volume installations in automotive, heavy equipment, rail, and solar applications, the CMSB24-2S-C300 fits edges commonly found on stamped steel panels, aluminum extrusions, and composite enclosures. The 0.63" overall height and 0.52" width keep the installed profile low enough for tight clearances, and the snap-on design means a single technician can run harnesses without stopping to drill or wait for adhesive cure times. With 100 clips per package, you have enough inventory to standardize across a production run, fleet retrofit, or utility-scale solar installation without reordering mid-project.

UL94V-2 flammability certification meets electrical enclosure requirements for switchgear and control panels, while RoHS compliance clears the path for European automotive and transit builds. The CMSB24-2S-C300 sits between traditional drilling-required P-clips and adhesive-backed mounts that fail under thermal cycling—offering permanent retention without permanent modification to the substrate, which matters when warranty considerations or resale value prohibit drilling into OEM equipment.
