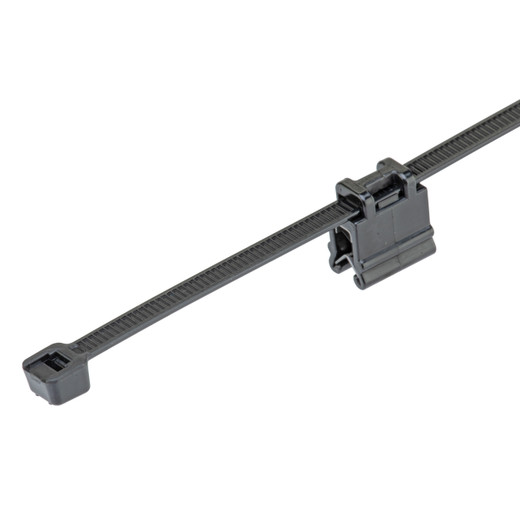

Panduit CMEB12-2S-D300 Edge Clip with Pre-Assembled Cable Tie Mount

The Panduit CMEB12-2S-D300 edge clip with integrated cable tie mount delivers tool-free wire routing on panel edges, equipment enclosures, and chassis without drilling holes or applying adhesives. Pre-assembled with a Panduit cable tie positioned for perpendicular or offset bundle orientation, this black nylon 6.6 clip accommodates edge thicknesses from 0.7mm to 3mm (0.028" to 0.118"), making it compatible with sheet metal, composite panels, and enclosure lips across automotive, rail transit, heavy equipment, truck cab, and solar array installations. The high-temperature and UV-stabilized material withstands prolonged outdoor exposure and under-hood environments where conventional adhesive mounts fail.

Key Features

• No-Drill Edge Mounting: Snap-on design grips panel edges from 0.7mm to 3mm without fasteners, adhesives, or surface preparation
• Pre-Assembled Cable Tie: Integral Panduit tie seated in top-mounted position for perpendicular or offset cable routing relative to mounting edge
• UV and High-Temperature Resistant: Polyamide 6.6 formulation rated for extended outdoor and elevated-temperature service in automotive and solar deployments
• UL94V-2 Flammability Rating: Self-extinguishing material meets UL94V-2 for enclosure and electrical equipment use
• Bulk Packaging: Available in 500-piece packages and 5,000-piece cartons for production runs and fleet installations
• RoHS Compliant: Meets EU RoHS directive for use in regulated markets and OEM production environments
• Versatile Application Range: Engineered for automotive harnesses, rail vehicle systems, heavy equipment cab wiring, truck chassis bundles, and photovoltaic combiner routing

Constructed from black polyamide 6.6 with UV stabilizers and high-temperature additives, the CMEB12-2S-D300 maintains grip and material integrity across -40°C to +85°C operating ranges typical of mobile equipment and outdoor installations. The clip body measures 7.4 inches overall length, 0.37 inches (9.4mm) width, and 0.62 inches (15.7mm) height, with an integral saddle that seats the pre-installed cable tie at the top edge. This top-mount tie orientation routes cables perpendicular to the mounting edge while maintaining offset clearance from the panel surface—critical for avoiding interference with adjacent components, enclosure doors, or equipment access panels. The snap-fit retention mechanism applies distributed pressure across the edge contact area rather than point loads, preventing edge deformation on thin sheet metal and composite substrates common in transportation and solar mounting structures.

Installation requires no surface prep, pilot holes, or curing time—installers simply position the clip over the target edge and press until the retention features engage. This eliminates the consumable cost and workflow delays associated with drilling, deburring, and adhesive application, while allowing repositioning during harness layout without leaving residue or damage. The pre-assembled tie configuration accelerates production line and field installation by consolidating the mount-and-secure steps into a single operation. In automotive and rail applications, the clips accommodate edge thickness variation across stamped sheet metal and extruded aluminum sections without requiring matched hardware sizes. For solar installations, the UV-resistant formulation survives multi-decade field exposure on combiner boxes, inverter enclosures, and array frames where adhesive-backed mounts delaminate under thermal cycling and moisture intrusion.

The UL94V-2 flammability rating and RoHS compliance make the CMEB12-2S-D300 suitable for safety-critical electrical enclosures and regulated OEM production environments. Bulk packaging in 500-piece retail packs and 5,000-piece cartons supports both field service operations and high-volume manufacturing lines. For integrators managing cable routing on equipment racks, vehicle builds, or outdoor infrastructure where edge-mount access exists but drilling is prohibited by substrate material, warranty terms, or installation speed requirements, this edge clip provides a code-compliant, reusable, and field-proven alternative to adhesive tie bases and drilled standoffs.
