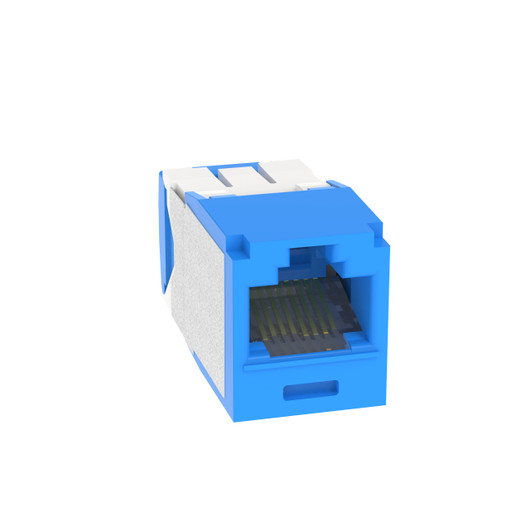

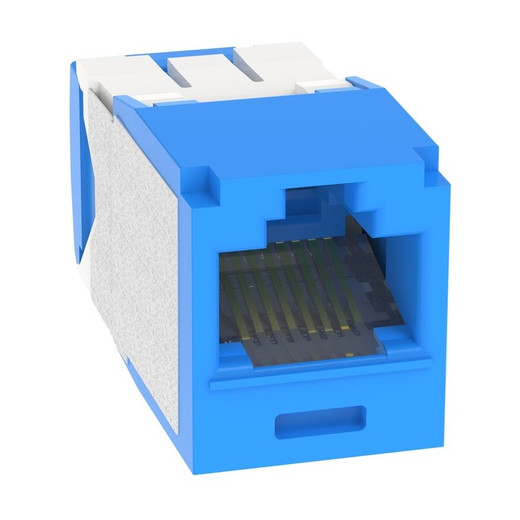

Panduit CJE6X88TGBU Cat 6A TG Jack - Blue

Panduit CJE6X88TGBU Cat 6A Corrosion-Resistant TG Jack Module

The Panduit CJE6X88TGBU Mini-Com Cat 6A UTP jack module delivers tool-less termination and corrosion-resistant protection for high-performance network infrastructure in harsh environments. Engineered with a polymer-based gel coating that shields internal contacts from moisture, salt spray, and corrosive elements, this jack module extends service life in coastal, industrial, and outdoor surveillance installations where standard copper terminations fail. Factory-tested to exceed TIA-568.2-D and ISO 11801 Category 6A performance requirements, the CJE6X88TGBU supports 10GBASE-T networks and PoE++ (IEEE 802.3bt Type 3 and Type 4) power delivery up to 90W—critical for powering high-wattage PTZ cameras, multi-sensor devices, and outdoor access points without separate AC drops.

Key Features

• Corrosion-resistant polymer gel protects contacts and internal components from moisture ingress and salt exposure
• Tool-less TG (Tighten Grip) termination eliminates the need for punchdown tools—faster deployment, lower skill threshold
• Cat 6A performance verified to 500 MHz—supports 10 Gbps Ethernet over twisted-pair copper up to 100 meters
• IEEE 802.3bt Type 3 and Type 4 compliant—delivers up to 90W PoE++ for high-power cameras, lighting, and wireless APs
• Rated for 2,500 connection cycles under PoE++ load—engineered for field-replaceable patch-panel environments
• Individually serialized for asset tracking and warranty traceability in large-scale deployments
• Mini-Com modular design—compatible with Panduit faceplates, surface-mount boxes, and high-density patch panels
• Blue housing for visual identification of Cat 6A infrastructure (follows TIA/EIA color conventions)

Corrosion resistance is the defining advantage of the CJE6X88TGBU in outdoor and industrial surveillance networks. The factory-applied gel layer encapsulates the IDC contacts and RJ45 spring contacts, creating a barrier against humidity, condensation, and airborne salts that degrade standard jack modules within 18–36 months in coastal or chemical-processing environments. Integrators deploying PoE-powered cameras in parking structures, port facilities, wastewater plants, or rooftop arrays face accelerated contact oxidation when using non-protected terminations—this jack module mitigates that failure mode without requiring conformal coating or sealed enclosures at every drop point. The TG termination mechanism uses a sliding cover that seats and locks conductors without impact tools, reducing installation time by 30–40% on high-outlet-count jobs and eliminating the risk of IDC damage from over-strikes. Field techs can terminate and test a drop in under 90 seconds with visual confirmation of conductor seating.

Performance headroom is built in for future-proofing: the CJE6X88TGBU is tested to 500 MHz and exceeds the 250 MHz requirement of TIA-568.2-D Cat 6A by a 2:1 margin, ensuring compliance even as insertion loss accumulates over the channel's service life. The jack's 2,500-cycle durability rating under PoE++ current load (up to 1.0A per pair) reflects Panduit's use of phosphor-bronze spring contacts with 50-microinch gold plating on the plug interface—critical when techs repeatedly connect test equipment or swap cameras during commissioning and troubleshooting. Standard Cat 6 jacks are rated for 750 cycles; this module's 3.3× higher endurance directly reduces patch-panel replacement cycles in colocation spaces, IDF closets, and field-accessible enclosures where port churn is routine. UL 2043 plenum rating allows installation in air-handling spaces without additional conduit, and RoHS compliance satisfies federal and state procurement requirements for low-VOC materials.

The Mini-Com form factor integrates with Panduit's modular faceplate and patch-panel ecosystem, enabling high-density terminations in 1U and 2U rack frames (up to 48 ports per panel) without tool interference or bend-radius violations. Each jack ships individually serialized with a machine-readable label for inventory management in multi-building campuses—scan the label during installation to log location, test results, and as-built cable ID into your DCIM or CMMS. Corrosion-resistant terminations, 10 Gbps throughput, 90W PoE++ delivery, and tool-less deployment converge in a single component designed for integrators who spec infrastructure to last 15+ years in environments where commodity hardware fails in three.
