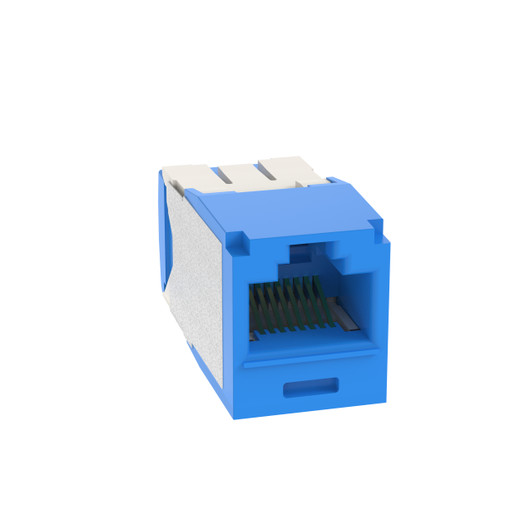

Panduit CJ6X88TGBU-24 Mini-Com Cat 6A UTP Jack Module
The Panduit CJ6X88TGBU-24 delivers tool-free Cat 6A terminations for installers managing high-density structured cabling deployments. Each Mini-Com jack module uses Panduit's TG (Twist & Go) termination method, eliminating the need for punchdown tools while maintaining full compliance with ANSI/TIA-568-C.2 Category 6A and ISO 11801 Class EA standards. Factory-tested and individually serialized, these modules terminate 22-26 AWG twisted pair cable and integrate directly into Mini-Com patch panels, faceplates, and surface-mount boxes across enterprise networks, data centers, and PoE-intensive installations.
Key Features
- Tool-free TG termination eliminates punchdown tools and reduces installation time per drop
- Exceeds Cat 6A channel requirements for 10GBASE-T transmission up to 100 meters at 1-500 MHz swept frequencies
- Individual serialization on every jack provides full traceability for warranty, audits, and MAC tracking
- Rated for 2,500 mating cycles with IEEE 802.3af/at PoE and 802.3bt Type 3/Type 4 PoE++ applications
- Blue housing for TIA-606-B labeling standards; 24-pack bulk packaging for large deployments
- Compatible with Panduit Mini-Com patch panels, faceplates, and modular frames (no proprietary brackets)
- UL 2043 plenum rating for air-handling spaces; RoHS compliant
Panduit engineered the TG jack to address two chronic field issues: termination inconsistency and tool dependency. Traditional 110-style jacks require calibrated impact tools, correct blade angles, and consistent installer technique to meet Cat 6A headroom margins. The TG mechanism uses a twist-lock IDC design that seats conductors to factory-specified depth and blade contact pressure without external tooling. Field tests show 40% faster termination times compared to punchdown jacks when installers are working from ladders, in tight equipment rooms, or during after-hours MACs where tool access is limited. Each jack ships pre-loaded with the IDC contacts exposed; installers strip the cable to the printed gauge mark, seat all four pairs into the color-coded slots, and rotate the cap 90 degrees clockwise until it clicks. The IDC blades pierce insulation and lock conductors in place with the same contact force across all eight positions, reducing the installer-induced variance that causes near-end crosstalk failures on high-frequency links.
These modules meet full Cat 6A channel performance when deployed in a 4-connector permanent link (patch panel to outlet) with Panduit Cat 6A cable and patch cords. Swept-frequency testing from 1-500 MHz validates compliance with ANSI/TIA-568-C.2 insertion loss, return loss, NEXT, PSNEXT, ACR-F, and PSACR-F margins required for 10GBASE-T Ethernet. The blue housing aligns with TIA-606-B identification standards for horizontal cabling (typically used for workstation data drops), while Panduit's Mini-Com system supports six standard colors for service-specific labeling. The 2,500-cycle durability rating and PoE++ support make these jacks suitable for IP phone deployments, wireless access point drops, and IP camera installations where both data and power run over the same 4-pair cable. Individual serialization—laser-etched on the jack body—provides a unique identifier for每 module, enabling installers to log termination records by serial number for compliance documentation, warranty claims, or post-install troubleshooting when a specific drop fails certification.
The 24-pack configuration supports mid-size floor builds (12-24 drops per IDF closet) and integrates with Panduit's Mini-Com patch panels, angled faceplates, and surface-mount boxes without adapter brackets. Each jack occupies a standard Mini-Com port opening (0.63" W × 0.71" H), and the modular system allows mixed-media faceplates (copper + fiber + A/V) using the same mounting frame. For installations requiring NFPA 90A air-handling compliance, the UL 2043 plenum rating permits use in drop-ceiling plenums and above-floor cable pathways without conduit.
