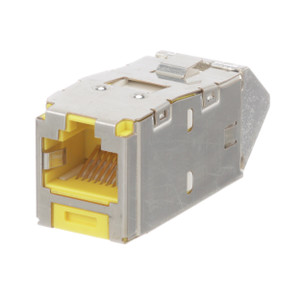

Panduit CJSUD6X88TGY Cat 6A Mini-Com Toolless Jack Module

The Panduit CJSUD6X88TGY is a Category 6A shielded toolless jack module engineered for high-density copper terminations in enterprise networks, datacenters, and surveillance infrastructures. This RJ45 Mini-Com module features a 45° up/down angled port orientation to optimize cable routing in tight enclosures, reducing bend radius violations and simplifying terminations in shallow back-boxes or crowded patch panels. Factory-tested to exceed ANSI/TIA-568.2-D and ISO 11801 performance requirements, it delivers 10GBASE-T support at full channel distances while maintaining backwards compatibility with Cat 5e and Cat 6 cabling plants.

Key Features

• Category 6A shielded (STP) performance — supports 10GBASE-T Ethernet to 100 meters, exceeds ANSI/TIA-568.2-D and ISO 11801 component and channel requirements
• Toolless TG-style termination — eliminates punchdown tools and speeds installation, accepts 22-26 AWG solid or stranded 4-pair cable with jacketed or unjacketed pairs
• 45° up/down angled port — reduces cable bend radius in shallow enclosures, improves cable management in high-density patch panels and surface-mount boxes
• IEEE 802.3bt Type 3/4 PoE rated — supports up to 90W PoE delivery for high-power devices (PTZ cameras, WAPs, building controllers) with full thermal and conductor spec compliance
• 2,500 mating cycles rated — exceeds IEC 60603-7 durability spec for high-use environments (labs, frequently reconfigured equipment closets, or troubleshooting-intensive networks)
• Mini-Com modular platform — integrates with Panduit faceplates, patch panels, surface-mount boxes, and consolidation points across voice, data, A/V, and building automation systems
• Individually serialized and factory-tested — each jack carries a unique traceable serial number for quality assurance and RMA tracking in mission-critical installations
• UL 1863 and UL 2043 plenum-rated — approved for air-handling spaces without additional conduit, simplifies code compliance in commercial ceiling and raised-floor deployments
• RoHS compliant — meets European hazardous substance directives for global deployment

The TG-style (tool-free) termination mechanism is Panduit's field-proven answer to installation labor costs in large-scale projects. Unlike traditional 110-style punchdown jacks that require impact tools and risk conductor damage from over-insertion, the CJSUD6X88TGY uses captive wire guides and a hinged cap that seats pairs into IDC contacts with hand pressure alone. Installers strip the cable jacket to the manufacturer's prescribed length (typically 0.5 inches), untwist pairs only as far as necessary to reach individual color-coded slots, and close the cap — termination complete. The mechanism maintains pair geometry and twist rates right to the contact point, which is critical for crosstalk suppression at 10GBASE-T frequencies (500 MHz). Factory testing validates each module against alien crosstalk (ANEXT), return loss, and insertion loss across the full 1–500 MHz spectrum, ensuring field performance matches lab specs even when installers with varying skill levels terminate cables on-site.

The 45° up/down port orientation solves a recurring problem in enterprise fit-outs: shallow wall boxes and crowded rack-mount panels where horizontal jacks force cables into sharp bends immediately behind the faceplate. By angling the port upward or downward (installer's choice depending on cable entry path), the CJSUD6X88TGY allows cables to exit the jack in the same plane as the enclosure depth, reducing bend radius violations that degrade signal integrity or fail inspection. This design is particularly valuable in surveillance IP camera installations, where Cat 6A cabling often terminates in single-gang boxes behind the camera with limited depth for service loops. The module's Mini-Com form factor means it mounts in any standard Panduit Mini-Com faceplate, patch panel insert, or surface-mount box — allowing integrators to standardize on one jack family across wall ports, consolidation points, and equipment room terminations. IEEE 802.3bt Type 3 and Type 4 PoE support (up to 90W) makes this module suitable for high-power endpoints including PTZ cameras with heaters, 802.11ax access points, and IP intercoms, eliminating separate power drops in new construction or retrofit projects.

Compliance with UL 2043 plenum rating allows direct installation in air-handling spaces without metal conduit, a significant cost and labor saver in commercial buildouts where cable trays run above suspended ceilings. The combination of factory serialization, 2,500-cycle durability rating, and standards-exceeding performance positions the CJSUD6X88TGY as a long-lifecycle component for integrators who warranty their cabling plants or support clients under long-term service contracts — you can trace any field failure back to a specific manufacturing lot, and the jack will survive repeated reconnections during troubleshooting or equipment swaps without degrading to out-of-spec performance.
