Panduit CJLR6X88TGVL Cat 6A Angled TG Jack Violet

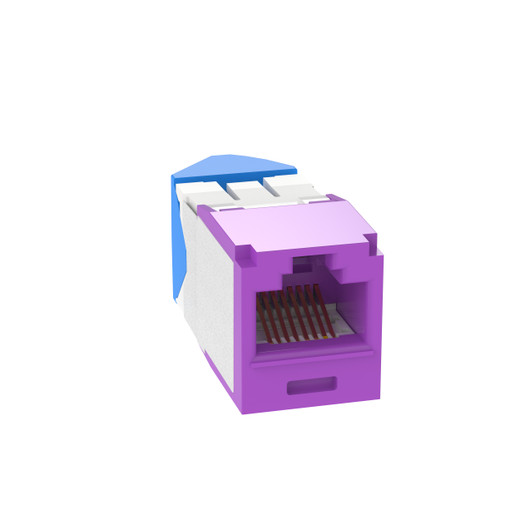

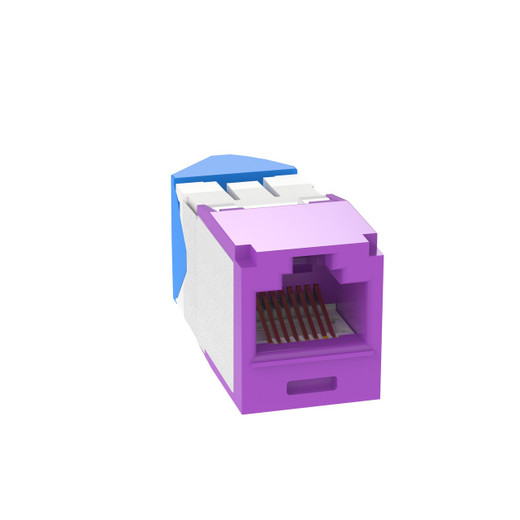

Panduit CJLR6X88TGVL Mini-Com® Cat 6A UTP RJ45 Left/Right Angled Jack Module

The Panduit CJLR6X88TGVL solves a persistent structured cabling problem: terminating Cat 6A in tight spaces where vertical cable entry creates kink radius violations. This Mini-Com® jack module features a 45° left/right angled entry that redirects twisted pair cable horizontally, eliminating bend-radius stress in shallow wall boxes, dense patch panels, and floor monument installations. The TG (tool-less termination guide) design accepts 22-26 AWG solid or stranded conductors without a punchdown tool—conductors snap into place and self-terminate via integrated contacts. Each unit ships factory-tested to exceed ANSI/TIA-568.2-D Category 6A channel requirements and carries an individual serial number laser-etched on the housing for full deployment traceability. Violet color-coding provides instant visual identification in multi-application installations where color segmentation is required for voice, data, or building automation circuits.

Key Features

• 45° angled cable entry (left/right orientation) eliminates bend-radius violations in shallow boxes and high-density panels
• TG tool-less termination—no punchdown tool required, conductors self-seat into IDC contacts for field terminations under 60 seconds per jack
• Factory tested to exceed ANSI/TIA-568.2-D and ISO/IEC 11801 Cat 6A component performance requirements—every jack ships with verified 500 MHz bandwidth
• Supports IEEE 802.3bt Type 3 (60W) and Type 4 (100W) PoE++ delivery over all four pairs for high-power edge devices (PTZ cameras, Wi-Fi 6E APs, IP intercoms)
• Rated for 2,500 connection cycles per IEC 60512-26-100 plug insertion/extraction testing—commercial-grade durability for active patching environments
• Individual laser-etched serial number on each jack for asset tracking, warranty claims, and post-install audit trails
• Mini-Com® universal form factor—compatible with all Panduit Mini-Com faceplates, surface boxes, and modular patch panels
• UL 1863 (Communications Circuit Accessories) and UL 2043 (plenum fire rating) listed; RoHS compliant
• Violet jacket matches TIA-606-C administration standard for optical fiber, auxiliary circuits, or custom segmentation schemes

Cat 6A performance at 500 MHz requires tighter tolerances than Cat 5e or Cat 6—alien crosstalk (AXT) between adjacent cables becomes a dominant impairment above 250 MHz, and connector pair-to-pair isolation must hold ≥40 dB to 500 MHz to support 10GBASE-T signaling over 100-meter permanent links. The CJLR6X88TGVL achieves this through precision-molded contact geometry that maintains 0.040" pair separation and a staggered IDC layout that minimizes capacitive coupling between transmit and receive pairs. Factory testing verifies insertion loss, return loss (≥20 dB to 500 MHz), near-end crosstalk (NEXT ≥45 dB at 500 MHz), and power sum alien NEXT across all pair combinations before the jack leaves production. This testing regime eliminates field failures caused by manufacturing variances—installers can deploy with confidence that every jack will pass Fluke DSX-8000 or Ideal SignalTEK II certification sweeps on the first attempt. PoE++ support extends beyond basic 802.3at (30W) to the newer 802.3bt Type 3 and Type 4 classifications, which deliver 60W and 100W respectively by utilizing all four pairs simultaneously. Contact plating and spring tension are engineered to handle continuous 960 mA per pair (Type 4 worst-case) without thermal derating, a critical requirement for outdoor PTZ cameras with integrated heaters, or high-bay LED fixtures powered over structured cabling.

The angled entry design addresses a mechanical constraint in modern commercial builds: shallow device boxes mandated by fire-rated drywall assemblies, and high-density patch panels where 48-port 1U configurations leave less than 1.5" of vertical clearance above terminated jacks. Standard straight-entry jacks force installers to bend Cat 6A cable—with its larger 0.350" overall diameter and reduced flexibility compared to Cat 5e—into a tight 90° turn immediately behind the connector, often violating the 4× diameter minimum bend radius specified in TIA-568.2-D Annex A. Repeated radius violations cause pair untwisting, which degrades NEXT margins and can push installed channels below the Cat 6A performance floor. The CJLR6X88TGVL's 45° entry redirects cable laterally as it exits the IDC block, spreading the directional change over 1.2" of jack depth and maintaining >1.4" bend radius under worst-case routing. In patch-panel deployments, this translates to cleaner horizontal cable management and eliminates the need for oversized rear cable managers that consume rack depth. TG termination uses color-coded conductor slots and a hinged cap that guides each wire into its corresponding insulation-displacement contact—installers strip 1.25" of jacket, untwist pairs to the color-coded depth markers, press conductors into the TG block, and close the hinged cover to simultaneously seat all eight conductors and trim excess wire. The process requires no specialized tool calibration, eliminates punchdown fatigue on large deployments, and produces consistent electrical performance because contact engagement depth is mechanically controlled by the TG housing rather than installer technique. Mini-Com compatibility ensures the jack drops into any Panduit Mini-Com faceplate (1-port to 6-port configurations), surface-mount box, or modular patch panel without adapters—a field-proven ecosystem used across healthcare, education, and enterprise datacenter builds where mix-and-match flexibility and future outlet reconfiguration are design requirements.

Every CJLR6X88TGVL carries a unique laser-etched serial number on the connector body, providing end-to-end traceability from manufacturing lot to installed outlet. For integrators managing structured cabling systems under ISO 9001 quality frameworks, or supporting clients with SOC 2 audit requirements, this serialization enables precise warranty claims ("jack S/N 1A23456 in Room 304 Outlet B failed certification"), simplifies post-install punch-list tracking, and supports forensic analysis when intermittent link faults occur years after deployment. Violet color-coding aligns with TIA-606-C administration standards where violet designates auxiliary or special-purpose circuits—common uses include building automation VLANs, isolated voice trunks, or fiber-to-the-desk handoff points in converged copper/fiber architectures. The combination of tool-less termination, angled cable management, and PoE++ support makes the CJLR6X88TGVL the go-to choice for high-density IP surveillance headend racks, IDF retrofits in historic buildings with shallow wall cavities, and any Cat 6A installation where 10 Gb/s performance and 100W PoE delivery must coexist with physical space constraints that would otherwise force cable radius compromises.
