Panduit CJUD6X88TGGR Cat 6A TG Jack Green

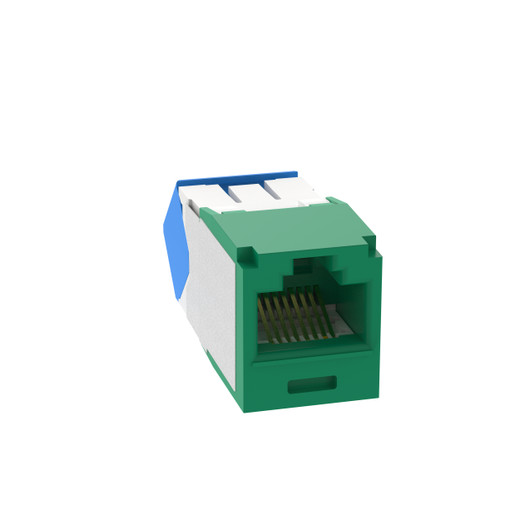

Panduit CJUD6X88TGGR Cat 6A UTP Mini-Com Jack Module

Panduit CJUD6X88TGGR is a Category 6A UTP modular jack designed for high-density structured cabling installations where space is constrained and 10GBASE-T performance is required. The 45° angled up/down port orientation improves cable routing in shallow wall boxes, under-floor plenums, and densely populated patch panels. Tool-less TG termination eliminates punch-down tools and speeds deployment in multi-drop rollouts. Each jack is factory-tested to exceed ANSI/TIA-568.2-D component requirements and ships with an individual serial number for asset tracking and warranty claims. This module integrates into Panduit's Mini-Com faceplate and distribution systems, supporting PoE++ (IEEE 802.3bt Type 3 and 4) for IP cameras, access points, and powered devices up to 90W.

Key Features

• Cat 6A UTP performance — supports 10GBASE-T to 100 meters, backward compatible with Cat 6/5e networks
• 45° angled up/down port orientation — reduces cable bend radius in shallow enclosures and improves strain relief
• TG (Tool-less) termination style — color-coded wiring cap snaps down without punch-down tool, cuts termination time by ~40% vs. traditional jacks
• Factory tested and serialized — every jack exceeds industry component specs and carries a unique serial number for traceability
• Mini-Com modular platform — fits all Panduit Mini-Com faceplates (single/double/4-port/6-port), surface boxes, and patch panels
• PoE++ rated — 2500 mating cycles tested with IEEE 802.3bt Type 3 and 4 (up to 90W), ideal for PTZ cameras and 802.11ax access points
• 22-26 AWG wire termination — accommodates standard solid or stranded premise wire
• Green color-coded — quick visual identification in mixed-port environments or color-coded VLAN schemes
• UL 2043 plenum rated — approved for use in air-handling spaces without additional conduit

The CJUD6X88TGGR delivers 500 MHz bandwidth with alien crosstalk mitigation, meeting ANSI/TIA-568.2-D Category 6A component requirements and ISO/IEC 11801 Class EA channel specs when paired with Cat 6A cable. The TG termination design uses a hinged cap with integrated conductor seats — strip the cable jacket to 1 inch, untwist pairs minimally, lay conductors into the color-coded slots, and snap the cap down. The cap's compression plate simultaneously seats all eight conductors and trims excess wire flush with the jack body. No impact tool, no guesswork on punch depth, and consistent termination force across all pairs. This matters in high-volume deployments where technician skill varies or when retrofit work requires fast turnaround in occupied buildings. The 45° port angle redirects the patch cord downward (or upward, depending on jack orientation) rather than straight out, reducing the effective depth required behind faceplates by ~0.6 inches compared to straight-port jacks — critical in shallow Carlon or Allied Moulded boxes common in drywall retrofits.

Deploy the CJUD6X88TGGR in IP camera installations where integrators need to terminate Cat 6A drops at camera locations, particularly with multi-sensor or PTZ models that draw 60-90W over PoE++. The green color simplifies documentation when mixing data (blue), voice (white), and camera (green) jacks in the same faceplate. Pair with Panduit Mini-Com faceplates (part numbers CFPE series) for single-gang wall terminations, or insert into modular patch panels (CPP series) for equipment-room aggregation. The jack's 2500-cycle rating exceeds the 750-cycle minimum in TIA-568.2-D by over 3×, ensuring reliable mating in environments where cameras are frequently swapped during testing, commissioning, or troubleshooting. UL 1863 certification confirms compliance with communications circuit safety requirements, and UL 2043 plenum rating permits installation in drop-ceiling plenums without additional conduit — reducing labor and material cost in office or hospital retrofits. RoHS compliance meets California Title 20 and federal procurement lead-free mandates.

This jack is spec'd for projects requiring 10 Gbps copper infrastructure to future-proof camera networks, support 4K/8K NVR uplinks, or meet BICSI DCDC-002 datacenter standards for horizontal copper. The individually serialized design simplifies CMMS integration and warranty lookups — scan the serial number during installation to auto-populate asset management systems, and reference the same serial when opening support cases with Panduit or during post-install certification audits. The Mini-Com ecosystem provides consistent mechanical interface across faceplates, panels, and surface boxes, so a single termination training session covers wall jacks, consolidation points, and rack terminations.
