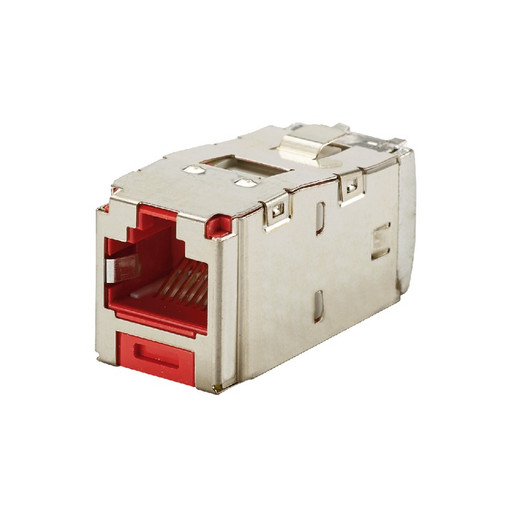

Panduit CJS6X88TGRDY Mini-Com Cat 6A Shielded RJ45 Jack Module
The Panduit CJS6X88TGRDY delivers tool-less Cat 6A shielded termination for high-density structured cabling installations where speed and shielding continuity matter. Built for 22–26 AWG shielded twisted pair, this Mini-Com module uses TG (tool-less termination) to eliminate punchdown tools and the inconsistent contact pressure they create. Each jack is factory-tested to exceed ANSI/TIA-568.2-D and ISO 11801 Cat 6A requirements, individually serialized for end-to-end traceability, and rated for 2,500 connection cycles under IEEE 802.3bt Type 3 and Type 4 PoE++ loads. Red housing provides instant visual identification in multi-service patch panels and faceplates.
Key Features
- TG tool-less termination — color-coded wire guides and integrated strain relief eliminate the need for impact tools and reduce termination time per drop
- Shielded 360° — metal shield pairs with shielded cable and grounded patch panels to maintain end-to-end electromagnetic compatibility in high-interference environments
- PoE++ rated for 2,500 cycles — tested under IEEE 802.3bt Type 3 (60W) and Type 4 (100W) loads; contacts maintain compliance through repeated camera, AP, and lighting reconnections
- Individually serialized — laser-etched serial numbers support per-jack documentation in DCIM and cable management systems
- Mini-Com universal compatibility — drops into all Panduit Mini-Com patch panels, surface boxes, and faceplates without adapters or bezels
- Exceeds Cat 6A channel and component specs per ANSI/TIA-568.2-D, ISO 11801, and IEC 60603-7
- UL 2043 plenum rated and RoHS compliant
TG termination uses a sliding cap that seats conductors into insulation-displacement contacts without punchdown impact. The installer strips the cable jacket, untwists pairs to the color-coded guide, closes the cap, and trims — no 110 tool, no over-punch risk, no contact damage from repeated strikes. The integrated strain relief clamps the cable jacket, not the conductors, transferring pull force to the module body and preserving pair geometry up to the contact point. This matters in Cat 6A deployments where alien crosstalk margins are tight and any pair deformation degrades NEXT and FEXT performance. The metal shield mates with shielded cable braid and grounded patch panel backplanes, creating a continuous Faraday cage from switch port to endpoint — critical in healthcare imaging suites, industrial control networks, and RF-dense venues where unshielded jacks pick up EMI and fail intermittently under error-correction load.
The 2,500-cycle rating under PoE++ reflects Panduit's contact spring geometry and plating durability. Standard RJ45 jacks are tested to 750 cycles; this module exceeds that by 3× while maintaining contact resistance and insertion loss under continuous 60W and 100W PoE delivery. Integrators deploying high-power PTZ cameras, 802.11ax access points, and LED luminaires can document a plug/unplug service life that covers years of MAC adds/moves/changes without performance fallback. The red housing provides instant visual coding — common uses include IP camera networks (red = video), out-of-band management (red = OOB), or fire/life-safety (red = critical). The serialized label maps to as-built documentation, letting techs trace a failed link from switch port to wall jack to specific module serial number without toning or visual inspection. Compatible with all Mini-Com patch panels, surface boxes, and angled/flat faceplates, the CJS6X88TGRDY slots into existing Panduit infrastructure without adapters, saving board space in high-density IDFs and equipment racks.
Sold individually (carton quantity 50 for volume orders). Exceeds ANSI/TIA-568.2-D and ISO 11801 Category 6A component and channel requirements, meets IEC 60603-7 mechanical and electrical specs, and carries UL 1863 and UL 2043 plenum ratings for air-handling spaces. RoHS compliant. For shielded Cat 6A installations requiring tool-less termination, per-jack traceability, and long-term PoE++ durability in color-coded networks, the CJS6X88TGRDY delivers field-proven performance in a format that integrates directly into the Mini-Com ecosystem.
