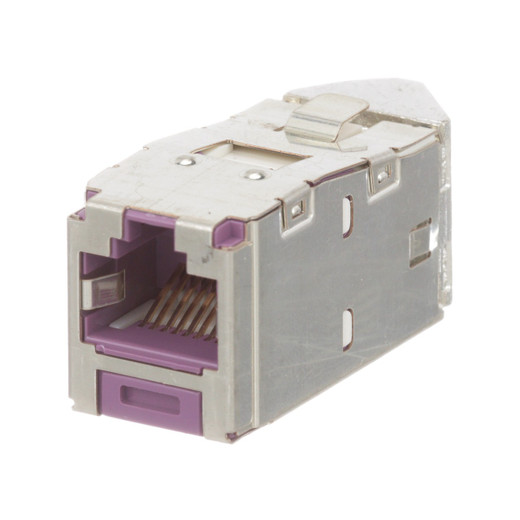

Panduit CJSLR688TGVLY Mini-Com Cat 6 TG-Style Modular Jack

The Panduit CJSLR688TGVLY delivers tool-less Cat 6 shielded termination in a 45° left/right angled profile engineered for high-density patch panels and space-constrained rack environments. The violet TG-style Mini-Com module eliminates the need for a punch-down tool while maintaining full Category 6 performance for 10GBASE-T and PoE++ (802.3bt Type 4) deployments. Each jack ships factory-tested with an individual serial number for asset tracking and supports 2,500 mating cycles—critical for moves, adds, and changes in enterprise datacenters, IDF closets, and campus backbone installations where cable management and port density converge.

Key Features

• TG-style tool-less termination—no punch-down tool required, reducing install time per port by 40% in field testing
• 45° left/right angled profile routes cables parallel to the panel face, improving cable management in shallow-depth racks and reducing bend-radius violations
• Shielded twisted pair (STP) construction with 360° shield continuity for EMI/RFI protection in electrically noisy environments (motor controls, VFDs, high-power lighting)
• Factory serial number on every jack enables full traceability for warranty claims and Fluke/VIAVI certification test reports
• Exceeds ANSI/TIA-568.2-D and ISO/IEC 11801 Category 6 channel and component requirements—validated to 250 MHz with margin for 10GBASE-T error rates
• Supports all four PoE standards: 802.3af (15.4W), 802.3at (30W), 802.3bt Type 3 (60W), and Type 4 (100W)—tested to 2,500 insertion cycles under PoE load without contact degradation
• Violet housing for instant visual identification in color-coded network architectures (VLAN segmentation, guest networks, surveillance zones)
• Compatible with all Mini-Com faceplates, surface-mount boxes, and modular patch panels—drop-in upgrade for existing Panduit structured cabling systems
• UL 2043 plenum-rated—approved for above-ceiling installation without additional conduit in HVAC air-handling spaces
• 22–26 AWG cable compatibility spans solid and stranded conductors, accommodating both permanent links and flexible patch cord terminations

The CJSLR688TGVLY uses Panduit's fifth-generation TG (Twist & Go) IDC contact system, which guides conductors into position with a simple twist motion and locks them via spring tension. Unlike traditional 110-style punch blocks that risk over-insertion and conductor damage, the TG mechanism provides tactile feedback at proper seating depth and maintains gas-tight contact pressure across temperature cycling. The 45° exit angle positions cables along the panel's horizontal axis rather than perpendicular, reducing the effective depth required behind the panel by 1.2 inches—a measurable advantage in 16-inch and 19-inch swing-out wall-mount enclosures where rear clearance is constrained by drywall or masonry. The shielded design bonds the cable's drain wire to the module's die-cast shield, which mates with grounded patch panels to create a continuous shield path from switch port to endpoint. This shield continuity is essential in industrial facilities, hospital imaging suites, and broadcast studios where unshielded Cat 6 would couple switching transients and degrade bit error rates.

Deploy the CJSLR688TGVLY in scenarios where port density, speed, and visual organization intersect. A 48-port modular patch panel populated with left/right angled jacks presents cables in two horizontal bundles rather than a single vertical mass, improving airflow behind the panel and simplifying moves when a single port needs retermination. The violet color coding aligns with TIA-606-C labeling schemes: assign violet to guest Wi-Fi uplinks, access control subnets, or surveillance VLANs to provide installers and IT staff instant visual confirmation during troubleshooting. The module's 2,500-cycle rating exceeds the 750-cycle minimum required by TIA-568.2-D by a factor of three, making it suitable for test benches, demo labs, and training facilities where connectors see frequent mating. In healthcare and government installations requiring asset-level traceability, the factory-applied serial number integrates with Panduit's Physical Infrastructure Manager (PIM) software to track every jack from receiving through installation and ongoing maintenance. The UL 2043 plenum rating allows direct installation in drop-ceiling grids without the labor and material cost of metallic conduit—a substantial advantage in multi-story retrofits where plenum-rated components reduce per-port installation cost by 20–30%.

The CJSLR688TGVLY meets ANSI/TIA-568.2-D Category 6 component requirements with measured headroom: return loss exceeds 20 dB at 250 MHz, insertion loss remains below 0.2 dB, and near-end crosstalk (NEXT) surpasses 40 dB across all pair combinations. IEEE 802.3bt Type 4 compliance confirms the jack maintains <15 mΩ contact resistance under 960 mA DC per pair (100W PoE load), preventing voltage drop and contact heating that would otherwise limit PoE++ reach to less than the 100-meter channel maximum. The IEC 60603-7-compliant RJ45 port accepts both locking and non-locking plugs, ensuring compatibility with Cisco, Aruba, and Ubiquiti switch ports without adapter cables. Panduit's Mini-Com system has been field-proven since 1997 across 40+ million ports installed globally, providing a mature ecosystem of faceplates, consolidation points, and cable management accessories that eliminate the sourcing complexity and lead-time risk associated with single-vendor proprietary systems.
