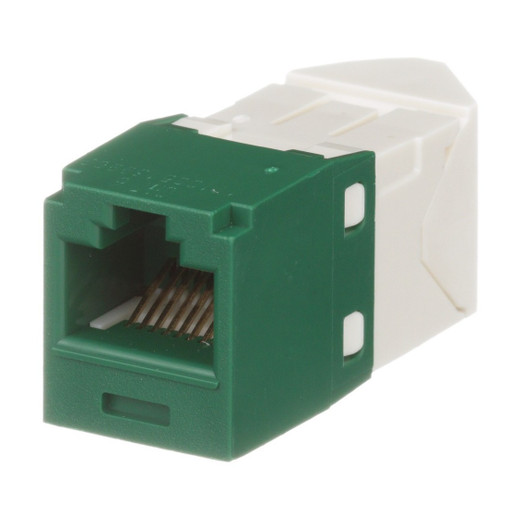

Panduit CJLR688TGGR Mini-Com Cat 6 UTP RJ45 Left/Right Angled TG Jack Module

The Panduit CJLR688TGGR addresses a persistent problem in high-density structured cabling: maintaining Cat 6 performance and proper bend radius when patch-panel real estate forces jacks into tight quarters. This Mini-Com jack module uses a 45° left/right angled design to route cable parallel to the mounting surface rather than perpendicular, cutting the clearance footprint in half while preserving TIA-568.2-D channel performance. TG tool-less termination eliminates punchdown tools entirely—strip, seat, and snap the cap. Each module ships factory-tested with individual serialization for infrastructure documentation and change-order traceability.

Key Features

• 45° left/right angled port orientation reduces rear clearance requirements by ~50% compared to straight jacks, enabling installation in shallow surface-mount boxes and dense patch panels
• TG (Tool-less Termination Guaranteed) design accepts 22-26 AWG solid or stranded cable without punchdown tools—color-coded wire guides and snap-on cap provide gas-tight IDC connections in under 30 seconds per jack
• Exceeds ANSI/TIA-568.2-D and ISO/IEC 11801 Category 6 component and channel requirements with margin for 1000BASE-T, 2.5GBASE-T, and 5GBASE-T Ethernet
• Supports IEEE 802.3af (15.4W PoE), 802.3at (30W PoE+), and 802.3bt Type 3 (60W) and Type 4 (100W PoE++) power delivery over all four pairs for high-wattage access points, PTZ cameras, and LED lighting
• Rated for 2,500 connection cycles per IEC 60603-7—approximately 5× the lifecycle of consumer-grade keystone jacks—suitable for moves/adds/changes in active data centers and staging environments
• UL 2043 plenum rating for air-handling spaces; UL 1863 Listed; RoHS compliant for EU and California installations
• Individual serialization laser-etched on each module enables as-built documentation and automated inventory tracking via barcode scanner
• Green housing supports TIA-606-C color-coding standards for voice, auxiliary, or network segregation in converged infrastructures
• Universal Mini-Com form factor fits all Panduit modular patch panels, faceplates, and surface-mount boxes without adapters

The 45° angled port solves the geometric problem created by high-density 48-port 1U patch panels and shallow wall-mount boxes: a straight RJ45 jack requires roughly 2.5 inches of rear clearance to accommodate the plug body and minimum bend radius for Cat 6 cable (4× cable diameter, or ~1 inch for 24 AWG). The left/right orientation of the CJLR688TGGR routes cable parallel to the panel, reducing rear depth to under 1.25 inches while maintaining the 35mm bend radius required to preserve pair geometry and return loss performance above 200 MHz. This makes the module viable for retrofit installations in existing equipment racks where rear access is obstructed by cable trays, and for surface-mount boxes in finished spaces where a low-profile aesthetic is required. The angled design also improves airflow in enclosed panels by eliminating the dense cable bundle that forms behind straight jacks.

TG termination is Panduit's tool-less IDC system: the jack body has color-coded wire channels matching T568A/B standards; you strip 1 inch of jacket, seat each conductor in its channel, verify seating via the inspection window, and snap the captive termination cap down. The cap's cam mechanism drives each wire into a dual-blade IDC contact that pierces insulation and creates a gas-tight connection rated for 2,500 insertions—critical for PoE++ applications where contact resistance directly affects power delivery efficiency and heating. Because the IDC blades are enclosed after termination, there's no risk of jacket shards or wire ends causing shorts in adjacent jacks, a common failure mode in dense 48-port panels terminated with traditional punchdown tools. Field termination time averages under 30 seconds per jack; integrators report 40–60% labor reduction on large office or MDU deployments compared to traditional 110-style termination.

The module's Cat 6 performance is tested to exceed TIA-568.2-D Category 6 component limits across insertion loss, return loss, NEXT, PS-NEXT, ELFEXT, and PS-ELFEXT from 1–250 MHz, with sufficient margin to support 2.5GBASE-T and 5GBASE-T Ethernet over 100-meter permanent links when paired with Panduit Cat 6 cable and patch cords. PoE++ (802.3bt Type 3 and Type 4) support is validated across all four pairs simultaneously at maximum current, ensuring the module can deliver 60W or 100W to high-power devices—PTZ cameras with heaters and wipers, 802.11ax access points, and IP intercoms—without exceeding the 10°C temperature rise limit that degrades insertion loss. The 2,500-cycle durability rating is verified per IEC 60603-7 by mechanically mating and de-mating RJ45 plugs while monitoring contact resistance; consumer-grade jacks typically fail this test at 500–750 cycles. UL 2043 plenum rating means the module can be installed in air-handling spaces without additional conduit or enclosures, a requirement in healthcare, education, and government facilities.

This jack is part of Panduit's Mini-Com modular system, which uses a universal form factor compatible with the company's entire line of patch panels (flush-mount, angled, and high-density), faceplates (1-port to 12-port), and surface-mount boxes. The green housing aligns with TIA-606-C color-coding for auxiliary circuits or network segregation (common uses: guest Wi-Fi, building automation, or VoIP on a separate VLAN), though integrators also deploy color as a visual identifier for left/right vs. up/down angled jacks in mixed panels. Each module's laser-etched serial number supports automated inventory tracking and as-built documentation—critical for data centers and co-location facilities where MAC orders require per-port traceability. The CJLR688TGGR ships individually; carton quantity is 50 units for staging large deployments. When rear clearance or cable-management constraints rule out straight jacks, the left/right angled TG design delivers field-termination speed, full Cat 6 performance, and PoE++ power handling in a form factor that fits where traditional jacks cannot.
