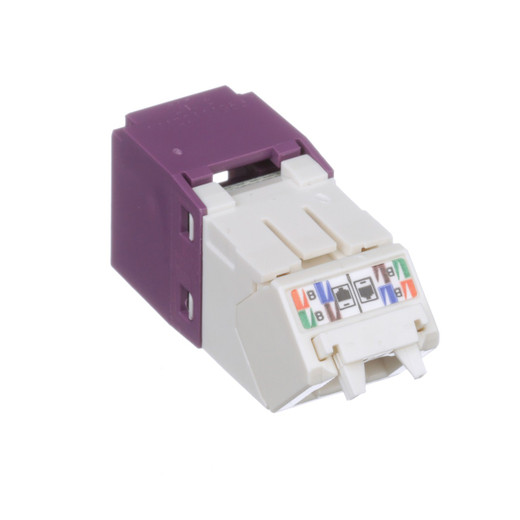

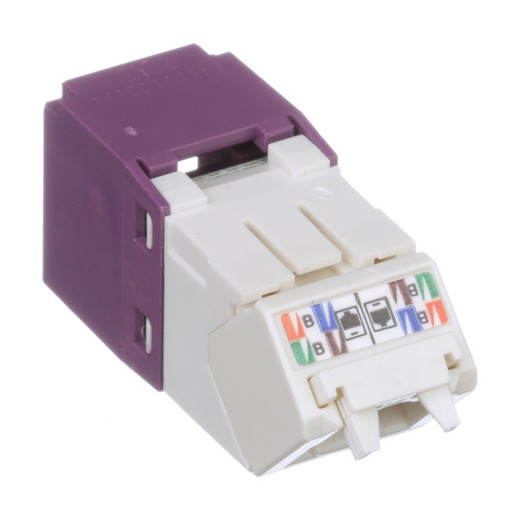

Panduit CJUD688TGVL Cat 6 45° Angled TG Jack Module

Panduit CJUD688TGVL Mini-Com Cat 6 Up/Down Angled TG Jack Module

Panduit's CJUD688TGVL solves cable-routing challenges in high-density patch-panel and faceplate installations where standard straight-orientation jacks create bend-radius violations or cabinet-depth problems. The 45° Up/Down angled jack module redirects patch cords away from adjacent ports and tight enclosure walls, maintaining Cat 6 performance while improving accessibility. Tool-less TG termination eliminates punchdown errors and speeds deployment on retrofit projects where you're working from a ladder or in cramped telecoms closets. Factory serialization on every jack provides asset-tracking and warranty traceability for commercial security and enterprise network installations.

Key Features

• 45° angled RJ45 orientation redirects cables up or down for tight-space routing and strain relief
• Tool-less TG termination accepts 22-26 AWG twisted-pair cable without punchdown tool or impact blade
• Exceeds ANSI/TIA-568.2-D and ISO 11801 Cat 6 component and channel performance requirements
• Factory serialized jack bodies enable asset tracking, MAC auditing, and warranty traceability
• Rated for 2500 mating cycles under IEEE 802.3bt Type 3/4 PoE loads (up to 90W continuous)
• Violet insulator matches TIA-606-B color coding for specialized network segments or VLAN identification
• Drop-in compatible with all Panduit Mini-Com modular panels, faceplates, and surface-mount boxes
• UL 2043 plenum-rated and RoHS compliant for commercial building code requirements

The TG (tool-less) termination system uses a spring-loaded IDC contact design that seats conductors with finger pressure alone—no 110 blade, no Krone tool. You strip the cable jacket, untwist pairs to the color-coded wire guides, press conductors into the channels until they click, and snap the hinged cap closed. The cap's locking mechanism compresses all eight conductors simultaneously and trims flush in one motion. This method eliminates the punchdown-angle errors and partial-seating issues that cause intermittent crosstalk failures on traditional 110-style terminations, and it's faster when you're working overhead in a ceiling or inside a cramped equipment rack. Each jack ships 100% factory tested to 500 MHz, with swept-frequency insertion loss, return loss, and crosstalk measurements logged and verified against TIA-568.2-D Category 6 limits. The serialized housing laser-etches a unique alphanumeric code on the jack body, so you can log MAC addresses and physical jack IDs together during commissioning and track individual terminations across adds, moves, and changes.

The 45° Up/Down orientation addresses two recurring install problems: patch-cord bend radius in shallow wall boxes, and congestion in high-density patch panels where 48 straight jacks leave no room for fingers or cable-management hardware. The angled body routes patch cords parallel to the faceplate or panel surface, reducing the effective depth by roughly 1.25 inches compared to a straight jack plus a 90° service loop. In security installations, this matters when you're mounting a 2-gang faceplate for IP camera and access-control drops inside a 2.5-inch-deep box—straight jacks force the cables into a kink that fails bend-radius specs, while the angled module routes them cleanly along the box floor. The jack supports all current PoE standards, including 802.3bt Type 3 (60W) and Type 4 (90W), with contact plating and spring force rated for 2500 insertion cycles under continuous power load. For IP camera networks running PoE++ heaters or PTZ motors, that durability rating is 3× the 750-cycle minimum in IEC 60603-7, and it ensures the jack tolerates repeated patch-cord changes during troubleshooting or camera upgrades without contact degradation. The violet insulator is molded from UL 94 V-0 polycarbonate and follows TIA-606-B color conventions, typically used for specialized networks (e.g., dedicated security VLANs, out-of-band management ports) or to differentiate jack types in mixed deployments where you're running Cat 6 voice and Cat 6A surveillance on the same panel.

Mini-Com modularity means you can mix this jack with Panduit's fiber adapters, blank inserts, and other copper modules in the same faceplate or patch panel without tools or adapter brackets, and swap modules in the field as requirements change. The CJUD688TGVL meets UL 1863 for communications cables, UL 2043 for air-handling spaces (plenum installations), and RoHS material restrictions, covering the compliance surface for commercial tenant-improvement and datacenter projects. The 2500-cycle rating and factory serialization put it a step above commodity keystones for integrator-grade installations where you need documented performance and long-term reliability.
