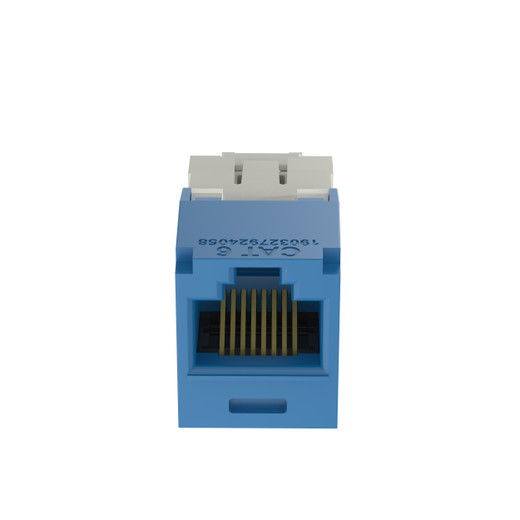

Panduit CJ688TGBU-24 Mini-Com Cat 6 UTP RJ45 TG Jack Module - Blue (24-Pack)
The Panduit CJ688TGBU-24 delivers tool-free Cat 6 termination for structured cabling contractors and network installers who need speed without sacrificing performance. Part of the Pan-Net Mini-Com system, this blue RJ45 jack module uses TG (tool-less) termination technology to eliminate punch-down tools while maintaining full Cat 6 performance specifications up to 250 MHz. Each module is factory-tested and individually serialized for end-to-end traceability—critical for documentation requirements in enterprise, healthcare, and government installations. Ships 24 modules per package.
Key Features
- Tool-free TG termination - no punch-down tool required, reduces install time and repetitive strain
- Factory tested to exceed ANSI/TIA-568.2-D Cat 6 and ISO 11801 Class E standards at 1-250 MHz
- 10GBASE-T support up to 100 meters in 4-connector configuration
- Individually serialized for asset tracking and documentation compliance
- PoE++ rated for IEEE 802.3bt Type 3 and Type 4 (up to 90W) applications
- 2,500 mating cycle rating for high-traffic patch environments
- Compatible with all Mini-Com modular patch panels, faceplates, and surface-mount boxes
- Blue housing for easy visual circuit identification and color-coded network schemes
- Accepts 22-26 AWG 4-pair twisted pair cable
- UL 1863 and UL 2043 plenum rated, RoHS compliant
TG termination architecture eliminates the most common field failure point in keystone jack installations: inconsistent punch-down force. The tool-less design uses a precisely engineered cam mechanism to seat conductors at factory-specified IDC contact pressure, delivering consistent electrical performance across every termination regardless of installer experience level. Each module meets ANSI/TIA-1096-A component requirements and exceeds channel performance specifications when deployed with Panduit Cat 6 cable and patch cords. The serialized labeling provides a unique identifier for every jack, enabling asset management systems to track physical layer infrastructure from the patch panel to the work area outlet—essential for DCIM integration, MAC change documentation, and compliance audits in regulated industries.
High-density installations benefit from the Mini-Com modular form factor, which fits standard keystone openings and integrates with Panduit's ecosystem of angled adapters, blank inserts, and multi-port faceplates. The blue color coding aligns with TIA-606-C administration standards for horizontal data circuits, simplifying visual circuit tracing during troubleshoots and MAC work. These modules support the full PoE++ power budget (802.3bt Type 4, 90W) without derating, making them suitable for current-generation access points, PTZ cameras, and LED lighting controllers that pull maximum power over 4-pair. The 2,500-cycle contact rating exceeds standard keystone specs by 150%, addressing high-churn environments like conference rooms, hoteling spaces, and lab benches where frequent plug/unplug cycles are routine. For deployments requiring documented performance and verifiable traceability, the CJ688TGBU-24 delivers Panduit's enterprise-grade reliability in a format that accelerates installation without field-testing every termination.
