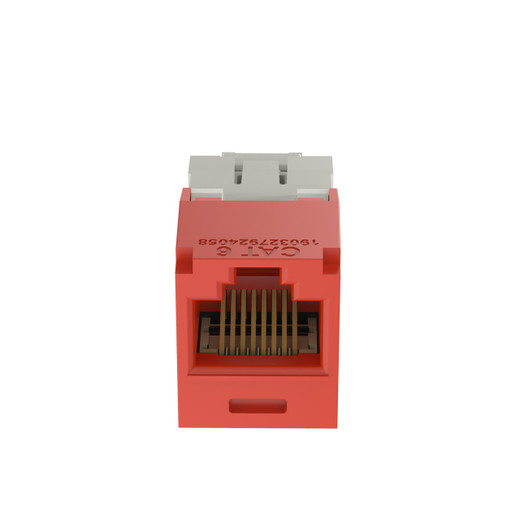

Panduit CJ688TGRD Mini-Com® Cat 6 UTP RJ45 TG Jack Module

Panduit's CJ688TGRD delivers field-termination speed without sacrificing Cat 6 performance. The TG (Tool-less Termination) design eliminates punch-down tools—conductors lock into IDCs with finger pressure, cutting install time on patch panels and wall plates. Factory-tested to exceed ANSI/TIA-568.2-D Category 6 and ISO 11801 Class E at swept frequencies up to 250 MHz, each module ships serialized for asset tracking and is rated for 2,500 mating cycles under PoE (802.3af/at/bt Type 3/4). Red housing supports color-coded VLAN segmentation or department identification in structured cabling deployments.

Key Features

• TG Tool-less Termination – IDC contacts accept 22–26 AWG solid or stranded conductors without a punch-down tool; audible click confirms seating
• Exceeds Cat 6 Channel Performance – supports 10GBASE-T up to 100 m in 4-connector configurations; swept 1–250 MHz per ANSI/TIA-568.2-D
• 100% Factory Tested – every jack verified for insertion loss, return loss, NEXT, PS-NEXT, and alien crosstalk; individual serial number etched on housing
• PoE Type 3/4 Rated – 2,500-cycle durability under IEEE 802.3bt (up to 90 W), suitable for IP cameras, wireless APs, and VoIP phones
• Mini-Com® Ecosystem – snap-in compatibility with all Panduit Mini-Com modular patch panels, surface-mount boxes, and angled/flat faceplates
• Red Color Coding – visually distinct for VLAN tagging, emergency systems, or departmental segmentation

The CJ688TGRD terminates 4-pair UTP cable (22–26 AWG) in T568A or T568B wiring schemes. TG-style IDCs use a cam mechanism that strips insulation and seats conductors simultaneously—press each wire into its slot until you hear and feel the click. No impact tool, no blade geometry concerns, no risk of over-compression damaging the conductor. Electrical performance exceeds Category 6 component requirements at all swept frequencies from 1 to 250 MHz, with headroom for 10GBASE-T Ethernet over the full 100-meter permanent link. The jack also meets ANSI/TIA-1096-A (cordage specification), IEC 60603-7 (8P8C interface), and IEC 60512-99-001 (terminal robustness), ensuring compatibility with RJ45 patch cords from any manufacturer. UL 1863 and UL 2043 listings cover both general communications use and plenum air-handling spaces.

Deploy the CJ688TGRD in Mini-Com modular patch panels (24- or 48-port, 1U or 2U), surface-mount boxes for open-office furniture runs, or dual-gang faceplates in conference rooms and classrooms. Each module snaps into a Mini-Com port without screws; the serialized label on the front allows you to log MAC-to-serial mappings in your DCIM or building-management database. Red housings simplify MAC-layer segmentation—assign red jacks to guest VLANs, alarm circuits, or camera subnets, then visually verify port assignments during troubleshooting. The 2,500-cycle mating durability (tested under continuous PoE current per 802.3bt Type 4) exceeds typical office-move churn by an order of magnitude, and the jack's 0.71" height fits behind shallow wall boxes in retrofit scenarios.

For integrators managing multi-building campus networks or data-center cross-connects, the combination of tool-less field termination, factory-verified Cat 6 headroom, and per-jack serialization reduces both labor hours and post-install troubleshooting. The TG mechanism maintains consistent IDC contact force across all eight conductors—eliminating the installer variability that causes intermittent link flaps on traditional punch-down jacks—while the red color provides instant visual confirmation that PoE budget or VLAN policies are correctly applied at the physical layer.
