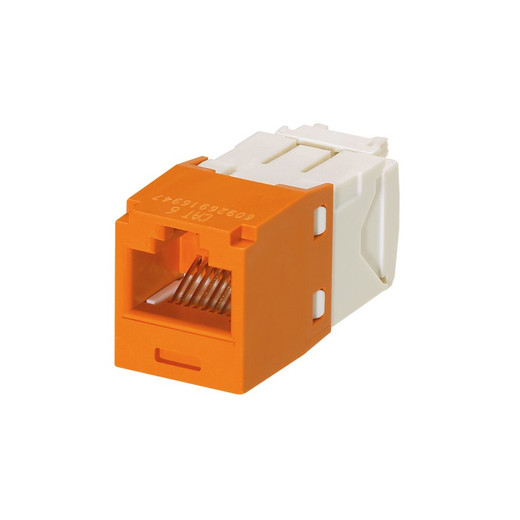

Panduit CJ688TGOR Mini-Com Cat 6 UTP RJ45 Jack Module

The Panduit CJ688TGOR delivers tool-free Cat 6 terminations for structured cabling installations where speed and consistency matter. This Mini-Com jack module uses TG-style termination to eliminate the need for a punch-down tool—wire pairs seat and lock with finger pressure alone. Each module ships 100% factory-tested to exceed ANSI/TIA-568.2-D Category 6 and ISO 11801 Class E channel requirements across the full 1-250 MHz swept-frequency range, supporting 10GBASE-T transmission up to 100 meters in four-connector configurations. Orange housing enables instant visual identification in color-coded patch-panel layouts, and individual serialization provides end-to-end traceability for audit and warranty purposes.

Key Features

TG termination—no punch-down tool required; wire pairs seat with finger pressure

Exceeds Cat 6 channel performance (ANSI/TIA-568.2-D, ISO 11801 Class E) at 1-250 MHz

Supports 10GBASE-T to 100 meters in 4-connector permanent-link configurations

100% factory swept-frequency tested; individually serialized for traceability

Orange housing for instant visual identification in color-coded rack layouts

Compatible with all Mini-Com modular patch panels, surface boxes, and faceplates

Terminates 4-pair, 22-26 AWG solid or stranded twisted-pair cable

Rated 2,500 mating cycles; supports IEEE 802.3af/at PoE and proposed 802.3bt Type 3/4

UL 1863 and UL 2043 plenum-rated; RoHS compliant

TG termination replaces traditional 110-style punch-down blocks with a captive wire-seating mechanism: strip the cable jacket, untwist pairs to the color-coded wiring cap, press each conductor into its slot, and snap the cap closed. The integrated strain relief locks the jacket in place, and the module is ready to snap into any Mini-Com opening. This method cuts termination time by roughly half compared to punch-down workflows, and the lack of a blade means no risk of nicking conductors during seating. Factory testing verifies insertion loss, return loss, NEXT, PS-NEXT, ELFEXT, and PS-ELFEXT across all four pairs at every frequency step from 1 to 250 MHz; modules that fall outside the Category 6 performance envelope are rejected before packaging. The unique serial number laser-etched on each jack ties the module to its test report, so you can pull certification data for any port during post-install audits or troubleshooting.

The CJ688TGOR fits Panduit's universal Mini-Com footprint—the same 15.7 mm × 18 mm form factor used across Panduit's copper, fiber, A/V, and USB jack families. Drop it into any Mini-Com patch panel (CP-series frame-mount panels, CPPL wallplates, or CFPE faceplates), and the latch clicks into place without screws or adhesive. Orange is typically reserved for demarcation points, crossover links, or auxiliary networks in enterprise structured-cabling color schemes, making it easy to distinguish these terminations from blue horizontal runs or green equipment connections at a glance. In access-control or IP-camera installations, orange jacks often mark PoE-dedicated uplinks or out-of-band management segments. The module's PoE rating—2,500 mating cycles under continuous IEEE 802.3at (30 W) load and tested against the proposed 802.3bt Type 3 (60 W) and Type 4 (100 W) profiles—means it will handle high-power edge devices without contact degradation or heat-related performance loss over the life of the installation.

Compliance extends beyond electrical performance: UL 2043 plenum rating allows the jack to remain exposed in air-handling spaces without additional enclosures, and RoHS restriction-of-hazardous-substances certification clears it for EU and California deployments. The CJ688TGOR ships in cartons of 50, with each module individually bagged to prevent dust ingress during storage, making it a practical choice for enterprise retrofits, new data-center builds, or IP-security integrations where rapid, traceable, standards-compliant terminations directly impact project schedule and long-term network reliability.
