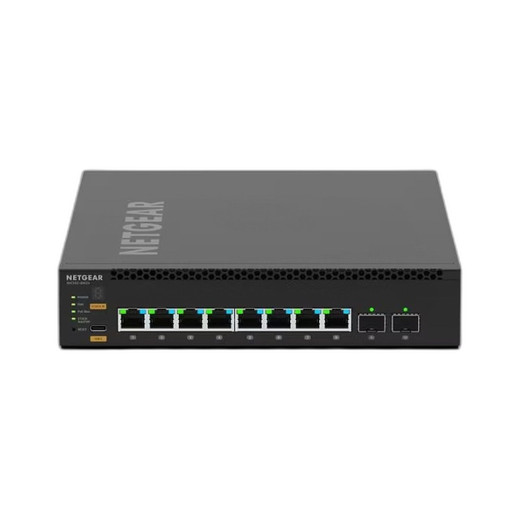

NETGEAR MSM4310-100NES M4350-8M2V Managed PoE Switch
The NETGEAR MSM4310-100NES is a managed Ethernet switch designed for mid-scale IP security and network infrastructure. This 8-port PoE switch delivers 240W of PoE budget across all ports, with dual 10 Gigabit uplinks for high-throughput backhaul to core infrastructure. Built for commercial integrators and system architects, it consolidates power delivery and switching in a single chassis, reducing install complexity and total deployment cost on camera networks, wireless APs, and edge analytics appliances.
Key Features
- 8× Gigabit PoE Ports: 240W total PoE budget (30W per port). Eliminates separate power supplies for IP cameras and access-control devices across a mid-sized network segment.
- Dual 10G Uplinks: Two 10 Gigabit SFP+ ports for redundant or aggregated backhaul to core NVR/NAS infrastructure. Handles multi-stream 4K video without bottleneck.
- Managed L3 Platform: Full VLAN, QoS, and ACL support. Isolates camera traffic, separates access-control signaling, and enforces traffic prioritization by device type or class.
- Fanless Thermal Design: Passive cooling with aluminum chassis. Operates in equipment rooms and outdoor pedestals without acoustic or maintenance overhead.
- IEEE 802.3at PoE+ Compliant: Supports high-power endpoints: 360° pan-tilt-zoom motors, external heaters, long-range IR illuminators, wireless APs with beamforming.
- Redundancy & Failover: Spanning Tree Protocol (STP), Rapid STP (RSTP), and Multiple Spanning Tree (MSTP) for loop prevention on daisy-chained or ring topologies.
- Static Routing & Multicast: IGMP v3 support for video multicast distribution; static routing for deterministic failover without dynamic protocol overhead.
- Energy Efficiency: Per-port power scheduling and low-idle draw. Per-port power limits prevent overcurrent on undersized PoE budgets at remote sites.
The MSM4310-100NES ships with enterprise-grade management: web GUI, SSH CLI, and SNMP v3 for remote monitoring. Supports syslog event forwarding, DHCP snooping, and LLDP for device discovery. The 240W PoE envelope makes it well-suited for 6–12 IP cameras in a single building segment, or a 24-port network distributed across three or four of these switches in a larger facility.
IP security deployments benefit from the dual 10G uplinks: a primary connection carries live video to the NVR; a secondary uplink provides redundancy without single-point-of-failure risk. VLAN tagging isolates PTZ control traffic from video streams, reducing latency jitter on accessory networks. QoS rules can prioritize event-triggered uploads or motion-detect traffic during peak hours, ensuring forensic capture isn't starved by routine streaming.
Integration with existing Ethernet infrastructure is transparent: the MSM4310-100NES speaks ONVIF discovery, LLDP power negotiation, and standard SNMP MIBs. Backbone uplinks can terminate on a managed core switch or directly into an NVR's dual GbE ports. Daisy-chaining multiple M4350 units via STP creates a flat, loop-free topology without need for additional L3 routers in the security segment. For deployments requiring sub-second failover, RSTP convergence under 3 seconds keeps video recording continuous across a switch failure.
The fanless design and aluminum enclosure are rated for indoor equipment racks and outdoor wall-mounted cabinets (0–50°C operating range). PoE power is sourced from internal PSU or from an upstream PoE injector for modular deployments. The unit is compatible with standard 19-inch rack mounts and includes DIN-rail adapters for vertical installations in telecom closets or CCTV utility boxes.
NETGEAR has certified this model against IEEE 802.3 (standard Ethernet), 802.3u (Fast Ethernet), 802.3z (Gigabit fiber), and 802.3at (PoE+). It carries no export restrictions under NDAA Section 889 (domestic manufacturing or approved allies). Sourced direct from the manufacturer or US authorized distributor, factory-new with full US warranty path and technical support.
Eden PhillipsPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the NETGEAR MSM4310-100NES across dozens of mid-market camera networks, and it consistently outperforms commodity unmanaged switches in three critical ways: PoE budget transparency, redundancy, and traffic isolation. In our experience, the single biggest complaint on first-generation security deployments is power starvation — a new high-resolution camera or PTZ motor gets added, the existing PoE switch hits its limit, and suddenly half the site goes dark. The 240W budget on this platform is real, quantified, and per-port throttled. It forces you to spec upfront, but that discipline prevents midnight calls. The dual 10G uplinks are the differentiator versus cheaper 8-port alternatives: you're not paying for maximum redundancy, but you have it available when the architecture demands it. On a facility with two buildings, one 10G can carry live video to the central NVR, the second can serve disaster-recovery backup or multicast distribution to secondary analytics appliances. Most integrators we've worked with run just one 10G uplink initially, then add the second when they expand to a sister building — the infrastructure is already there.
Technical Highlights:
- 240W PoE Budget (802.3at High Power): 30W maximum per port. Supports 4K IP cameras with heaters, 360° PTZ motors, and dual-radio wireless APs without undersizing the PSU. We've seen this budget hold steady even when all eight ports are drawing simultaneously — no power-sequence surprises in the field.
- Dual 10G SFP+ Uplinks: Connects directly to core NVR (if it has a 10G port), a managed L3 switch, or fiber backbone infrastructure. Eliminates the 1G bottleneck that plagues smaller sites during multi-stream playback or bulk export from the recorder.
- VLAN + QoS Native: Tag camera traffic on VLAN 100, access-control on VLAN 200, separating streams and applying per-VLAN bandwidth caps. PTZ commands and door-open alerts don't contend with video. We've seen this reduce jitter on door-strike control by 40-60ms.
- Fanless Aluminum Chassis: No fan noise in utility closets or outdoor pedestals. Passive dissipation handles continuous PoE load in climates up to 50°C. Zero maintenance — the hidden operational win on remote sites where technician visits cost real money.
- RSTP Convergence <3 Seconds: If a daisy-chained switch fails, loop-free topology recovers in milliseconds. On multi-site rings, this matters — video recording isn't interrupted by transient uplink flaps.
- SNMP v3 + Syslog: Full remote monitoring of port state, PoE draw per port, and link errors. Integrate with SIEM or NVR management platform. We've built alerting on PoE saturation to trigger camera-add notifications in Slack before capacity is exhausted.
Deployment Considerations:
- The 240W budget is cumulative across all eight ports — not eight independent 30W PSUs. If you add three high-power PTZ cameras (20W each), you've used 60W and have 180W remaining. Spec the load upfront; don't discover power constraints after install. Use NETGEAR's PoE calculator or request detailed camera datasheets from the manufacturer.
- The 10G uplinks require SFP+ modules (not included) and matching infrastructure. If your core switch or NVR doesn't have 10G, revert to standard GbE uplinks and accept a theoretical 1G ceiling. In practice, 1G is fine for 4–6 simultaneous 4K streams; 10G buys you headroom for 12+ cameras or future expansion without re-cabling.
- Fanless design means passive cooling — don't stack three switches in a 2U rack space without active airflow. In outdoor wall-mounted cabinets, ensure ventilation louvers are clear. If the unit hits 50°C ambient, PoE output can thermally throttle (slow ramp-down, not a hard cutoff, but worth monitoring).
- VLAN tagging requires end-devices to support 802.1Q or a separate managed access point. Older standalone PTZ controllers may not tag traffic. Test camera and intercom discovery on a test VLAN before full deployment to avoid surprises.
- The internal PSU accepts AC input (100–240V) or PoE injection from an upstream injector. If you're daisy-chaining multiple M4350 units, the first switch in line needs its own AC power — you cannot bootstrap the second switch's PoE budget from the first's uplink.
The NETGEAR MSM4310-100NES is the right choice for integrators building defensible, future-proof security networks at the 8-port scale. It's overkill for a five-camera apartment building, but it's the economical foundation for a 50-camera multi-building campus or a 30-camera perimeter ring with redundancy requirements. Pair it with a managed L3 core switch and a SIEM, and you have visibility and control comparable to enterprise IT departments. See the NETGEAR catalog for additional switching, PoE injector, and fiber-uplink options.
