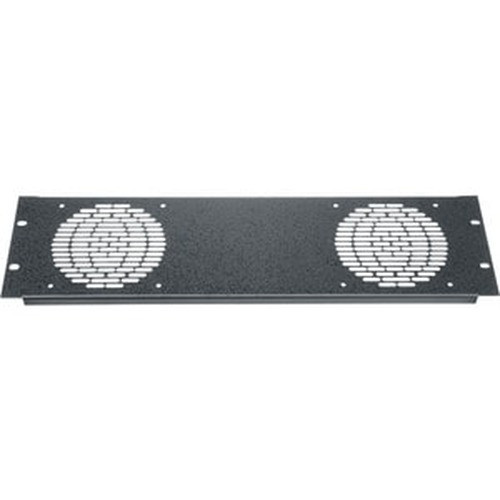

Middle Atlantic TFP2 Rack Fan Panel with 2 Active Fan Openings

Overview

The Middle Atlantic TFP2 is a 19-inch, active rack fan panel designed to manage heat in enclosed equipment racks and AV/security enclosures. At 5.25 inches tall (occupying 3U of rack space) and only 0.52 inches deep, the TFP2 delivers active thermal management without eating significant rack real estate. If you're running dense video surveillance equipment — NVRs, encoders, PoE switches, or managed access control panels — in a closed rack, this panel addresses the heat accumulation that shortens component lifespan and causes unexpected shutdowns.

Explore the full Middle Atlantic rack accessories line for enclosures, power distribution, and thermal management solutions that pair with this panel.

Key Features

• Dual Fan Openings: Two fan openings in a single 3U panel means you can move air across the full width of the enclosure simultaneously — useful in racks where components run edge-to-edge and a single fan would leave hot pockets on one side.
• Active Thermal Management: Classified as an active component rather than a passive vent panel, the TFP2 drives airflow rather than relying on convection alone. In a sealed or semi-sealed rack cabinet, passive venting often isn't enough when you have continuously-running PoE switches, NVRs writing to multiple drives, and power distribution all in the same enclosure.
• 19-Inch Standard Rack Width: At exactly 19 inches wide, this panel drops into any standard EIA-310 rack without modification — compatible with the rack enclosures you're already deploying. No adapter hardware, no custom fitting.
• 3U Height (5.25 Inches): The 5.25-inch height fills a 3U slot, which is a meaningful footprint. Plan your rack layout before installing — this works best at the top of the rack (heat rises) or just above the densest heat-generating equipment tier.
• Minimal Depth (0.52 Inches): A half-inch depth profile keeps the panel from interfering with cable management or equipment installed directly behind it. In shallow-depth enclosures where every inch of clearance matters, this spec is worth noting.
• 2-Point Rack Mounting: Two mounting points secure the panel to standard rack rails. This is a straightforward install — no special tooling required, and the 1.58-lb shipping weight means handling is a one-person job.
• Textured Black Powder Coat Finish: The textured black powder coat blends with standard rack hardware and resists scratching during rack builds and cable dressing. No bare metal edges to contend with.

Integration and Compatibility

The TFP2 is designed for standard 19-inch rack systems following EIA-310 specifications. It fits Middle Atlantic's own enclosure product line as well as third-party racks that conform to the same standard. The 19-inch panel width and 3U height make it interchangeable with other rack-format accessories from Middle Atlantic and compatible vendors. For environments running continuous-duty surveillance equipment — particularly NVRs with multiple spinning HDDs, dense PoE switches, or video analytics appliances — pairing this panel with a thermal management strategy that includes proper intake/exhaust placement will yield the most reliable results. Review your rack's total heat load (measured in BTUs or watts) before specifying fan panel placement and quantity; a single 2-fan panel may not be sufficient for high-density deployments.

Frequently Asked Questions

Q: Does the TFP2 fit a standard 19-inch EIA rack?

A: Yes. The TFP2 is 19 inches wide and conforms to standard EIA-310 rack mounting, making it compatible with any standard 19-inch open-frame or enclosed rack.

Q: How many rack units does the TFP2 occupy?

A: The TFP2 is 5.25 inches tall, which occupies 3U of rack space.

Q: How deep is the TFP2 — will it interfere with equipment mounted behind it?

A: The TFP2 is only 0.52 inches deep (approximately 13mm), so it has minimal impact on clearance for equipment installed directly behind the panel in the rack.

Q: What is the finish on the TFP2?

A: Textured black powder coat — standard rack aesthetic, durable against scuffs during installation and cable management work.

Q: How many fan openings does the TFP2 have?

A: Two fan openings, allowing dual-fan active airflow across the enclosure width.

Jerry Tildsen

The TFP2 comes up regularly in rack builds where integrators have underestimated heat load from continuously-running surveillance hardware. At 5.25 inches tall and just 0.52 inches deep, this panel pulls active airflow through two fan openings without consuming meaningful rack depth — a real consideration when you're working inside a 24- or 30-inch-deep enclosure that's already tight with NVR drives and patch panels.

Technical Highlights:

• Active Dual-Fan Configuration: Two fan openings in a 3U panel versus a single-opening alternative means more uniform airflow distribution across the full 19-inch rack width — hot spots near dense PoE switch stacks are less likely.
• 0.52-Inch Depth Profile: At just over half an inch deep, the TFP2 doesn't create a clearance conflict with equipment or cable trays installed directly behind it in the rack bay — useful in installations where rear cable management is already constrained.
• Textured Black Powder Coat: The finish isn't cosmetic-only — it holds up to the repeated contact that happens when dressing cables past rack-mounted panels, and it matches standard rack hardware without requiring a color-match conversation with the client.

Deployment Considerations:

• Mount the TFP2 at the top of the equipment zone or directly above the highest heat-generating tier — NVRs with multiple spinning drives and dense PoE switches are the primary targets. Placing it at the bottom of the rack wastes most of the airflow benefit since heat rises.
• The evidence doesn't specify fan voltage, CFM ratings, or whether fans are included or field-installed — confirm with Middle Atlantic documentation before ordering if you need specific airflow capacity figures for a thermal calculation.

The TFP2 is the right call for security integrators closing out a rack build in a wiring closet or equipment room where the enclosure runs 24/7 surveillance hardware and ventilation wasn't part of the original room design. It's not a substitute for a thermal audit in a high-density deployment, but for a standard NVR-plus-switch rack, two active fan openings in 3U handles the job cleanly.
