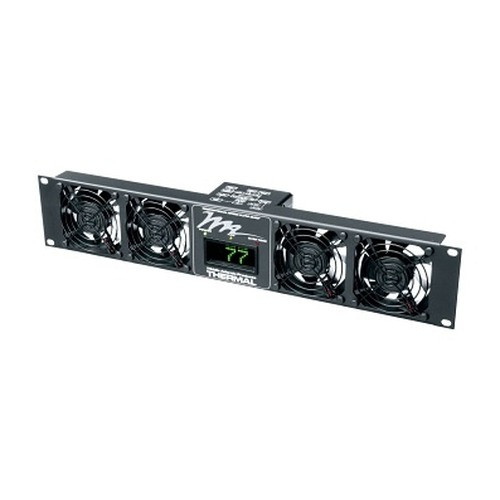

Middle Atlantic Ultra Quiet Fan Panel 4 Fans 100 CFM 27DB with LED Display - UQFP-4D

Middle Atlantic UQFP-4D 2RU Ultra Quiet Rack Fan Panel

Overview

The Middle Atlantic UQFP-4D is a 2RU active fan panel that moves 100 CFM of airflow through a standard 19-inch rack enclosure using four fans, all while keeping noise at 27dB — quiet enough for production control rooms, A/V equipment closets, and security head-end rooms where fan roar is unacceptable. The integrated LED display gives you real-time thermal feedback without opening the rack, which matters in 24/7 security and automation environments where you want early warning before heat causes a recorder or switch to throttle. The unit draws 120VAC input and outputs 5 VDC to drive the fan motors, with two rack mounting points for a secure, rattle-free fit in any standard EIA 19-inch rail system. At 3.4 inches deep and 5 lbs shipping weight, it adds minimal bulk to tight equipment rooms. The UQFP-4D is factory-new and sourced from the manufacturer's distribution channel — no grey-market units.

Compatibility

Designed for Middle Atlantic rack enclosures and open-frame racks using standard 19-inch EIA rail spacing. Fits any 2RU slot in Middle Atlantic's Middle Atlantic rack and enclosure line, including the WRK, ERK, WMRK, and BGR series. Also compatible with third-party EIA-standard 19-inch rack cabinets provided 2RU of open slot space is available directly above or below heat-generating equipment. Pairs naturally with NVRs, PoE switches, and video management servers housed in rack accessories and enclosure builds — any equipment that generates sustained heat in an enclosed bay. For larger thermal loads or deeper enclosures, consider pairing with additional Middle Atlantic fan panels or a thermal management solution with higher CFM capacity. Not rated for international voltage (120VAC only, not 240VAC) — confirm local supply voltage before deploying outside North America.

Installation Notes

Mounts via two rack mounting points on standard 19-inch EIA rails — no special tooling required beyond a screwdriver. Confirm 120VAC outlet availability inside or adjacent to the rack before installation; this panel does not support 240VAC international supply. The 3.4-inch depth fits standard rack shelves without clearance issues in most Middle Atlantic enclosures. TAA compliance is not certified for this SKU — verify procurement requirements if the deployment falls under federal acquisition rules. No thermistor is included, so automatic speed control based on rack temperature is not a feature of this unit; fan speed is fixed.
