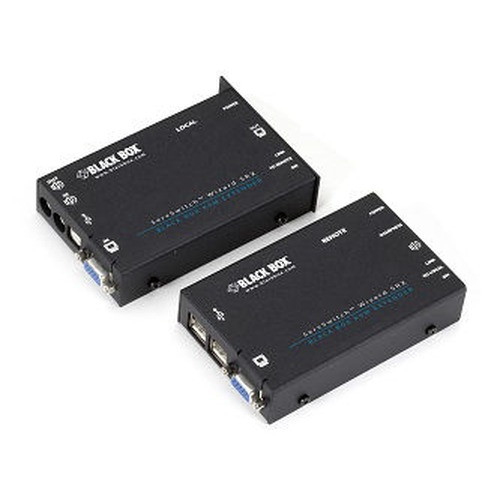

Black Box ACU5051A VGA USB 2.0 Audio Dual-Access KVM Extender

Overview

The Black Box ACU5051A is a dual-access KVM extender that transmits VGA video, USB 2.0, and audio signals over CATx cable — purpose-built for deployments where a workstation or server must be operated from a remote location without running expensive coax or fiber. If you manage AV control rooms, broadcast suites, secure server rooms, or industrial control stations where the operator console needs to sit away from the hardware, this is the product class to evaluate.

Dual-access architecture means both a local operator and a remote operator can connect to the same source simultaneously — useful in training environments or supervision scenarios where two consoles need to share one machine without a software KVM switch in the path. The ACU5051A carries VGA video alongside USB 2.0 data and audio on the same CATx run, keeping your cable plant simple.

Key Features

• VGA over CATx: Transmits analog VGA video over structured CATx cable, letting you leverage existing Cat5e/Cat6 infrastructure rather than pulling dedicated video cable — a real cost saver in retrofit installations.
• USB 2.0 Extension: Full USB 2.0 support means keyboard, mouse, and compatible USB peripherals at the remote console behave as if they are plugged directly into the host — no driver workarounds, no HID-only restriction.
• Audio Channel: Integrated audio extension keeps voice and system audio in sync with the video feed at the remote console — relevant for multimedia workstations, broadcast monitoring, and voice-enabled control applications.
• Dual-Access Operation: Both local and remote consoles remain active, which eliminates the need to physically walk to the machine room for supervised access or training sessions.
• CATx Transmission: Uses standard structured cabling (CATx) as the transport medium, making the ACU5051A compatible with installed building infrastructure and standard RJ-45 patch panels.

Integration and Compatibility

The ACU5051A is designed for environments running VGA-output workstations and servers — legacy industrial PCs, broadcast hardware, control room systems, and any host with a standard VGA port. USB 2.0 compatibility covers the full range of HID devices as well as USB storage and other class devices within the USB 2.0 specification. For full compatibility details including maximum extension distance, supported resolutions, and OS compatibility, consult the Black Box product documentation or contact pre-sales engineering before deployment.

Frequently Asked Questions

Q: What cable type does the ACU5051A require for extension?

A: The ACU5051A transmits over CATx cable — Cat5e or Cat6 structured cabling. This allows integration with existing building infrastructure and standard RJ-45 patch panels.

Q: Does the ACU5051A support simultaneous local and remote access?

A: Yes. The ACU5051A features dual-access architecture, meaning both a local console and a remote console can connect to the host simultaneously — useful for training, supervision, and shared control room workflows.

Q: What video interface does the ACU5051A support?

A: The ACU5051A supports VGA video. It is designed for hosts with a standard VGA output port. It does not natively support HDMI or DisplayPort without an adapter.

Q: Does the ACU5051A extend audio as well as video and USB?

A: Yes. The ACU5051A extends VGA video, USB 2.0, and audio over the same CATx run, keeping the remote console fully functional for multimedia and voice-enabled applications.

Q: What USB device types are supported at the remote console?

A: The ACU5051A supports USB 2.0, which covers HID devices (keyboard, mouse) as well as other USB 2.0-class peripherals. For a full list of compatible device types and any restrictions, consult the Black Box product documentation.

James Everett

The ACU5051A addresses a specific and common infrastructure problem: you have a VGA-output host in a locked equipment room and an operator who needs to work from a separate console location — without pulling dedicated video cabling. The dual-access feature is what sets it apart from single-access extenders; two consoles sharing one machine simultaneously is genuinely useful in control room and training environments where a supervisor needs visibility on the same session.

Technical Highlights:

• VGA + USB 2.0 + Audio on CATx: Consolidating all three signals onto a single CATx run reduces conduit usage and simplifies the cable plant — particularly valuable in retrofit scenarios where pulling additional cable is expensive or disruptive.
• USB 2.0 Transport: USB 2.0 extension (not HID-only) means the remote console supports a broader range of peripherals beyond just keyboard and mouse, including USB storage and other class devices within the USB 2.0 spec.
• Dual-Access Architecture: Both local and remote consoles remain live simultaneously — the local console in the equipment room and the remote operator console can both drive the same host, which is the defining capability that justifies this model over a simpler single-access extender.

Deployment Considerations:

• Verify maximum extension distance and supported VGA resolutions against the Black Box datasheet before committing to a cable run — CATx-based VGA extenders are typically distance- and resolution-sensitive, and the available evidence does not confirm these values for the ACU5051A specifically.
• This is a VGA-only product. If your host has migrated to HDMI or DisplayPort outputs, you will need an active adapter at the source — passive VGA-to-HDMI adapters will not work in the reverse direction without signal conversion.

The ACU5051A is the right fit for control room and broadcast environments where VGA hosts are still in service, the operator console must sit away from the hardware, and two-person simultaneous access (supervisor + operator) is a workflow requirement.
