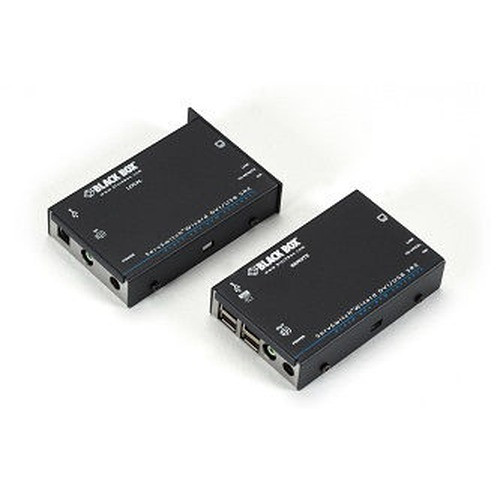

Black Box ACU5501A-R4 DVI-D USB 2.0 Audio KVM Extender over CATx

Overview

The Black Box ACU5501A-R4 is a single-access KVM extender that carries DVI-D video, USB 2.0, and audio over standard CATx infrastructure — the right tool when a workstation or embedded controller needs to be physically separated from its keyboard, display, and peripherals without resorting to fiber or proprietary cabling. If you're designing a control room, secure server room, or broadcast equipment rack where the computing hardware must be locked away from the operator position, this extender class eliminates the need to run dedicated HDMI or DisplayPort home-runs. Explore the full Black Box catalog for complementary KVM switching and extension solutions.

Single-access architecture means one local and one remote operator station share the extended connection — appropriate for dedicated workstation extension scenarios rather than multi-user matrix switching environments. If your project requires simultaneous multi-user access or a larger switching matrix, consider a higher-channel KVM switch or matrix model within the Black Box line before specifying the ACU5501A-R4 (often searched as ACU5501A R4).

Key Features

• DVI-D Video Extension: Transmits a pure digital video signal over CATx — no analog conversion artifacts, which matters when operators need crisp text rendering on engineering or monitoring displays.
• USB 2.0 Extension: Full USB 2.0 support at the remote end means keyboards, mice, and compatible USB peripherals connect as if locally attached — no proprietary driver stack required on most platforms.
• Audio Extension: Carries audio alongside video and USB on the same CATx run, eliminating a separate audio cable pull to the remote operator position.
• CATx Infrastructure: Leverages existing Cat5e or Cat6 plant rather than requiring dedicated coax or fiber — a meaningful cost reduction on retrofit installations where structured cabling is already in place. Review our KVM extender category for distance and cable-grade guidance.
• Single-Access Design: Simplifies access control in secure environments — only one remote session is active at a time, which reduces the attack surface compared to multi-user KVM matrix deployments.
• Compact Form Factor: The black enclosure is sized for tight rack-adjacent or under-desk mounting, keeping the local unit close to the source computer without dominating the equipment bay. Pair with a compatible KVM switch if multi-source switching is needed at the remote console.

Integration and Compatibility

The ACU5501A-R4 targets environments running DVI-D-equipped workstations or servers — including process control systems, broadcast production suites, and secure operations centers where USB HID peripherals and audio must reach an operator console at distance. Because it operates over standard CATx structured cabling, integration into an existing cable plant is straightforward; verify your installed cable grade and maximum run length against Black Box's published specifications for this model before finalizing the design. For projects requiring fiber extension distances or DisplayPort/HDMI signal types, evaluate alternate extender families within the Black Box portfolio.

Frequently Asked Questions

Q: What video interface does the ACU5501A-R4 support?

A: The ACU5501A-R4 supports DVI-D (digital only). It does not carry an analog VGA signal, so the source workstation must have a DVI-D or compatible digital output.

Q: What USB version is supported at the remote end?

A: The extender supports USB 2.0, which covers standard HID peripherals (keyboard, mouse) and most USB audio devices. USB 3.0 devices are not supported over this extension path.

Q: Does the ACU5501A-R4 require proprietary cabling?

A: No — it runs over standard CATx (Cat5e or Cat6) structured cabling, making it suitable for retrofit installations with existing cable plant.

Q: Is this a multi-user or single-access extender?

A: Single-access. Only one remote console session is active at a time. For multi-user or matrix switching, a different model in the Black Box KVM line would be required.

Q: Does the ACU5501A-R4 extend audio?

A: Yes — audio is included alongside DVI-D video and USB 2.0 on the same CATx infrastructure run.

Eden Phillips

The ACU5501A-R4 covers the use case I run into most often in secure facility designs: the operator console has to be physically separated from the compute hardware, but the budget and timeline don't support pulling fiber or redesigning the cabling plant. DVI-D plus USB 2.0 plus audio over CATx on a single-access architecture is a clean, defensible solution for that scenario.

Technical Highlights:

• DVI-D Signal Path: Digital-only transmission preserves signal integrity without DAC/ADC conversion stages — important when displays are calibrated for color-accurate work or text-heavy monitoring applications.
• USB 2.0 at Remote End: Full USB 2.0 bandwidth accommodates HID peripherals and USB audio devices simultaneously — no need for a separate peripheral hub at the remote console in most deployments.
• CATx Infrastructure Reuse: Running over existing Cat5e/Cat6 plant avoids a dedicated fiber pull, which on a 10-room retrofit can represent a significant reduction in materials and labor cost.

Deployment Considerations:

• Confirm the maximum supported CATx run length with Black Box's published spec sheet before finalizing cable routing — CATx KVM extenders are sensitive to cable grade and run length, and exceeding the rated distance causes video degradation that is difficult to diagnose after installation.
• Single-access means the ACU5501A-R4 is not the right fit if two operators need simultaneous console access to the same machine — that scenario requires a multi-user KVM matrix or IP-KVM solution from the Black Box portfolio.

This unit fits best in process control rooms, broadcast equipment racks, and secure server enclosures where a single dedicated operator console needs clean DVI-D video, USB peripherals, and audio at distance — without a fiber plant or IP-KVM license overhead.
