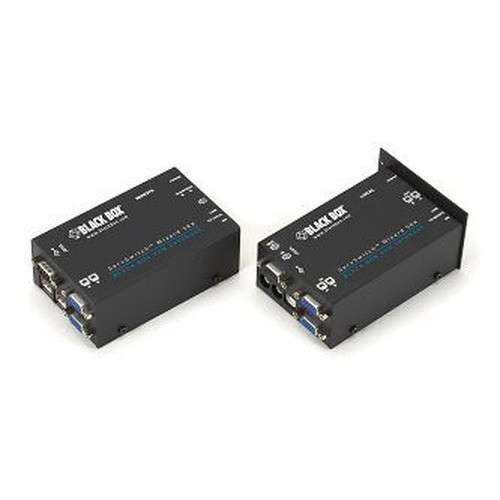

Black Box ACU5052A Dual VGA USB 2.0 RS232 Audio KVM Extender

Overview

The Black Box ACU5052A is a dual-access KVM extender that carries Dual VGA video, USB 2.0, RS232 serial, and audio signals over CatX cabling — purpose-built for installations where a workstation or server needs to be operated from two separate locations without duplicating hardware. If you're running a control room, broadcast environment, or server room where operators at different positions need concurrent access to the same host machine, the ACU5052A addresses that directly without a secondary PC or KVM switch stack.

Running signals over CatX infrastructure keeps cabling costs manageable and lets you work within existing structured cabling runs. The Dual VGA output means both the local and remote console can display video simultaneously — operators at either position see the same screen state without toggling.

Key Features

• Dual VGA signal path: Extends two VGA video channels simultaneously so local and remote users share a live view of the host — eliminates the need for a second graphics card or display adapter at the source.
• USB 2.0 extension: Full USB 2.0 connectivity at the remote console means peripheral devices (keyboards, mice, USB storage) function as if they were plugged directly into the host, with no perceptible control lag for standard HID devices.
• RS232 serial pass-through: Carries a serial data channel alongside the video and USB paths — useful in industrial and broadcast installations where serial-controlled devices (switchers, encoders, legacy equipment) need to be managed from the remote console location.
• Integrated audio extension: Audio is carried over the same CatX run, avoiding a separate audio cable pull to the remote operator position — a real time-saver in retrofit installations where conduit space is limited.
• Dual-access design: Both the local and remote consoles remain active simultaneously. This matters in control room and NOC layouts where a local administrator and a remote operator may need concurrent but independent access to the same host.
• CatX transmission medium: Uses standard CatX structured cabling rather than proprietary cable, making it compatible with existing infrastructure and simplifying future cable management or moves.

Integration and Compatibility

The ACU5052A fits into environments where a KVM extender or switch is needed alongside existing CatX cabling infrastructure. The RS232 pass-through makes it a candidate for facilities running legacy serial-controlled AV or industrial equipment. USB 2.0 support covers standard HID peripherals; verify USB device class compatibility for any non-HID devices before deploying. For environments requiring multiple extended nodes, evaluate pairing with a KVM matrix switch to scale beyond a single remote console. Consult the full Black Box catalog for compatible local and remote unit pairings within the ACU series.

Frequently Asked Questions

Q: What type of cabling does the ACU5052A use to extend signals?

A: The ACU5052A transmits over CatX structured cabling (Cat5e or Cat6 class), which means it can work with existing horizontal cable runs in most commercial installations without a dedicated proprietary cable pull.

Q: Does the ACU5052A support simultaneous local and remote access?

A: Yes. The dual-access design keeps both the local console and the remote console active at the same time, allowing concurrent operation from two positions.

Q: What video format does the ACU5052A support?

A: The ACU5052A supports Dual VGA video. It does not support DisplayPort, HDMI, or DVI natively — confirm your source hardware uses VGA output before specifying this unit.

Q: Does the ACU5052A pass audio in both directions?

A: Audio extension is included as part of the signal set carried over the CatX run. Verify directionality (one-way vs. two-way) against the Black Box product datasheet for your specific installation requirements.

Q: Is the ACU5052A suitable for KVM matrix deployments?

A: The ACU5052A is a point-to-point extender in its base configuration. For matrix switching across multiple hosts and remote consoles, pair it with a compatible Black Box KVM matrix switch — review the ACU series compatibility matrix to confirm supported pairings.

Jerry Tildsen

The ACU5052A's dual-access architecture is the feature I'd lead with in a control room pitch — the fact that both local and remote consoles stay live simultaneously without any switching or toggle is what separates a true dual-access extender from a basic KVM switch. If you're speccing this for a NOC or broadcast desk where two operators need concurrent visibility into the same host, that's the spec that earns the line item.

Technical Highlights:

• Dual VGA paths: Both video channels run simultaneously over the CatX link — no frame-rate sharing or time-division between the local and remote display positions.
• RS232 serial integration: The serial channel on the ACU5052A means legacy serial-controlled devices at the remote position don't require a separate serial extender or USB-to-serial workaround — it's carried natively in the same cable run.
• CatX infrastructure reuse: Using existing structured cabling rather than proprietary coax or fiber keeps this deployable in buildings that are already wired — no new conduit, no specialty media converters.

Deployment Considerations:

• VGA is the supported video interface — if your console hardware or monitors have moved to DisplayPort or HDMI, you'll need active adapters at both ends, which can introduce signal quality variables. Confirm the display chain before ordering.
• Evidence does not include a confirmed maximum extension distance for this unit — pull the Black Box datasheet for the ACU5052A before committing to cable runs, particularly in large facilities where the CatX run may approach or exceed typical extender limits.

Best fit: broadcast control rooms, government NOC environments, or industrial SCADA installations where a VGA-output host machine needs concurrent operator access from two fixed positions over existing Cat5e/Cat6 infrastructure.
