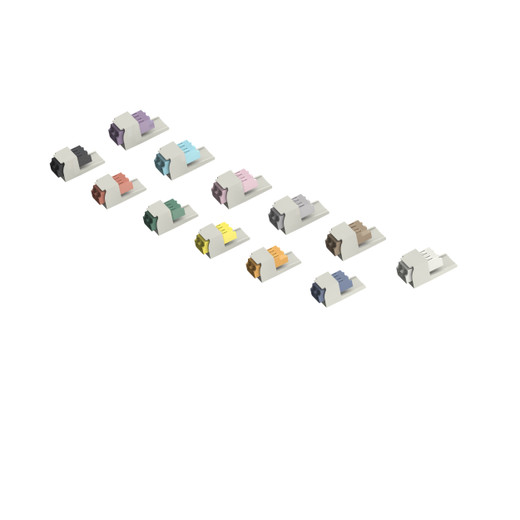

Panduit CMDEORLCZIW Mini-Com Keyed E-Orange LC Duplex Adapter Module

The Panduit CMDEORLCZIW delivers keyed fiber connectivity in a single-module footprint, coupling two LC duplex connectors with integrated panel retention and zirconia split sleeves. Part of Panduit's Mini-Com system, this adapter uses E-Orange keying to enforce physical layer security in multi-tenant or classified networks where accidental cross-connects carry operational or compliance risk. The international white housing fits standard Mini-Com panels, faceplates, and surface-mount boxes, eliminating the need for dedicated keyed infrastructure while maintaining backward compatibility with existing installations.

Key Features

Keyed E-Orange adapter mates only with matching keyed LC connectors, preventing unauthorized or accidental connections in secure or multi-tenant fiber deployments

LC duplex coupling in one module space conserves panel real estate in high-density patch panels and zone enclosures

Integrated panel retention clips eliminate loose hardware and simplify installation in Mini-Com faceplates, panels, and surface-mount boxes

Zirconia ceramic split sleeves provide low insertion loss, high durability, and resistance to wear across repeated mating cycles

TIA/EIA-605 FOCIS-10 compliant geometry ensures interoperability with standards-compliant LC connectors and test equipment

International white module housing integrates with global Mini-Com installations and color-coded labeling schemes

Keyed fiber systems address physical security requirements in government, healthcare, finance, and multi-tenant commercial buildings where network segmentation must be enforced at the connector level. The E-Orange key profile is one of twelve color-coded profiles in the TIA-604-5D standard, allowing installers to assign distinct colors to different security zones, VLANs, or tenant networks. Because the key is molded into both the adapter and the LC connector boot, mismatched connections are mechanically blocked—preventing the cross-patching errors that policy and training alone cannot eliminate. The CMDEORLCZIW's single-module LC duplex design preserves this security layer while occupying the same footprint as a standard unkeyed adapter, so retrofitting keyed connectivity into an existing Mini-Com panel requires no hardware changes, only a module swap.

The adapter's zirconia split sleeves are harder and more wear-resistant than phosphor bronze or stainless steel, maintaining sub-0.3 dB insertion loss even after hundreds of mating cycles. This durability is critical in access-controlled cross-connect rooms where technician turnover and frequent adds-moves-changes increase the risk of connector damage. The integrated panel retention clips snap into Mini-Com openings without screws or tools, reducing installation time and eliminating the loose hardware that often falls into equipment during dense panel builds. The adapter is TIA/EIA-568-B.3 and FOCIS-10 compliant, ensuring compatibility with LC test reference cords, inspection scopes, and cleaning tools used in datacenter and telecom certification workflows.

Panduit's Mini-Com platform is a modular connectivity system that spans copper, fiber, A/V, and control signal types in a common mounting format. The CMDEORLCZIW ships as a single-pack module (carton quantity 10) and is RoHS compliant. It exceeds TIA/EIA-568-B.3 insertion loss and return loss requirements, making it suitable for 10/40/100 Gbps datacenter links, OM3/OM4 backbone trunks, and government installations subject to BICSI or DoD fiber standards. Competitor cross-reference: Hubbell WMO-CP04-KX-85.
