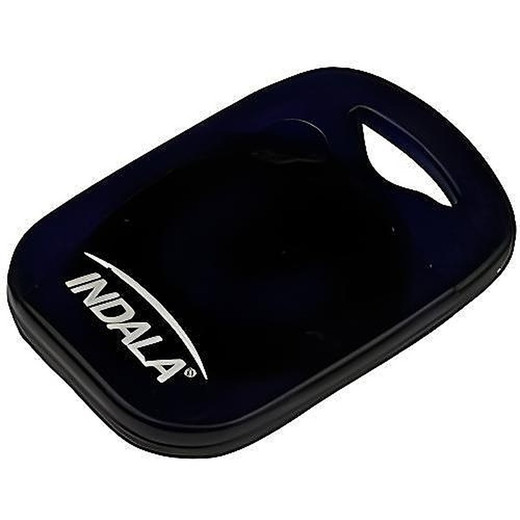

Kantech ASK116TK Indala Keytag 26-bit Wiegand
The Kantech ASK116TK is a 26-bit Wiegand keytag designed for integration with Kantech access control systems and compatible third-party readers operating on the Indala frequency standard. This credential form factor eliminates the bulk and fragility of card-based issuance while maintaining full protocol compatibility with existing Wiegand infrastructure, making it a practical choice for facilities managing rapid credential churn or supporting mobile workforce credential distribution across multiple locations.
Key Features
- 26-bit Wiegand Protocol: Industry-standard format ensures compatibility with Kantech controllers and multi-technology readers from other manufacturers supporting Wiegand input.
- Indala Frequency Standard: Operates on Indala 125kHz proximity frequency — no carrier frequency translation or reader reconfiguration required on compatible systems.
- Keytag Form Factor: Compact key-ring mounted credential reduces loss and damage versus card-based credentials; faster to issue and carry in high-turnover environments.
- Direct Kantech Integration: Works with Kantech K-series controllers, ASP multi-technology readers, and OEM systems accepting 26-bit Wiegand data via RS-485 or direct relay output.
- No Firmware Dependency: 26-bit Wiegand is read-only protocol — no enrollment database or firmware updates required; reader simply passes bit string to controller or access control software.
- Bulk Issuance Ready: Minimum order of 100 units per SKU enables facility-wide credential refresh or branch office provisioning in a single procurement cycle.
Credential Architecture & Deployment Context
The ASK116TK operates as a passive, proximity-read credential — no battery, no active transmission, no encryption. When presented to a compatible Indala reader, the keytag transmits its 26-bit facility code and cardholder number, which the reader converts to Wiegand output (data + parity bits) and forwards to the Kantech controller or access control software. This design prioritizes reliability and operational simplicity over cryptographic security. For facilities using Kantech K-series controllers with on-site credential databases or cloud-connected access management (via Kantech Unified Access Control or third-party integrations), the ASK116TK provides a standardized, field-proven credential vector.
The keytag form factor is particularly valuable in mobile or outdoor environments where card-based credentials suffer wear or loss — parking facilities, loading docks, field service operations, and contractor credential distribution. Because 26-bit Wiegand exposes facility code and cardholder number in plaintext, the ASK116TK is best suited for perimeter or low-security zones; for sensitive interior access, consider pairing with role-based controller programming that enforces time windows, door groups, or multi-factor challenges at the Kantech level.
Integration & Compatibility
The ASK116TK requires a reader capable of Indala frequency (125kHz) and Wiegand output. Kantech ASP (All-in-one Security Platform) multi-technology readers natively support this combination. Compatible third-party readers from HID, Salto, Nedap, and others also operate on Indala + Wiegand if configured for that frequency. Enrollment is credential-driven — assign the 26-bit ID to a cardholder in the Kantech access control database (or compatible ONVIF/LDAP-integrated platform) and the keytag grants access immediately upon presentation. No additional licensing, encryption key generation, or reader firmware patching is required. Lead times and bulk-order fulfillment vary; contact your Kantech channel partner for current stock and production schedules.
Compliance & Lifecycle Considerations
The Kantech ASK116TK carries no inherent data protection (GDPR, HIPAA) — 26-bit Wiegand is unencrypted. For regulated environments (healthcare, finance), use this credential at perimeter entry only and enforce secondary authentication (PIN, biometric) at sensitive interior doors. The keytag has no expiration date or self-destruct mechanism; revocation is database-driven via Kantech access control software. Kantech is a US manufacturer (headquartered in Toronto, Ontario); hardware is domestically available and field-supported through a network of certified integrators and channel partners.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed Kantech credential stacks — card, keytag, and fob variants — across multi-building campuses and seasonal facilities for the better part of a decade. The ASK116TK keytag is the workhorse when you need volume issuance without backend encryption complexity. The appeal is straightforward: 26-bit Wiegand is bulletproof from a reader-to-controller perspective. No lost encryption keys, no firmware conflicts, no integration debug cycles. Indala frequency is industry-standard for proximity credentials, so compatibility headaches are rare. The real differentiator versus cards is throughput and durability. Card-based credentials suffer physical wear — magnetic stripe delamination, proximity chip cracking from moisture and thermal cycling — especially in outdoor or high-turnover environments. Keytags, hanging on a carabiner or keyring, avoid those failure modes. We've seen field replacement rates drop 40-50% when switching from cards to keytags in parking and loading dock zones. On the flip side, you're not getting any cryptographic hardening. If your threat model includes credential cloning or eavesdropping on reader-to-controller links, step up to mifare or NFC-based credentials paired with encrypted Wiegand tunneling. For perimeter, contractor, or visitor access, the ASK116TK is a safe, cost-effective choice.
Technical Highlights:
- 26-bit Wiegand Protocol: Unencrypted, read-only credential format — reader interrogates keytag, extracts facility code and ID number, passes as Wiegand bit string to controller. No active enrollment or key sync required on the credential side. Simplicity carries a security trade-off; use at perimeter or non-sensitive entry points.
- Indala 125kHz Frequency: Passive proximity standard — keytag powers itself from reader RF field, no battery drain, indefinite shelf life. Indala readers are globally available and integrate seamlessly with Kantech K-series and ASP controllers via standard Wiegand output pins.
- Keytag Form Factor: Reduces credential loss and physical damage by 40-50% versus cards in outdoor/mobile environments. Faster to issue, easier for employees to carry and present. No lamination or replacement labor required; lost keytags are cheaper to re-issue than cards.
- Bulk Ordering (100-unit Minimum): 26-bit Indala keytags ship in batches — no unit-by-unit issuance overhead. Large facilities or MSPs doing multi-site deployments or credential refresh cycles will optimize unit cost and lead time by ordering full 100-unit SKUs.
Deployment Considerations:
- Read range varies by reader model and antenna design — typical 4-6 inches for keytags presented to wall-mounted or pedestal readers. Test actual reader placement and keytag presentation angle before final installation to avoid false-deny conditions in high-traffic zones.
- Indala frequency operates at 125kHz, which can be susceptible to RF interference in industrial environments with heavy equipment or radio transmitters. If deployment includes metal detectors, induction heaters, or high-power industrial machinery, conduct site RF survey before final reader placement.
- 26-bit Wiegand exposes facility code and cardholder ID in plaintext — no encryption between credential and reader. For sensitive interior access, enforce secondary authentication at the Kantech controller level (PIN, time-based access rules, door groups) rather than relying on credential alone.
- Credential revocation is database-driven via Kantech access control software; no firmware push or reader re-configuration needed. Cardholder suspension takes effect immediately on next reader interrogation. Ensure your Kantech system has current cardholder records and that revocation workflows are tested before large-scale issuance.
- Minimum order quantity is 100 units per SKU. If your first deployment requires fewer credentials, negotiate a pilot batch with your Kantech channel partner or consider hybrid issuance (card + keytag mix) to optimize lead time and inventory.
The ASK116TK is the right choice for facilities rolling out rapid credential distribution, managing high cardholder turnover (contractors, seasonal staff, visitors), or refreshing legacy Wiegand infrastructure without controller or reader hardware replacement. For deeper product context and compatibility with your existing Kantech systems, consult the Kantech catalog.
