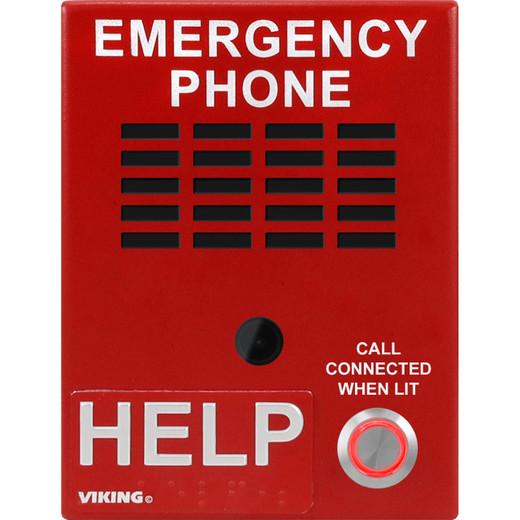

Viking IP Emergency Phone with HD Video Red Surface Mount - X-1605

Viking Electronics X-1605 IP Emergency Phone with HD Video

The Viking Electronics X-1605 is a SIP-compliant IP emergency phone with integrated 1080p HD video designed for demanding outdoor and industrial environments — elevator lobbies, parking structures, campus call stations, and any location where a hardwired call point needs to deliver both voice and visual evidence simultaneously. Built into a 16-gauge steel enclosure with a textured red powder-paint finish, this unit is engineered to survive -40°F winters and 140°F rooftop installations without modification. Unlike cloud-locked competitors, the X-1605 works with the IP-PBX or SIP trunk provider you already have — no forced subscriptions, no vendor-controlled infrastructure.

Overview

The X-1605 addresses a specific gap in emergency communication deployments: the need for a single, ruggedized surface-mount device that handles SIP voice, HD video capture, and extreme-environment operation without requiring proprietary hardware ecosystems. The red finish satisfies code visibility requirements at call stations, and the compact 5.25" × 4.0" × 2.0" footprint fits walls, posts, single-gang boxes, or standard 4" × 4" electrical junction boxes — reducing rough-in labor to whatever conduit and network cable infrastructure you already have in place.

On the video side, the OmniVision OV5645 sensor captures 1080p at 15 fps with a sensitivity rating of 680 mV/lux-second. The 6.35mm (0.25") fixed-focus lens delivers a 126° diagonal field of view — wide enough to frame the caller's face and immediate surroundings without a motorized adjustment, keeping the design mechanically simple and maintenance-free. Video is encoded in H.264 or MJPEG, so footage streams directly to any compatible NVR without transcoding overhead.

Key Features

• 1080p HD Video at 15 FPS: The OmniVision OV5645 sensor delivers full 1080p resolution — enough detail to identify faces, read badge numbers, or document an incident at the call point. At 15 fps the stream stays smooth for live monitoring while remaining manageable for continuous NVR recording.
• 126° Diagonal Field of View: The 6.35mm fixed lens covers a wide scene without requiring pan/tilt adjustment. For a wall-mounted call station, this means you capture the caller plus a meaningful portion of the surrounding area — useful for verifying whether a person is alone or under duress.
• 680 mV/lux-second Sensitivity: This sensitivity figure means the OV5645 performs well in low-ambient-light call stations — dim parking garages, poorly lit corridors — without requiring supplemental IR illumination in many installations. Pair with your NVR's low-light settings for best results.
• H.264 and MJPEG Encoding: H.264 reduces stream bandwidth and storage load versus MJPEG — important if you're recording continuously to a central network video recorder. MJPEG is available for VMS integrations that require it or for frame-by-frame forensic export workflows.
• SIP Compliant — No Cloud Lock-In: The X-1605 (often searched as X 1605) integrates with any SIP-compatible IP-PBX or SIP trunking service. You're not paying per-door subscription fees or routing emergency calls through a third-party server. On-premise call control stays on-premise.
• G.711u / G.711a / G.722 Audio Codecs: G.722 delivers wideband (HD) audio at 16 kHz — noticeably clearer than POTS-grade G.711 in a noisy outdoor environment. G.711u and G.711a ensure compatibility with legacy SIP gateways if your PBX doesn't negotiate G.722.
• -40°F to 140°F Operating Range: This spec matters in real deployments. Most SIP devices are rated to 32°F or 14°F at best — the X-1605's -40°F floor covers unheated parking structures, northern climates, and cold-storage facilities without auxiliary enclosure heating. The 140°F ceiling handles direct-sun rooftop installs.
• 16-Gauge Steel Enclosure: Commercial-grade construction resists vandalism and physical abuse at unsupervised call stations. The textured red powder coating is durable and color-stable, maintaining code-required visibility without repainting schedules.
• Flexible Mounting — Single Gang to 4"×4" Junction Box: The X-1605 mounts directly to walls, posts, single-gang electrical boxes, or 4" × 4" junction boxes. This flexibility means you can land on whatever rough-in box the electrical contractor installed without an adapter plate or custom bracket.

Integration & Compatibility

The X-1605 is SIP-compliant and works with any standards-based IP-PBX platform — Cisco, Avaya, Grandstream, 3CX, FreePBX, and similar. Viking maintains a compatibility list of verified IP-PBX systems and SIP service providers on their product page. On the video side, H.264 output is compatible with ONVIF-capable NVRs and most enterprise VMS platforms — confirm RTSP stream compatibility with your specific recorder during commissioning. Audio codec negotiation is automatic via SIP; G.722 wideband will be selected when the PBX supports it, falling back to G.711 otherwise.

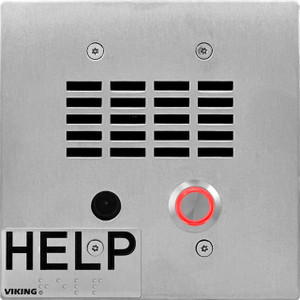

For deployments requiring programmable dialing — where the call station must automatically cycle through backup numbers on busy or no-answer — consider the X-1605-32 variant in the Viking X-1605 family, which adds programmable number storage and automatic failover dialing. The X-1605-32-EWP adds weatherproof construction to that feature set.

Explore the full Viking Electronics line for compatible intercoms, door controllers, and SIP-based access control products that pair with this unit in a unified voice and video deployment.

Frequently Asked Questions

Q: Does the X-1605 require a cloud subscription or proprietary server?

A: No. The X-1605 is SIP-compliant and works with any standard IP-PBX or SIP trunking service you choose. Viking explicitly positions this product as subscription-free — you select your own SIP and NVR solutions.

Q: What video resolution and frame rate does the X-1605 produce?

A: The X-1605 captures 1080p HD video at 15 frames per second using an OmniVision OV5645 image sensor. Video is encoded in H.264 or MJPEG.

Q: What is the field of view on the X-1605 camera?

A: The fixed 6.35mm (0.25") lens delivers a 126° diagonal field of view — wide enough to frame the caller and the immediate surrounding area from a wall-mounted position without any mechanical adjustment.

Q: Can the X-1605 operate in extreme cold or heat?

A: Yes. The X-1605 is rated for -40°F to 140°F (-40°C to 60°C) operating temperature and 5%–95% non-condensing humidity. This covers unheated outdoor enclosures, northern climate installations, and direct-sun rooftop mounting.

Q: What mounting options does the X-1605 support?

A: The unit mounts to walls, posts, single-gang electrical boxes, or standard 4" × 4" electrical junction boxes. Its 5.25" × 4.0" × 2.0" footprint fits most standard rough-in configurations.

Q: What SIP audio codecs does the X-1605 support?

A: The X-1605 supports G.711u (PCMU), G.711a (PCMA), and G.722 (wideband HD audio). G.722 delivers noticeably clearer voice quality in noisy environments when your PBX supports wideband negotiation.

Eden Phillips

The Viking Electronics X-1605 is one of the few SIP emergency phones I'd confidently spec into a northern-climate outdoor deployment without an auxiliary heater enclosure — the -40°F floor is real and tested, not a marketing footnote. The 1080p OmniVision OV5645 sensor at 680 mV/lux-second sensitivity is a meaningful differentiator versus older QVGA or VGA call station cameras that gave you barely enough resolution to confirm a person was standing there.

Technical Highlights:

• 126° Fixed FOV at 6.35mm: No motorized components to fail. In a wall-mount emergency phone application, a wide fixed lens is almost always the right call — you capture the full caller scene on the first frame without operator intervention.
• G.722 Wideband Audio: At 16 kHz sampling, G.722 is audibly clearer than G.711 in high-ambient-noise environments like parking garages or loading docks. If your PBX supports wideband, this codec alone justifies the upgrade from a POTS-based call station.
• H.264 + MJPEG Dual Codec: H.264 for live NVR recording keeps storage overhead low on continuous streams. MJPEG fallback means you're not locked out of VMS platforms that haven't implemented H.264 RTSP ingestion — a real-world integration issue on older enterprise systems.

Deployment Considerations:

• The 15 fps ceiling on 1080p is worth noting if your VMS operator expects fluid 30 fps playback — it reads as slightly choppy on fast motion. For a stationary call station scenario (person standing, pressing button, speaking), 15 fps is entirely sufficient for identification and documentation.
• Confirm SIP registration settings and codec negotiation with your PBX before mounting — the X-1605 is standards-compliant but SIP dial-plan configuration varies significantly between Cisco UCM, FreePBX, and hosted SIP trunks. Test audio path and video stream independently during commissioning.

This unit is a strong fit for university campus emergency call stations, transit authority platforms, and cold-climate parking structure deployments where the call point has to survive unattended year-round without a maintenance contract on the enclosure heater.
