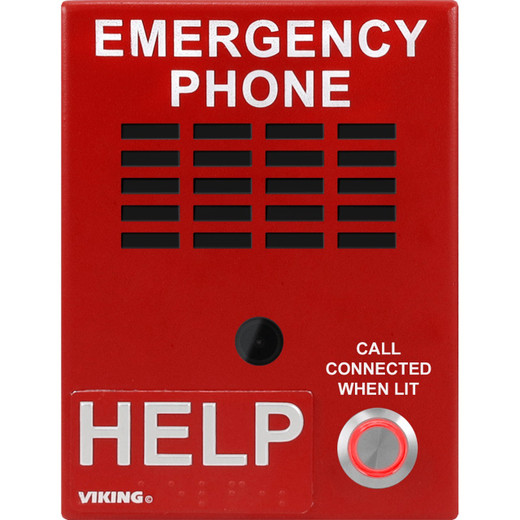

Viking X-1605 with Enhanced Weather Protection (EWP) - X-1605-EWP

Viking Electronics X-1605-EWP IP Emergency Phone with HD Video and Enhanced Weather Protection

Overview

The Viking Electronics X-1605-EWP is a SIP-compliant IP video emergency phone built for outdoor and harsh-environment deployments where you need reliable handsfree voice communication and HD video evidence in a single, weatherproof unit. Unlike cloud-locked emergency call systems, the X-1605-EWP works with your own Viking Electronics SIP solutions and NVR infrastructure — no forced subscriptions, no recurring service fees. The rugged 16-gauge steel enclosure with IP66-rated Enhanced Weather Protection (EWP) makes this unit viable in loading docks, parking structures, transit platforms, and building perimeters where standard indoor phones simply fail. X-1605-EWP (often searched as X 1605 EWP) fits into any IP emergency phone deployment running a standards-based SIP environment.

Key Features

• 1080p HD Video at 15 FPS: The OmniVision OV5645 sensor captures full 1080p resolution — enough detail to identify individuals at the call station. At 15 FPS, motion is smooth enough for real-time monitoring without taxing your NVR storage the way 30 FPS streams do.
• 126° Diagonal Field of View: The 6.35 mm fixed-focus lens covers a wide approach zone — useful at building entries and parking kiosks where callers approach from multiple angles. No motorized adjustments needed; aim the unit correctly at install and you're done.
• IP66 Enhanced Weather Protection: IP66 means sustained, high-pressure water jets and complete dust ingress protection won't compromise the unit. It handles driving rain and windblown debris — appropriate for exposed outdoor call stations. If your site sees full submersion risk, IP66 is not sufficient; plan for a sheltered mounting location.
• H.264 and MJPEG Compression: H.264 keeps bandwidth and storage costs manageable for 24/7 recording compared to uncompressed streams. MJPEG is available for VMS integrations that require it or for forensic still-frame extraction workflows.
• 90 dB SPL Speaker at 1 Meter: High output means the unit is audible in noisy environments — traffic areas, loading docks, mechanical rooms — without requiring an external amplifier.
• SIP Compliance with Backup Number Cycling: The phone dials programmable numbers and automatically cycles through backups on busy or no-answer — critical for life-safety applications where a single point of call failure is unacceptable.
• 16-Gauge Steel Enclosure: Heavier gauge than typical call station housings. The textured red powder paint finish is both a visual safety marker and a corrosion barrier for outdoor installations.
• Flexible Mounting Options: Surface mounts to walls, posts, single gang boxes, or 4″ × 4″ electrical junction boxes — covers most field conditions without custom fabrication. See surface mount enclosures for compatible back boxes.

Integration and Compatibility

The X-1605-EWP integrates with any SIP-compliant IP-PBX or VoIP service. Video streams in H.264 or MJPEG are compatible with most ONVIF-capable NVR platforms. Because Viking imposes no proprietary cloud requirement, the unit slots into existing on-premise security and communications infrastructure. Operating range of -40°F to 140°F (-40°C to 60°C) covers virtually all North American outdoor environments year-round.

Frequently Asked Questions

Q: Does the X-1605-EWP require a cloud subscription or proprietary service?

A: No. The X-1605-EWP is SIP-compliant and works with your own IP-PBX or VoIP service. There are no forced cloud services or subscriptions.

Q: What is the video resolution and frame rate?

A: The X-1605-EWP records and streams at 1080p resolution at 15 frames per second using the OmniVision OV5645 image sensor.

Q: What weather rating does the EWP model carry?

A: The Enhanced Weather Protection (EWP) variant is rated IP66, providing complete dust protection and resistance to high-pressure water jets from any direction.

Q: What compression formats does the X-1605-EWP support?

A: H.264 and MJPEG are both supported, giving you compatibility with most NVR platforms and VMS integrations.

Q: What mounting options are available?

A: The unit surface mounts to walls, posts, single gang boxes, or standard 4″ × 4″ electrical junction boxes.

Q: What happens if the primary emergency call number is busy or unanswered?

A: The X-1605-EWP automatically cycles through programmable backup numbers if the primary line is busy or does not answer.

Eden Phillips

The X-1605-EWP sits in a narrow product category where most integrators are forced to choose between a SIP phone and a camera — Viking Electronics combined both in a 16-gauge steel package rated to -40°F. The 126° diagonal field of view from the 6.35 mm fixed lens is wide enough to capture the full approach zone at most call station locations without needing a separate wide-angle camera overhead.

Technical Highlights:

• 1080p @ 15 FPS (OmniVision OV5645): Sufficient resolution for identity-level detail at a call station; 15 FPS keeps stream bandwidth lean enough that most SIP environments won't need a dedicated video VLAN for a single unit.
• IP66 EWP Rating: Sustained high-pressure wash-down and full dust ingress protection — relevant for transit platforms and covered parking decks where cleaning crews use pressure washers near call stations.
• H.264 + MJPEG dual codec: H.264 for continuous NVR recording; MJPEG fallback for VMS platforms that pull still frames for incident documentation. Both are available simultaneously depending on your platform's stream configuration.

Deployment Considerations:

• The unit mounts to a standard 4″ × 4″ electrical junction box, which simplifies rough-in on new construction; on retrofit installs, confirm your existing back box dimensions before ordering.
• At 15 FPS, fast lateral movement at close range will show some motion blur in recorded video — position the camera to capture subjects facing the unit rather than passing perpendicular to it.

The X-1605-EWP is the right call for transit authority platforms, university blue-light station replacements, and parking structure entrances where a single conduit run needs to carry both the emergency call and HD video back to dispatch — with no third-party cloud dependency in the path.
