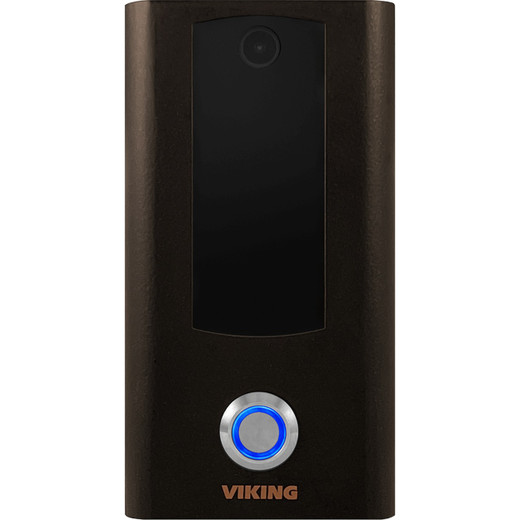

Viking X-205-BN with Enhanced Weather Protection (EWP) - X-205-BN-EWP

Viking Electronics X-205-BN-EWP Compact IP Video Intercom with Enhanced Weather Protection

Overview

The Viking Electronics X-205-BN-EWP is a SIP-compliant IP video intercom built for outdoor entry points where precipitation, condensation, and temperature extremes are daily realities. The EWP (Enhanced Weather Protection) variant of the X-205-BN-EWP handles humidity up to 100% and operates from -40°F to 140°F (-40°C to 60°C) — a real working range that covers everything from unheated parking garages in Minnesota winters to sun-exposed entry vestibules in desert climates. The 304 stainless steel faceplate with oil rubbed bronze powder paint finish gives it the durability and appearance expected in commercial entry applications without requiring a separate protective housing.

Key Features

• 1080p SIP Video Calling: H.264 and MJPEG encoding up to 1080p means the door-side video feed integrates directly into your SIP-based phone system or video management platform — no proprietary app or controller required. The NVR-separate architecture means you can record independently of the call path.
• 126° Wide Viewing Angle: A 126° field of view captures the full entry area, including visitors standing off-center or to the side of the door — useful at ADA-accessible entry points and wide vestibule approaches where a narrow lens would miss lateral movement.
• PoE Class 1 (<4W): Drawing under 4 watts via 802.3af PoE, the X-205-BN-EWP is one of the lightest loads you can put on a PoE switch port. A single 15.4W 802.3af port powers it comfortably — no PoE+ budget concerns, no injector needed.
• On-Board 2 Amp Relay Contacts: The integrated relay handles door strike or mag-lock activation directly, eliminating a separate relay module. At 2A, it covers the majority of electric strikes used in commercial access control without additional hardware.
• G.711u/a and G.722 Audio Codecs: G.722 wideband audio delivers noticeably clearer two-way voice than the narrowband G.711 fallback — important for noisy loading dock or lobby environments where intelligibility matters for access decisions.
• Enhanced Weather Protection (EWP) to 100% Humidity: The EWP rating is not just splash resistance — it is designed to survive condensation-heavy environments such as covered but unheated entryways, cold-storage facility entries, and coastal installations where salt air and moisture ingress are ongoing concerns.
• Remote Web UI Programming: All dial plan configuration and programming is handled through a built-in web interface, meaning you can provision or update the unit without a site visit — relevant for multi-site deployments managed centrally.
• Gel-Filled Butt Connectors for Field Wiring: The five included gel-filled butt connectors make weatherproof terminations for the RJ45 run without requiring additional weatherproofing kits — a small but practical detail that speeds outdoor installations.

Integration and Compatibility

The X-205-BN-EWP is built on SIP 2.0 (RFC3261), which makes it compatible with most enterprise SIP PBX platforms, SIP-capable access control systems, and softphone clients. The 1000BASE-T Ethernet interface (IEEE 802.3af PoE) ensures it connects cleanly to standard managed PoE switches. For IP intercom deployments pairing with access control, the on-board relay handles the door strike leg, and the SIP trunk handles the call leg — no proprietary middleware required. If your installation requires structured cabling reference, review our PoE switch selection for switch-side power budget planning. The X-205-BN-EWP also supports separate NVR recording via its video output, making it compatible with existing NVR infrastructure without requiring a dedicated intercom recording server. For related Viking Electronics intercoms and accessories, the full product line covers indoor, vandal-resistant, and multi-button entry configurations. Integrators planning outdoor entry systems should also review our access control category for compatible door hardware.

Frequently Asked Questions

Q: What weather rating does the X-205-BN-EWP carry?

A: The EWP (Enhanced Weather Protection) version is rated for humidity up to 100% and an operating temperature range of -40°F to 140°F (-40°C to 60°C), making it suitable for outdoor installations exposed to precipitation and condensation.

Q: Does the X-205-BN-EWP require a separate power supply?

A: No. It is powered via PoE Class 1 (IEEE 802.3af) and draws under 4 watts — any standard 802.3af PoE switch port will power it. No injector or external power supply is needed.

Q: What SIP standard does the X-205-BN-EWP follow?

A: The unit is SIP 2.0 RFC3261 compliant, compatible with standard enterprise SIP PBX systems and SIP-capable access control platforms.

Q: Can the X-205-BN-EWP trigger a door strike directly?

A: Yes. On-board 2 Amp relay contacts are provided for activating door strikes or mag-locks directly, without requiring a separate relay module.

Q: What video codecs and resolution does the X-205-BN-EWP support?

A: It supports H.264 and MJPEG encoding at resolutions up to 1080p, with SIP video calling to compatible endpoints or VMS platforms.

Q: How is the X-205-BN-EWP programmed and configured?

A: Configuration is done through a built-in web UI, allowing remote programming of dial plans and settings without requiring a site visit or proprietary software client.

Karl Wilson

The X-205-BN-EWP is the unit I reach for when an integrator needs a single-cable outdoor entry solution that handles both the intercom call and door release without adding controller hardware. The PoE Class 1 draw — under 4 watts — means you are not burning a PoE+ budget on a door phone, and the 802.3af requirement is universal enough that it drops into virtually any existing switch infrastructure.

Technical Highlights:

• EWP to 100% Humidity: Most outdoor intercoms are rated for rain; this one is rated for condensation saturation — relevant for cold-storage entries and covered but unheated vestibules where moisture migrates inside standard enclosures.
• -40°F to 140°F Operating Range: Genuine cold-climate and high-heat range; this is not a ±32°F indoor spec stretched to outdoor marketing. It covers northern Canada winters and sun-baked southwestern facility entries without supplemental heating or cooling.
• On-Board 2A Relay: Eliminates the relay module line item. At 2A, it handles the overwhelming majority of commercial electric strikes — only high-current mag-locks near 3A+ need an external relay driver.

Deployment Considerations:

• Mounting surfaces include walls, posts, or single-gang electrical boxes — plan your rough-in to the single-gang box option if you want the cleanest flush install; surface mounting to post or wall requires attention to conduit entry for the RJ45 run in exposed locations.
• The unit's video is SIP video, not RTSP stream-only — confirm your VMS or recording platform supports SIP video ingest or plan a separate NVR path, which the spec sheet explicitly calls out as supported.

This unit is the right call for controlled-access facility entries — cold-storage warehouses, utility buildings, and multi-tenant commercial entries — where you need documented video of every entry event, a direct door-strike trigger, and hardware that won't fail in the first hard winter.
